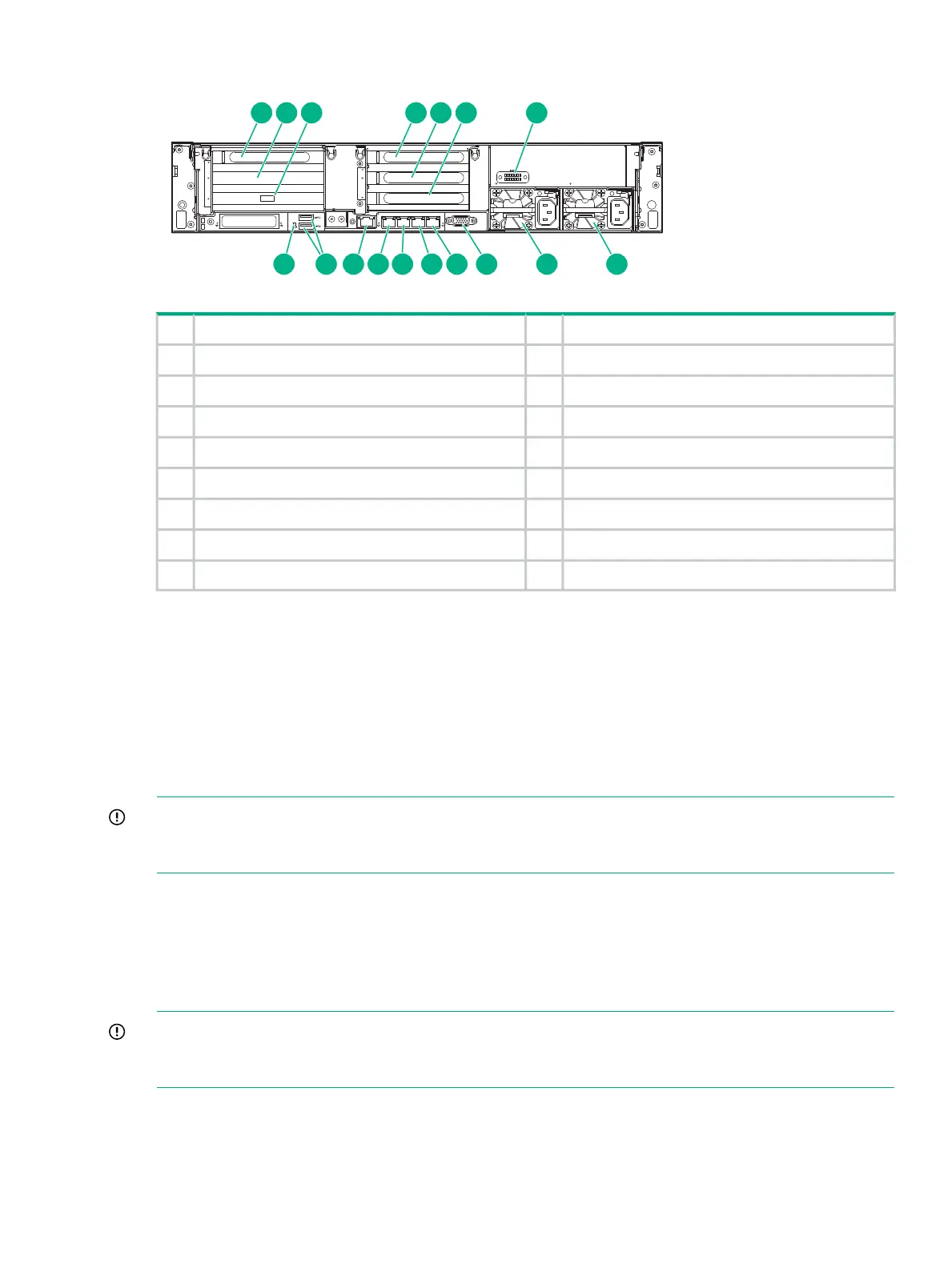

Figure 14 StoreOnce 3500 Series rear view
1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
1 2 3 4 5 6 7
891011121314151617
Slot 2, SAS expander card2Slot 1, available for Optional Hardware1
Slot 4, available for Optional Hardware4Slot 3, RAID controller card3
Slot 6, available for Optional Hardware6Slot 5, available for Optional Hardware5
Power supply 1 (PS1)8Optional serial port7
Video connector10Power supply 2 (PS2)9
1Gb RJ45 Port 3121Gb RJ45 Port 411
1Gb RJ45 Port 1 (eth0)141Gb RJ45 Port 213
USB connectors16iLO4 connector15
Rear UID LED17
StoreOnce 5100 System
Storage expansion
The StoreOnce 5100 System supports capacity expansion. Up to five Capacity Upgrade Kits
may be added to the base configuration. These are factory configured and will have a label in
the format: JBOD # for <server_warranty_number>. The Capacity Upgrade Kits must be connected
to the correct StoreOnce 5100 System in the recommended sequence. If they are not, the
StoreOnce 5100 System will not be able to discover the storage and make it available for use.
IMPORTANT: Refer to the HPE StoreOnce 5100 48TB Capacity Upgrade Kit Guide for detailed
instructions about installing and configuring Capacity Upgrade Kits both at initial installation and
at a later date.
Optional hardware
The StoreOnce 5100 System provides four PCIe slots for the addition of StoreOnce 10 GbE or
10 GbE-T Network Cards or StoreOnce 8Gb Fibre Channel cards. These additional PCIe cards
may be pre-installed or supplied in separate boxes. Some cards also require SFP+ transceivers,
which will be supplied with the kit.
IMPORTANT: Refer to the StoreOnce 10 GbE Network Card and StoreOnce Fibre Channel
Card Installation and Configuration Guide for detailed instructions about installing and cabling
optional PCIe cards and make sure the correct SFP+ transceivers are fitted, if required.
StoreOnce 5100 System 57
