Front and rear views

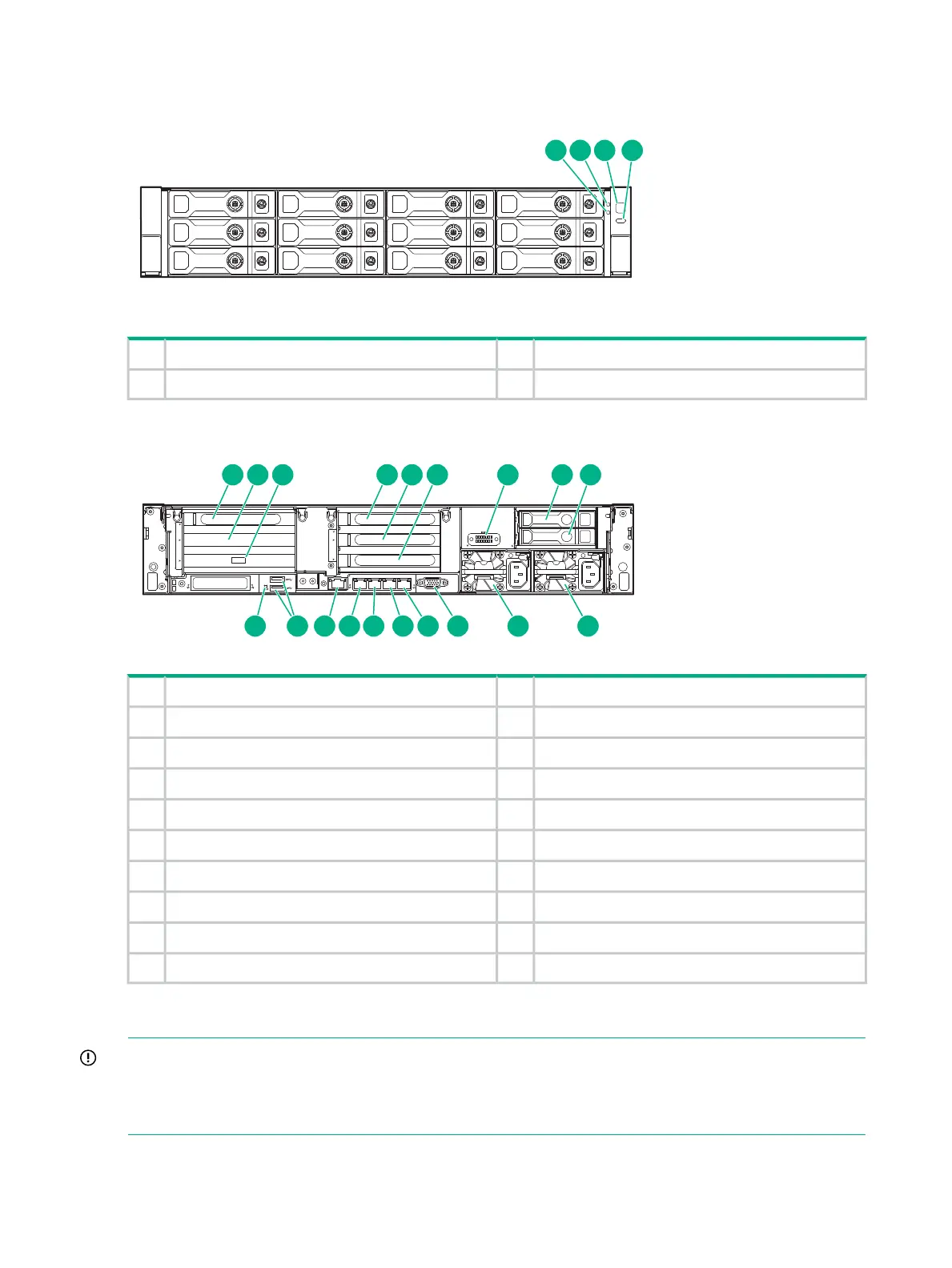

Figure 15 StoreOnce 5100 System front view
Health LED2NIC status LED1
UID button LED4Power on/standby button and system power LED3
Figure 16 StoreOnce 5100 System rear view
1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
1 2 3 4 5 6 7 8 9
10111213141516171819
Slot 2, SAS expander card2Slot 1, available for Optional Hardware1
Slot 4, available for Optional Hardware4Slot 3, RAID controller card3
Slot 6, available for Optional Hardware6Slot 5, available for Optional Hardware5
OS drive 18Optional serial port7
Power supply 1 (PS1)10OS drive 29
Video connector12Power supply 2 (PS2)11
1Gb RJ45 Port 3141Gb RJ45 Port 413
1Gb RJ45 Port 1 (eth0)161Gb RJ45 Port 215
USB connectors18iLO4 connector17
Rear UID LED19
StoreOnce 5100 System with Capacity Expansion
IMPORTANT: For ease of installation HPE recommends daisy chaining Capacity Upgrade
Kits so that all enclosures are either above or below the head server. The supplied SAS cable
supports this configuration. Different length SAS cables (up to a maximum of 2 m) are available,
but these must be ordered separately.
58 Hardware overview reference section
