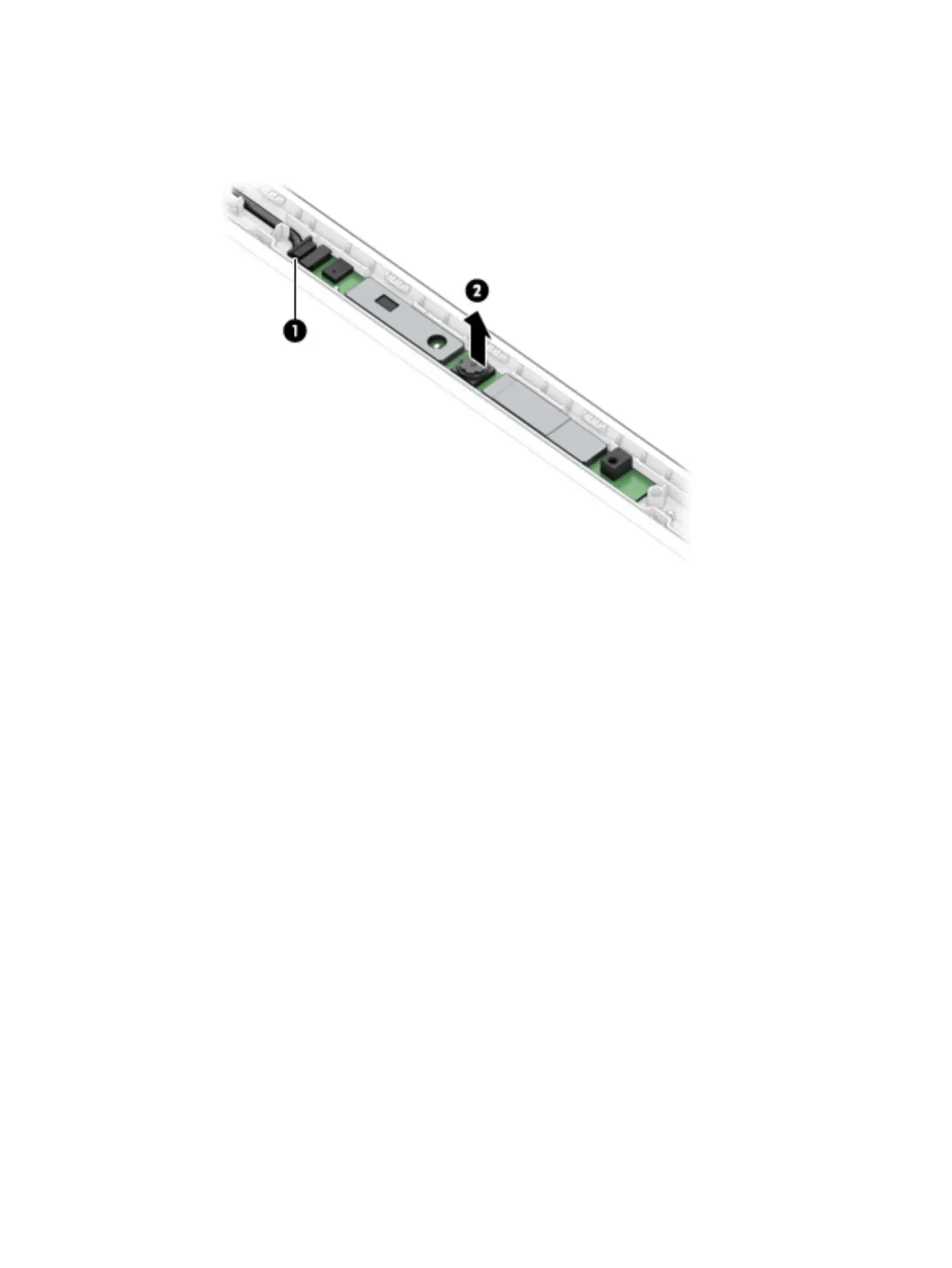

b. Detach the camera/microphone module from the display back cover (2). The camera/microphone
module is attached to the display back cover with double-sided adhesive.
The camera/microphone module is available as spare part number L44439-001.
11. If it is necessary to replace the display panel:
a. Remove the four Phillips M2.0 × 2.5 screws (1) that secure the display panel to the display back
cover.
40 Chapter 5 Removal and replacement procedures for authorized service provider parts
