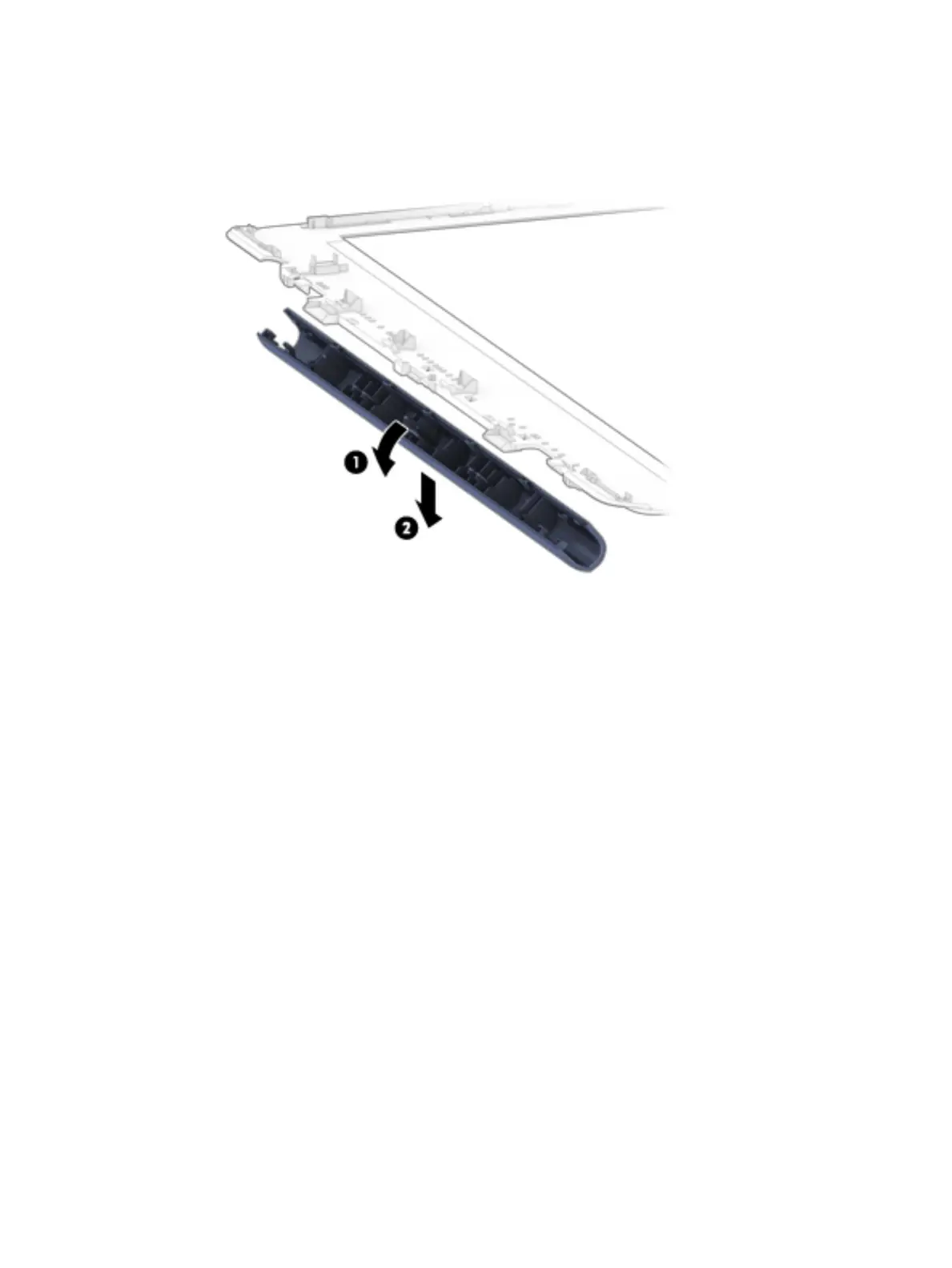

9. If it is necessary to remove the hinge cover, rotate the cover downward (1), and then remove it from the
display enclosure (2).
Hinge covers are available as spare part number L44468-001 for royal blue models, L44469-001 for
diamond white models, and L44470-001 for rose pink models.
10. If it is necessary to replace the camera/microphone module:
a. Disconnect the cable (1) from the camera/microphone module.
Component replacement procedures 39
