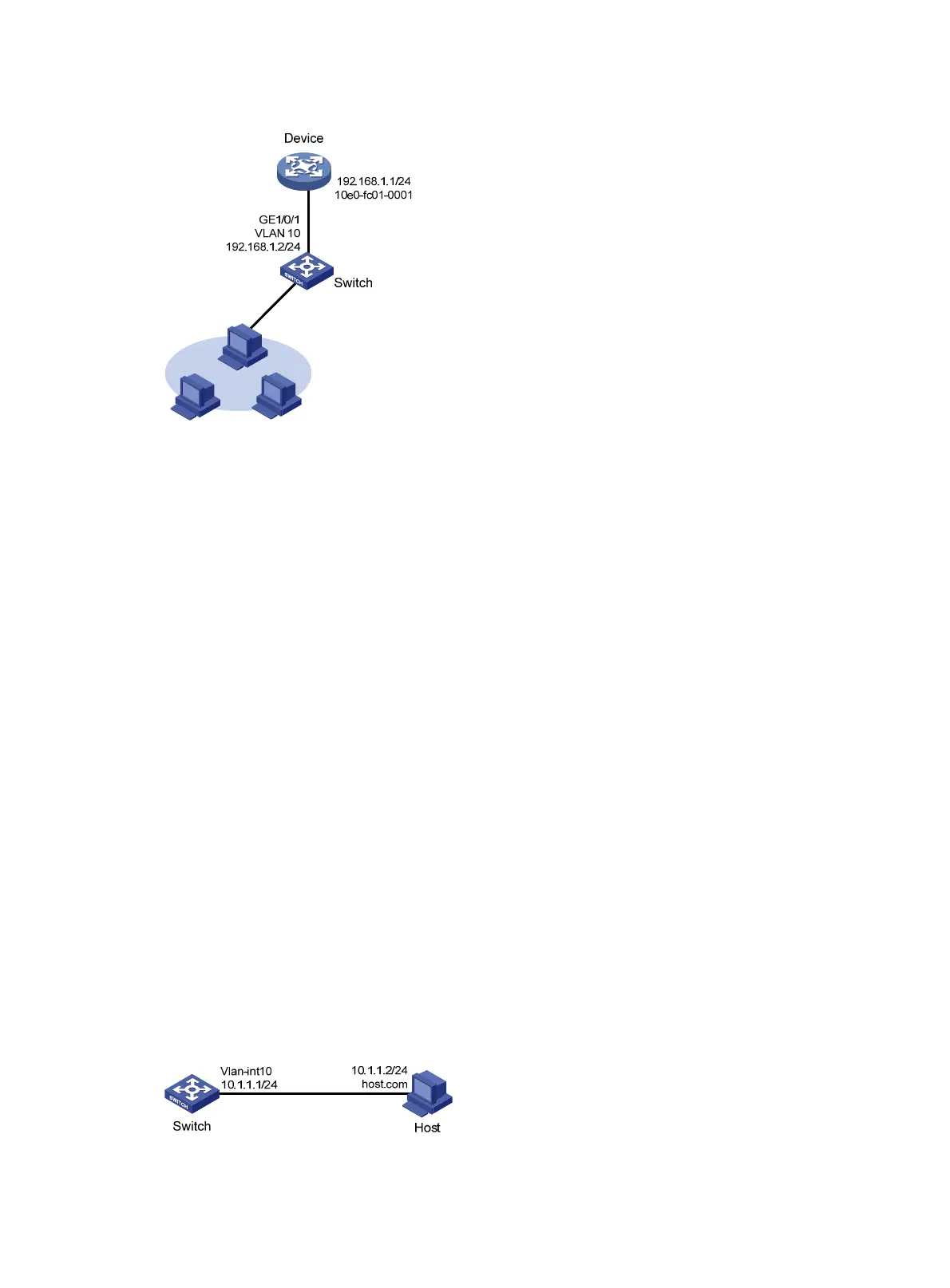

Figure 25 Network diagram
Configuration procedure
1. Configure the VLAN and the VLAN interface:
a. From the navigation tree, select Network > Links > VLAN.
b. Create VLAN 10.
c. Access the details page for VLAN 10 to perform the following tasks:
− Add GigabitEthernet 1/0/1 to the tagged port list.
− Create VLAN-interface 10.
− Assign the IP address 192.168.1.2/24 to VLAN-interface 10.
2. Configure the static ARP entry:
a. From the navigation tree, select Network > IP > ARP.
b. Access the page for adding a static ARP entry to perform the following tasks:
− Configure the IP as 192.168.1.1.
− Configure the MAC address as 10-e0-fc-01-00-01.
− Configure VLAN 10 for the entry.
− Select GigabitEthernet 1/0/1 for the entry.
Verifying the configuration
# Verify that the static ARP entry is successfully added. (Details not shown.)
Static DNS configuration example
Network requirements
As shown in Figure 26, configure a static DNS entry on the device, so the device can use the domain
name host.com to access the host at 10.1.1.2.
Figure 26 Network diagram
