2. Configure an IPv6 address for VLAN-interface 10:
a. From the navigation tree, select Network > IPv6 > IPv6.
b. Access the details page for VLAN-interface 10 to perform the following tasks:
− Configure the IPv6 address of the interface as 2001::.
− Set the prefix length to 64.
− Select the EUI-64 type.
Verifying the configuration
# Verify that the IPv6 addresses of the VLAN-interface:
• The IPv6 global unicast address is 2001::5EDD:70FF:FEB1:86D0.
• A link-local IPv6 address FE80::5EDD:70FF:FEB1:86D0 is automatically generated for the
interface.
ND configuration example
Network requirements
As shown in Figure 30, configure IPv6 ND to meet the following requirements:
• VLAN-interface 10 on Switch B sends RA messages to advertise its address prefix.
• VLAN-interface 10 on Switch A generates an IPv6 global unicast addresses through stateless
address autoconfiguration.

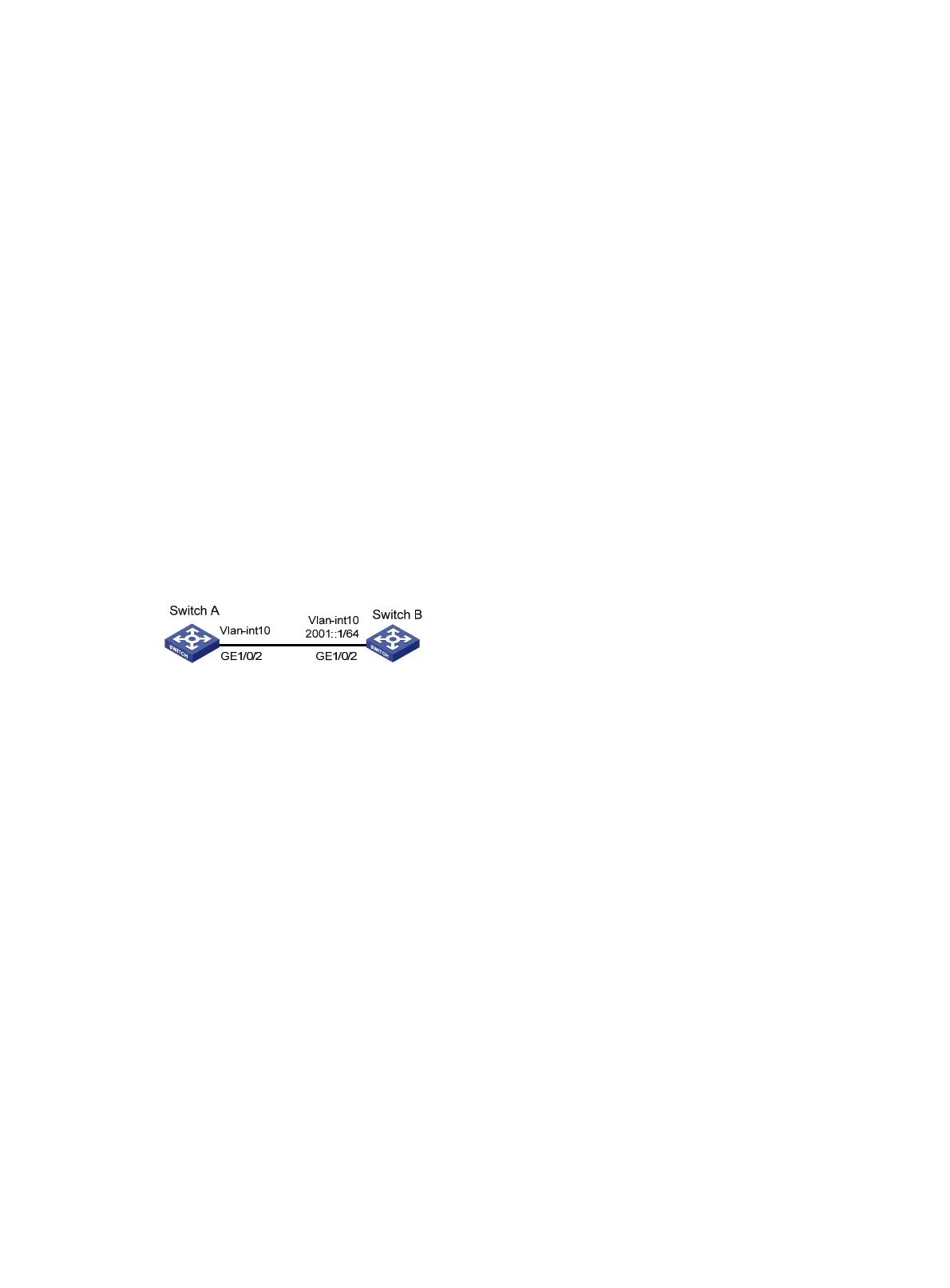

Figure 30 Network diagram
Configuration procedure
1. Configure Switch B:
a. From the navigation tree, select Network > Links > VLAN.
b. Create VLAN 10.
c. Access the details page for VLAN 10 to perform the following tasks:
− Add GigabitEthernet 1/0/2 to the tagged port list.
− Create VLAN-interface 10.
− Assign the IP address 2001::1/64 to VLAN-interface 10.
d. From the navigation tree, select Network > IPv6 > ND.
e. On the advanced settings page, add an RA prefix:
− Select the interface VLAN-interface 10.
− Configure the prefix address as 2001::1.
− Set the prefix length to 64.
− Set the valid lifetime to 2592000 seconds.
− Set the preferred lifetime to 604800 seconds.
− Select the stateless autoconfiguration method.
f. On the advanced settings page, modify the RA settings:
− Suppress the interface from advertising RA messages.
− Set the maximum interval to 600 seconds for sending RA messages.
