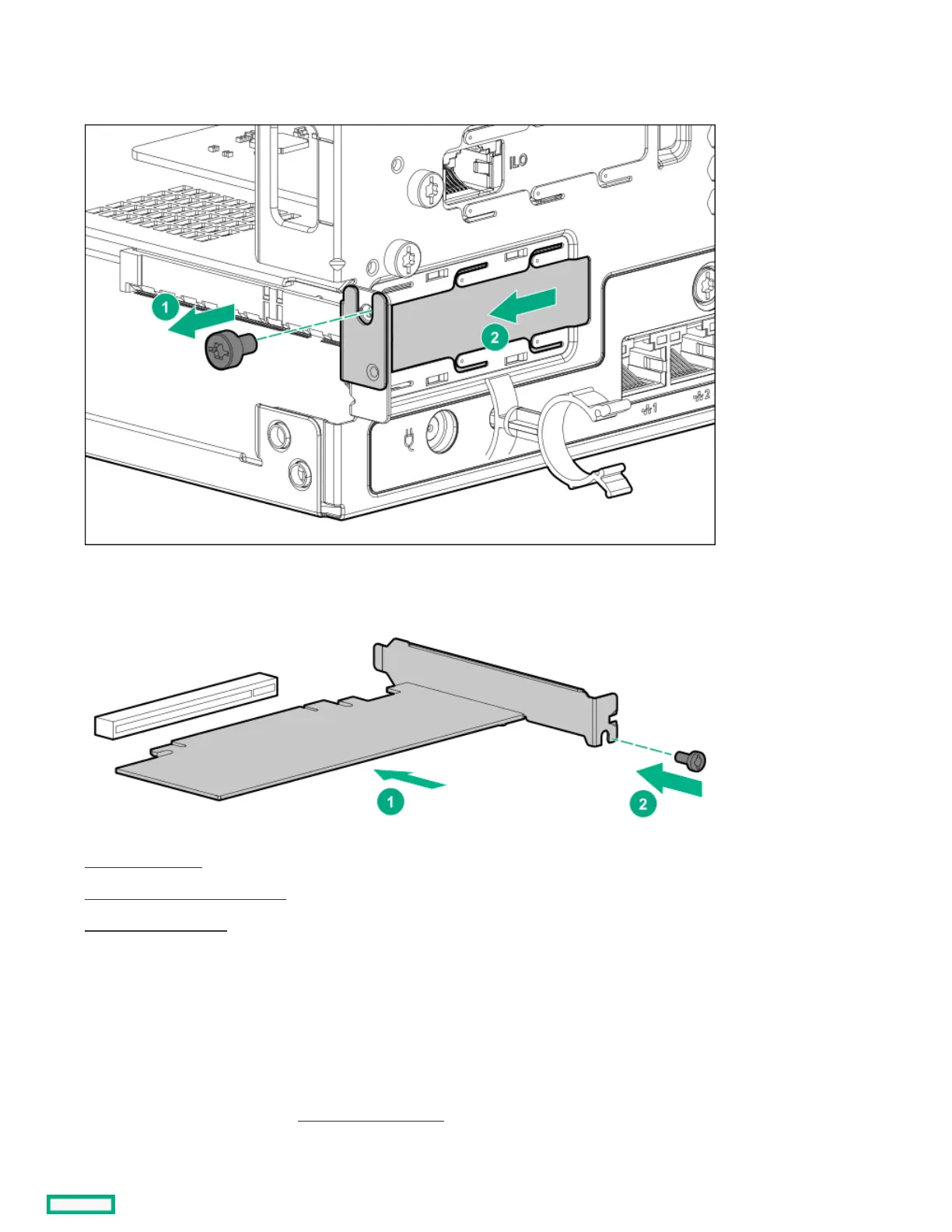

10. Remove the expansion slot blank.
Retain the blank for future use.
11. Install the storage controller. Make sure that the storage controller is firmly seated in the slot.
12. Cable the controller .
13. Install the system board assembly .
14. Install the chassis cover .
15. If removed, install the security padlock and/or the Kensington security lock.
For more information, see the lock documentation.
16. Connect all peripheral cables to the server.
17. Connect the power adapter to the server, and then secure the power adapter cord in the power cord clamp.
18. Connect the power cord to the AC source.
19. To configure the controller, see the relevant controller guide.
ResultsResults
The installation is complete.
