Removal and replacement procedures 25
b.

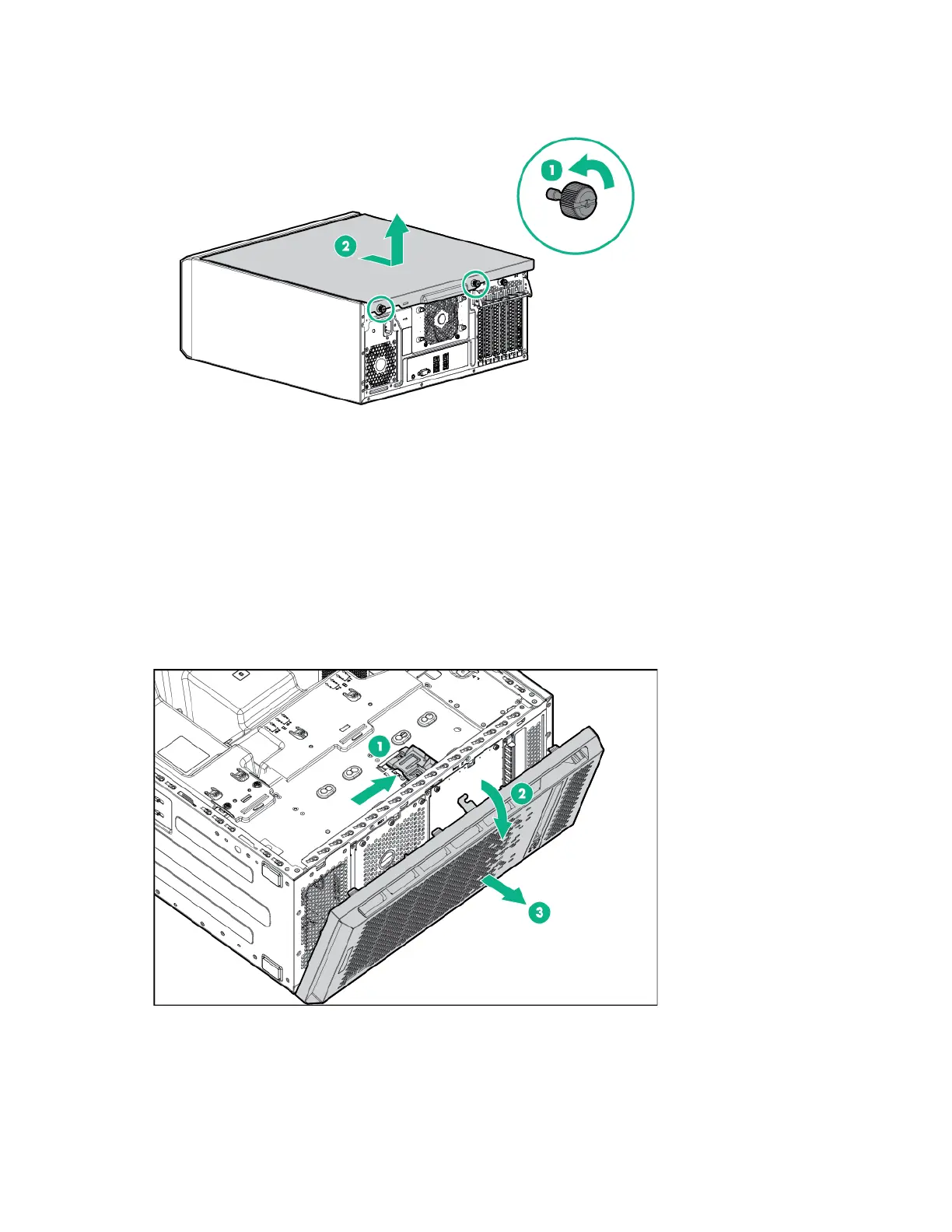

Slide and remove the access panel from the server.
Remove the front bezel
1. Power down the server (on page 24).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 24).
5. Unlock the internal locker. Then open and remove the front bezel.
Remove the PCI air baffle
1. Power down the server (on page 24).
2. Remove all power:
