Component identification 80
To force the system to invoke the NMI handler and generate a crash dump log, do one of the following:
• Use the iLO Virtual NMI feature.
• Short the NMI header ("System board components" on page 78).
For more information, see the Hewlett Packard Enterprise website (
http://www.hpe.com/support/NMI-
CrashDump).

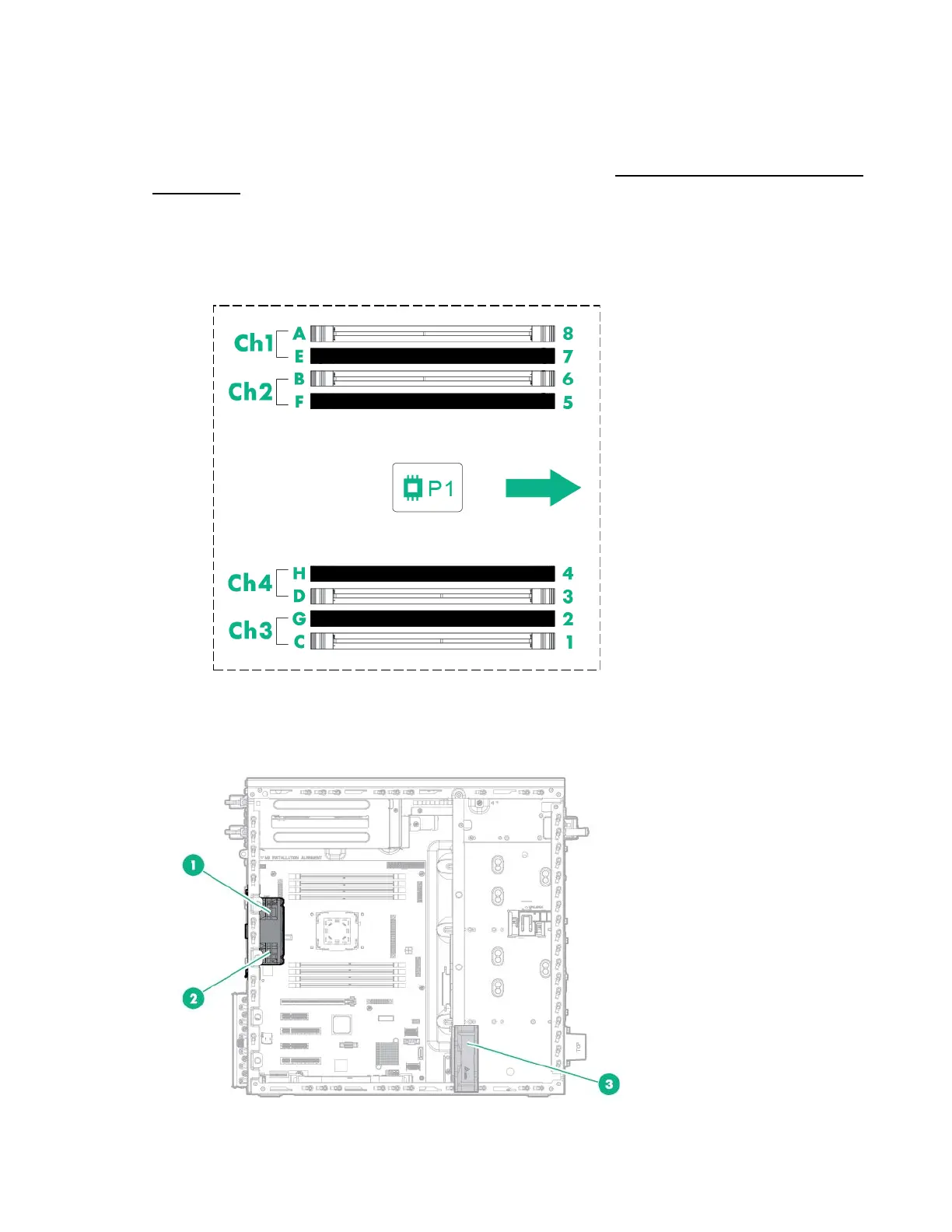

DIMM slot locations
DIMM slots are numbered sequentially (1 through 8) for the processor. The supported AMP modes use
the letter assignments for population guidelines.
The arrow points to the front of the server.
Fan locations
