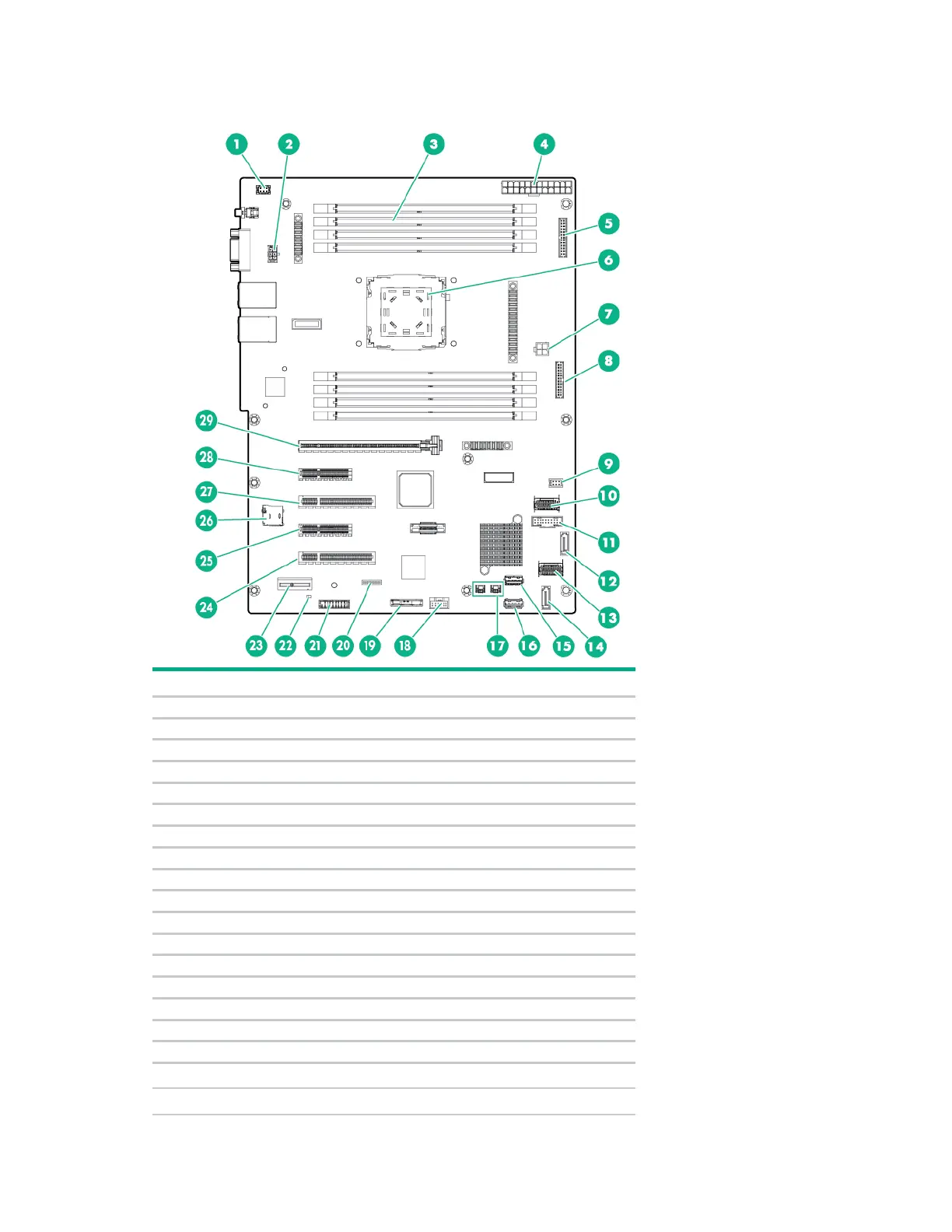

System board components
Item Description
1
Fan connector 3
2
Fan connector 2
3
DIMM slots
4
24-pin power supply connector
5
RPSU connector
6
Processor
7
4-pin power supply connector
8
Front I/O connector
9
Fan connector 1
10
Mini-SAS connector 1
11
Front USB 3.0 connector
12
SATA connector 2 (for M.2 SSD 2)
13
Mini-SAS connector 2
14
SATA connector 1 (for M.2 SSD 1 or optical drive)
15
Internal USB 3.0 connector
16
Internal USB 2.0 connector
17
Storage backup power connector
18
Smart Storage Battery connector
19
System battery
