To remove the component:
1. Power down the server (on page 24).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 24).
5. If installed, remove the PCI air baffle (on page 25).
6. Remove the system air baffle (on page 26).

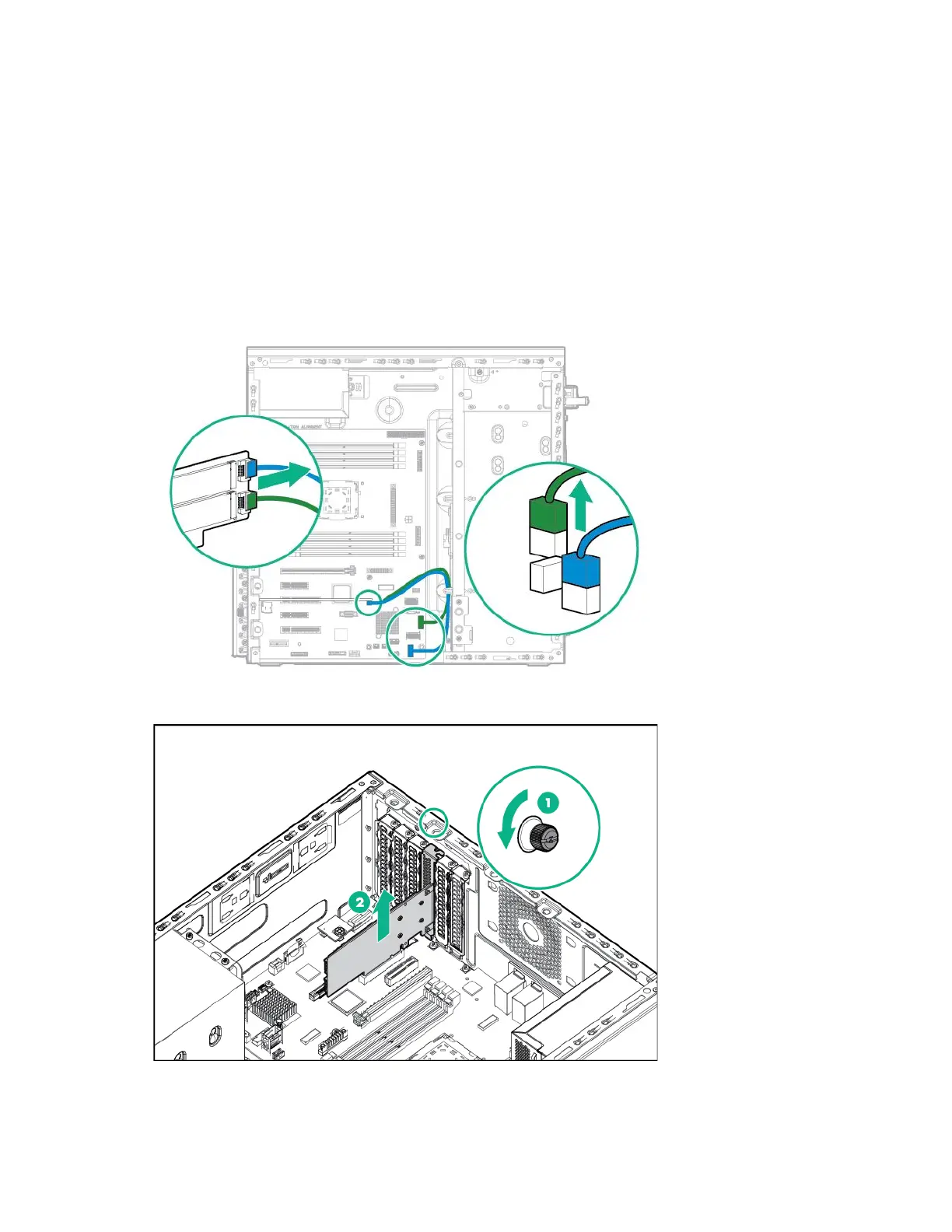

7. Disconnect the SATA cables from the enablement board. Disconnect the other end of the SATA
cables from the system board.
8. Open the PCIe slot cover retainer and remove the M.2 SSD enablement board with SSD modules
installed.
To replace the component, reverse the removal procedure.
