HPE ProLiant ML110 Gen9

Removal and replacement procedures 52

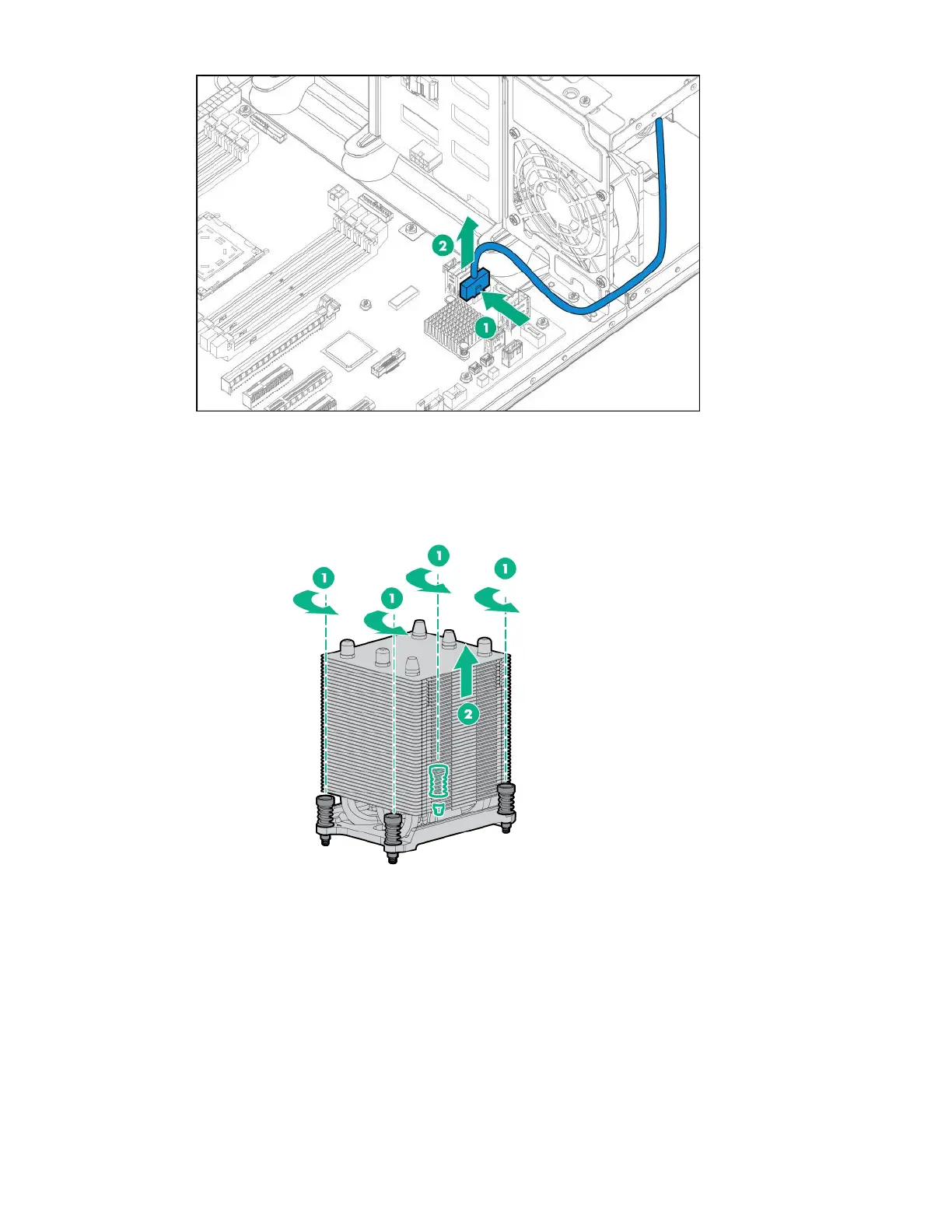

12. Remove the heatsink:
a. Loosen one pair of diagonally opposite screws halfway, and then loosen the other pair of
screws.
b. Completely loosen all screws in the same sequence.
c. Remove the heatsink from the processor backplate.
