Operations 31

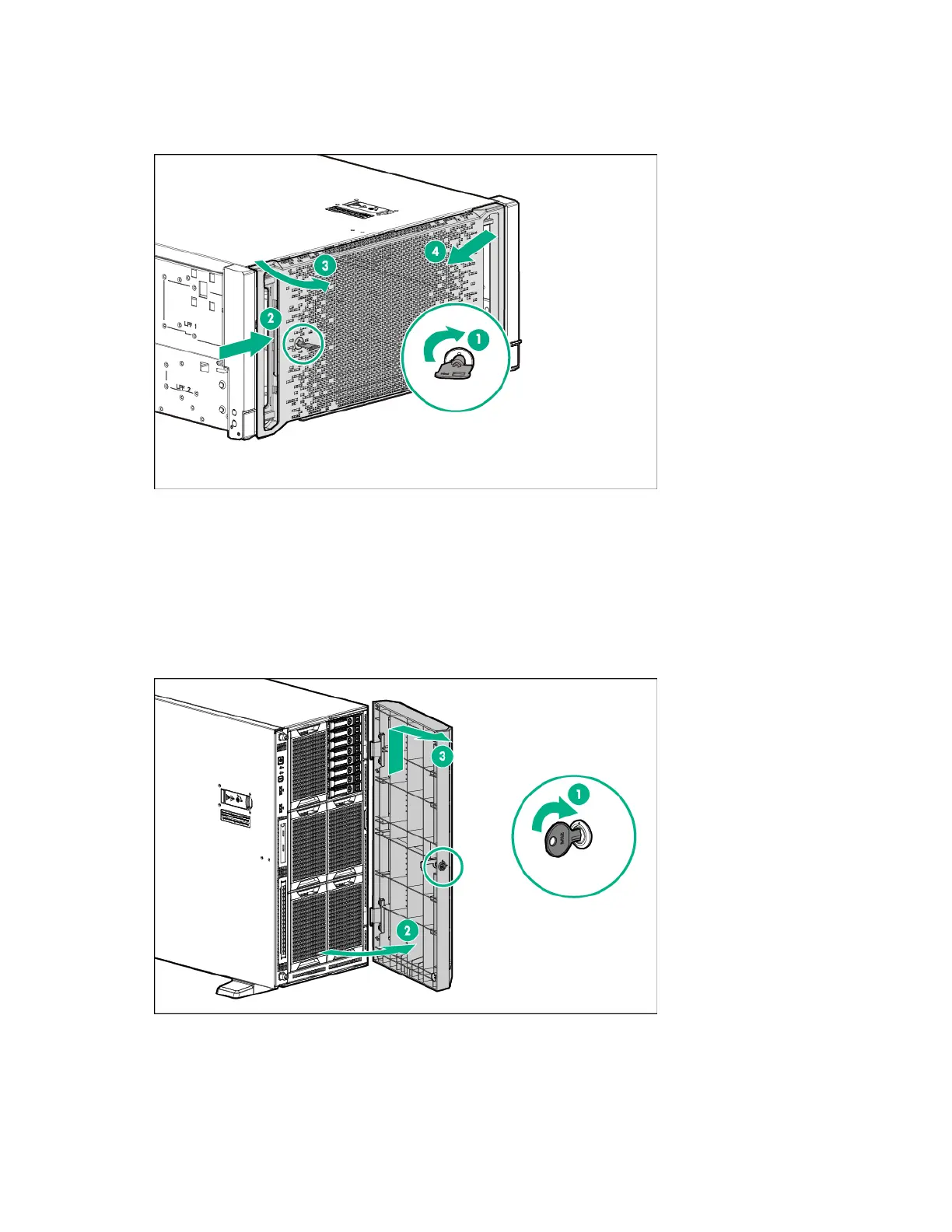

Remove the security bezel (optional)
Unlock the security bezel, press the latch on the security bezel, and then remove the security bezel.
Remove the tower bezel
The tower configuration server has a removable bezel that must be unlocked and opened before
accessing the drives. The bezel must be kept closed during normal server operations.
1. Using the key provided with the server, unlock the bezel with a clockwise turn.
2. Open the bezel.
3. Detach the bezel from the hinges to completely remove it from the server.
Install the tower bezel
1. Insert the bezel.
