HPE Synergy 12000 Frame

Item Description Function
4 Power LED Indicates power to the appliance module.
• O — No power. Verify that the appliance module is fully inserted
into the frame link module.
• Flashing amber — The appliance module is initializing.
• Solid amber — The appliance module is powered o.
• Solid green — The appliance module is powered on.
5 Reset button Using an applicator such as a paper clip, press the recessed button to
reset the appliance module.
• Press and release — Resets the appliance module.
• Press and hold until activity LED is flashing green — Initiates
reimaging of the appliance module from files on the USB flash drive
plugged into the appliance module.
6 USB port USB 20/30 port for connecting a USB drive to flash a USB recovery
image.

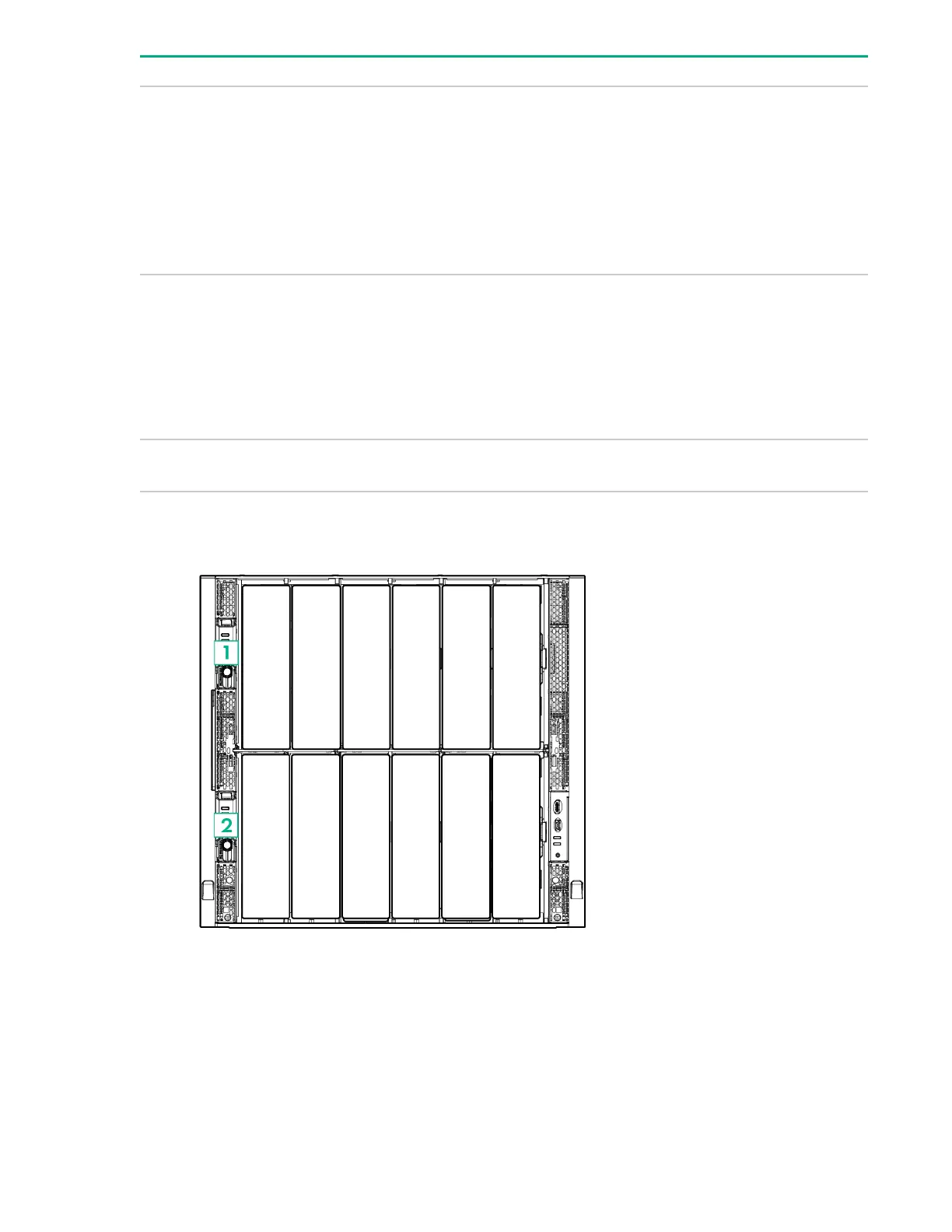

Appliance bay numbering
20 Component and LED identification
