hpmont HD30 Series Manual

Shenzhen Hpmont Technology Co., Ltd Chapter 3 Mechanical Installation
HD30 Series Inverters User Manual ―15―
3.5 Display Panel Installation and Dismantle
According to the direction of the Figure 3-3, press the display panel until hear a “click” sound. Do
not install the display panel from other directions or it will cause poor contact.

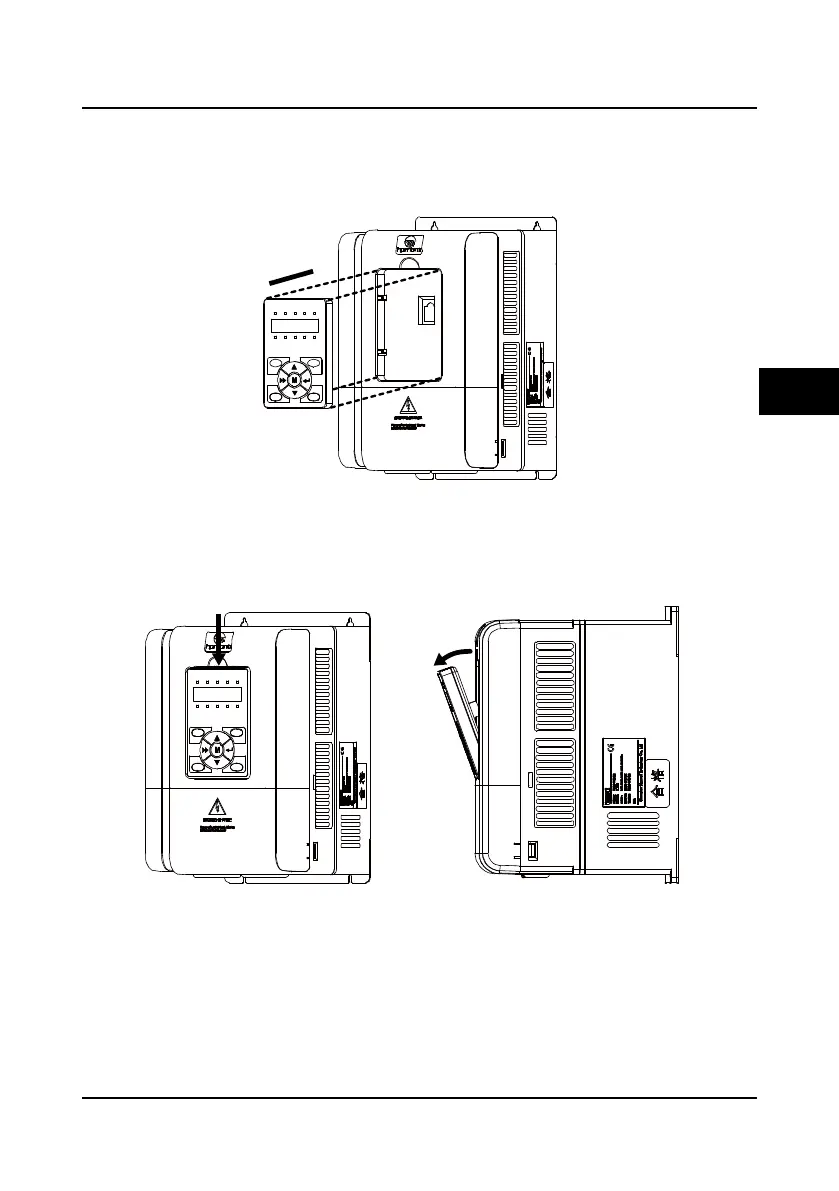

Figure 3-3 Installation of the display panel
There are two steps in Figure 3-4.
First, press the hook of the display panel according to the direction 1.
Second, take out of the display panel according to the direction 2.
Figure 3-4 Dismantle of the display panel
A V
RP M %
Hz
FW D RE V AL M LO /R E LO C K
ENT
JOG
PRG
RUN
STOP
SHF
A V
RP M %
Hz
FW D RE V AL M LO /R E LO C K
ENT
JOG
PRG
RUN
STOP
SH F
1
2
3
