hpmont HD30 Series Manual

Shenzhen Hpmont Technology Co., Ltd Chapter 4 Electrical Installation
HD30 Series Inverters User Manual ―29―
4.5.4 Control Terminal Connection

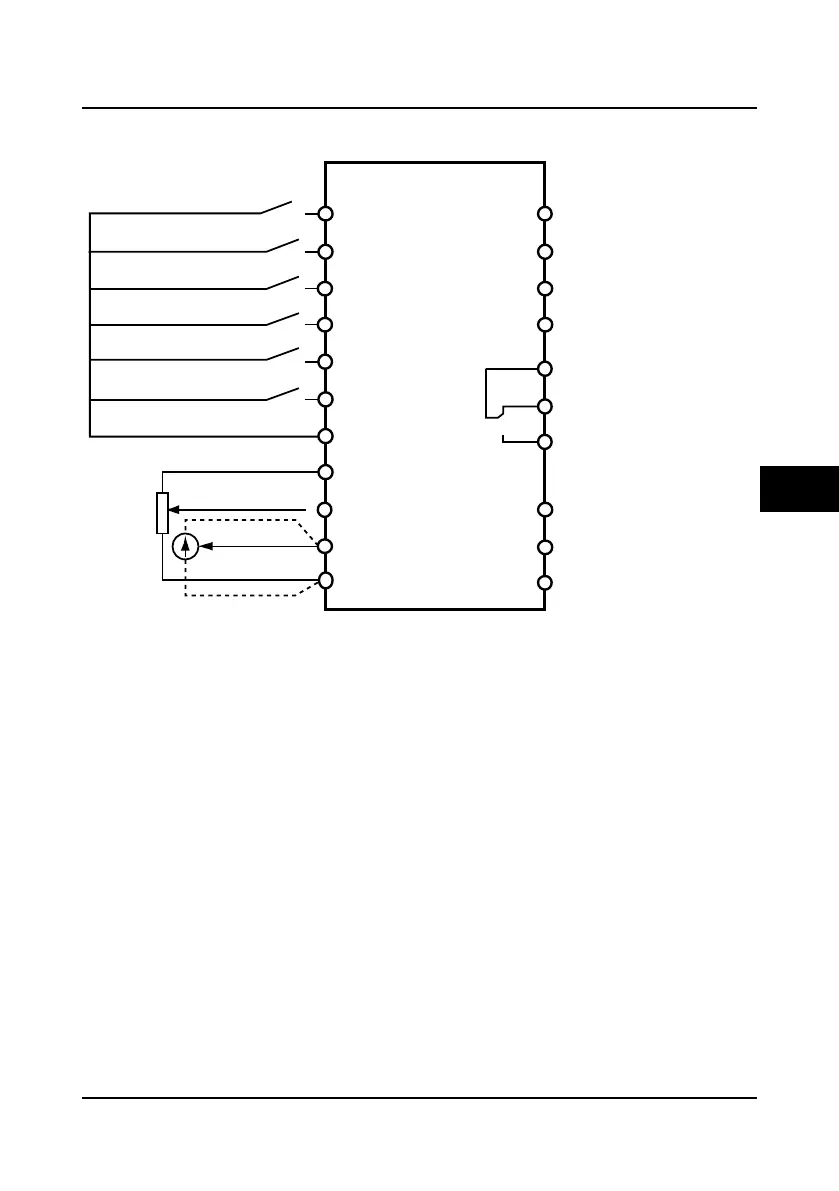

Figure 4-15 HD30 control circuit connection diagram
DI1
DO2
DO1
CME
R1A
R1C
R1B
DO1 reference ground
GND
AO1
AO2
DI2
DI3
DI4
DI5
DI6
COM
AI1
AI2
10V
HD30
GND
COM
DO2 reference ground
Multi-function input terminal 1
Multi-function input terminal 2
Multi-function input terminal 3
Multi-function input terminal 4
Multi-function input terminal 6
Multi-function input terminal 5
Digital ground
Analogue input 1
Analogue input 2
Analogue ground
Analogue ground
Analogue output channel 2
Analogue output channel 1
Programmable relay output
Programmable open-collector
output channel 1
Programmable open-collector
output cha
nnel 2
4
