Shenzhen Hpmont Technology Co., Ltd Chapter 6 Function Introduction
HD30 Series Inverters User Manual ―57―
No. Name Description Range
factory setting
• The current setting frequency value will be replaced by a new one when the value of the F00.13
has be changed by the parameter setting.
Units: Frequency setting save selection at power outage
• 0: Frequency setting will not be saved at power outage.
• 1: Frequency setting will be saved to F00.13 at power outage.
Tens: Frequency setting control selection at stop
• 0: Frequency setting will not be restored to F00.13 at stop.
• 1: Frequency setting will be restored to F00.13 at stop.
Jog operation frequency digital setting 1
F00.16 Interval of jog operation 0.0
100.0s
0.0

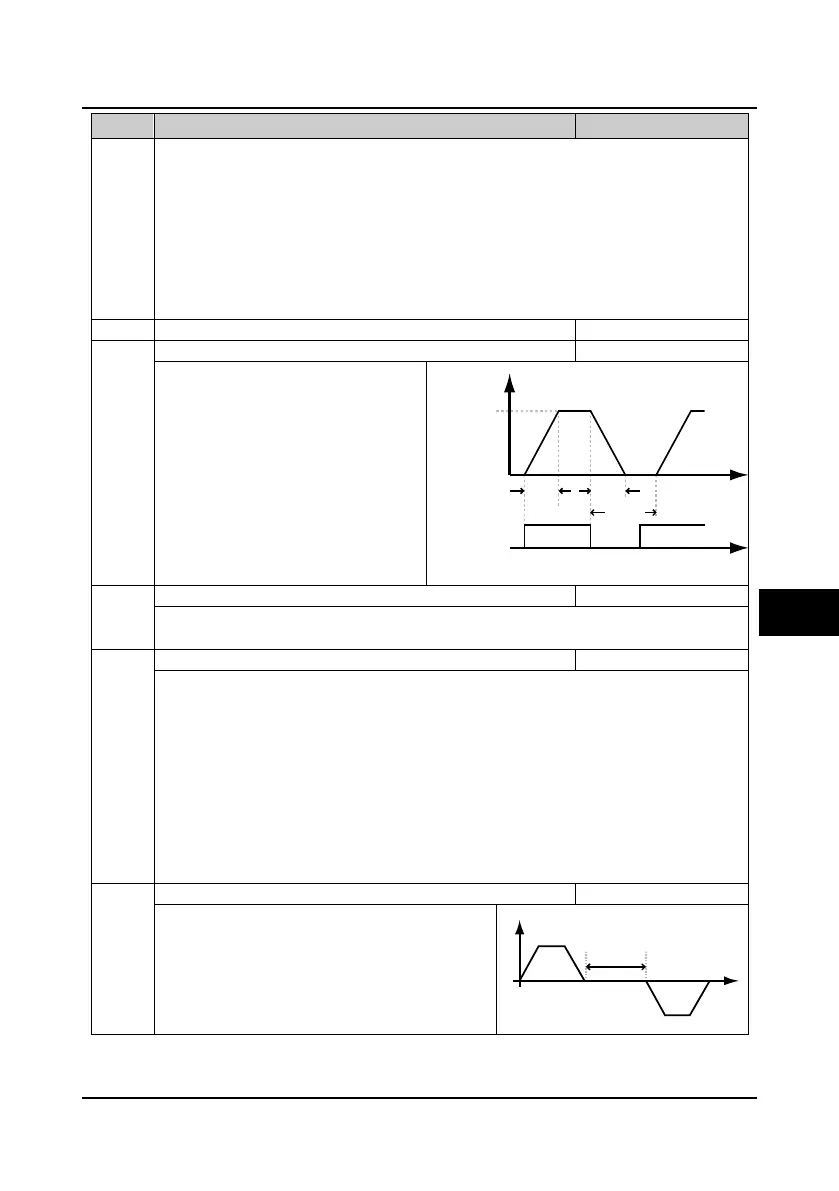

After cancel the jog command, the inverter
will not respond to the jog command at the
interval of jog operation set by F00.16.
• After the interval of jog is completed, it
immediately execute the arrived jog
command. As show in figure.
• The function of starting frequency, DC
braking, speed tracking is disabled at the
jog operation.
Operation direction selection
0: The same as run command.
1: Opposite to run command.
F00.18 Anti-reverse operation 0,1
0
This function will be valid when F00.11 = 0,1,2.
0: Reverse operation is permitted.
1: Reverse operation is prohibitted. Only forward operation is permitted when F00.18=1.
• F00.18 = 1, reverse operation command is disabled if the inverter is in stop status; In running
status, the inverter will stop according to the stop mode set by F02.13 when receive reverse
operation command.
• F00.18 = 1, when the analogue value is set to positive/negative voltage and the negative
voltage corresponding to the reverse frequency, the inverter will stop according to the stop
mode set by F02.13.
• F00.18 = 1, when the simple PLC operation arrives to the time set by reverse direction, the
inverter will stop according to the stop mode set by F02.13.
F00.19 Dead time of direction switch 0.0
3600.0s
0.0
F00.19 defines the dead time of direction switch, namely,
the time of zero-frequency output in the process of
direction switch shown as the right figure.
Jog command
Frequency
Time
F00.16
Acc. Dec.
Jog operation
frequency
Time
Forward
Reverse
F00.19
Time
Frequency
0
6
