8 Replacing components
108
HSD S.p.A. © - 0108h02a.fm100713
8.4.8 Gauge kit for adjusting sensors HSK S1 and S4

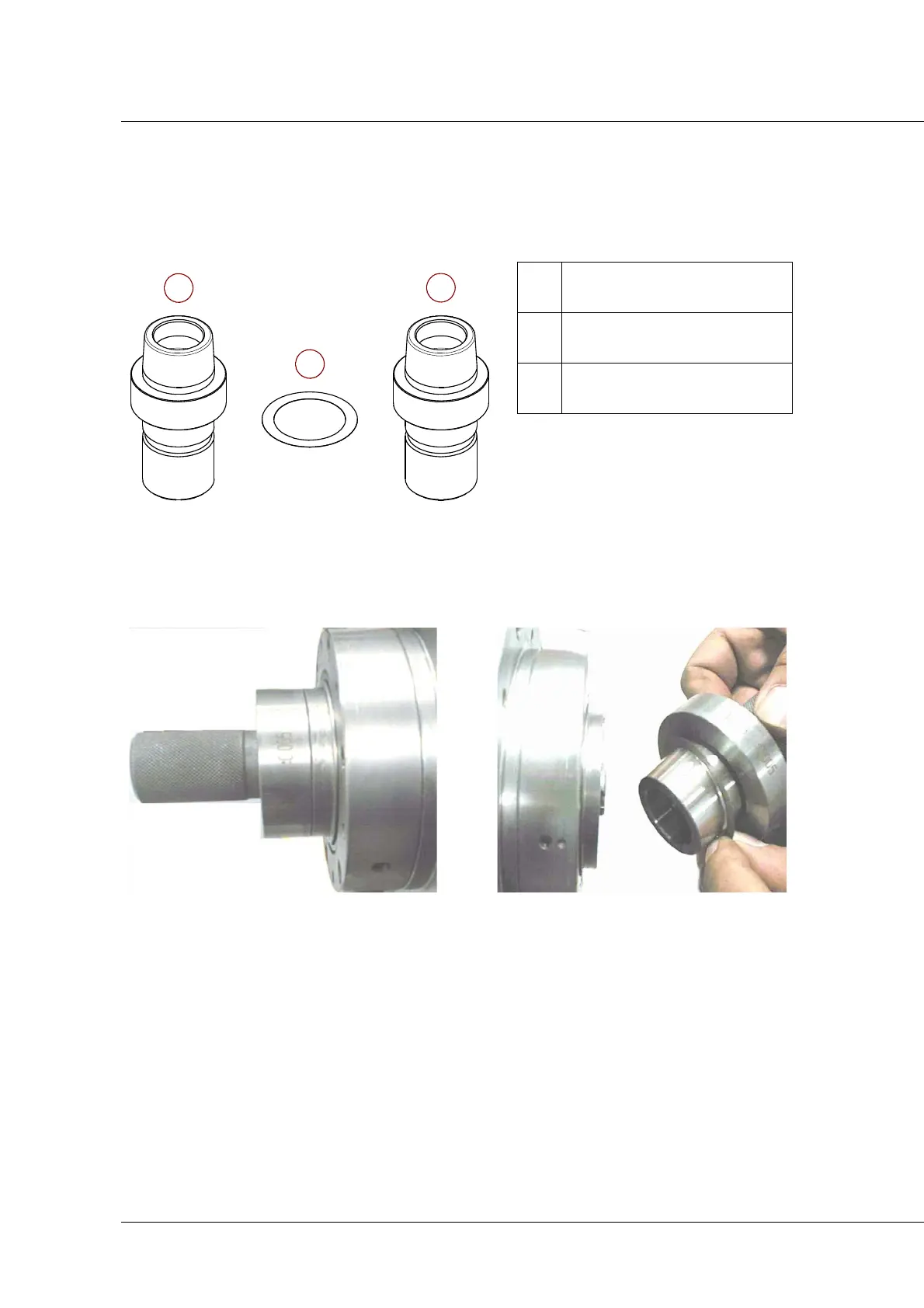

Figure 24: kit H3811H0402 for adjusting sensors S1 and S4 HSK - E40 -F50
Use of the gauges allows the immediate positioning of collet HSK at the position at which the
sensors are regulated, thus allowing not only faster but also more precise calibration, given that
the gauges have been manufactured to tighter tolerances with respect to normal tool holders.
Even though it is possible to adjust sensors without using the kit (as described in the preceding
paragraphs), the manufacturer highly recommends the use of the kit, given the importance of
ensuring accurate calibration of the sensors for safety reasons.
The gauges and spacers described in figure 25 and 26 are identified by their thicknesses
engraved on the surface or listed on the label of the pack.
1
Gauge for regulating sensor S1
(11.56 mm)
2
Gauge for regulating sensor S4
(11.32 mm)
3
Thickness 0.04mm.
Figure 25: the use of the gauge as a normal tool
holder, with or without spacer inserted
Figure 26: position of the spacer between the stop
surfaces of the gauge and spindle shaft
