EASYTEST-COMBI519
EN - 100
EXAMPLE OF SEPARATION TEST BETWEEN ELECTRICAL CIRCUITS
Insulation or safety transformer
separating the circuits
TEST BETWEEN ACTIVE PARTS
Connect an instrument probe to
one of the two conductors of the
separated circuit and the other to
one of the conductors of a non-
separated circuit.
TEST BETWEEN ACTIVE PARTS
AND EARTH
Connect an instrument probe to
one of the two conductors of the
separated circuit and the other to
the equalizing potential node. This
test must be performed for SELV
circuits or circuits with electrical
separation only.
Equalizing potential node

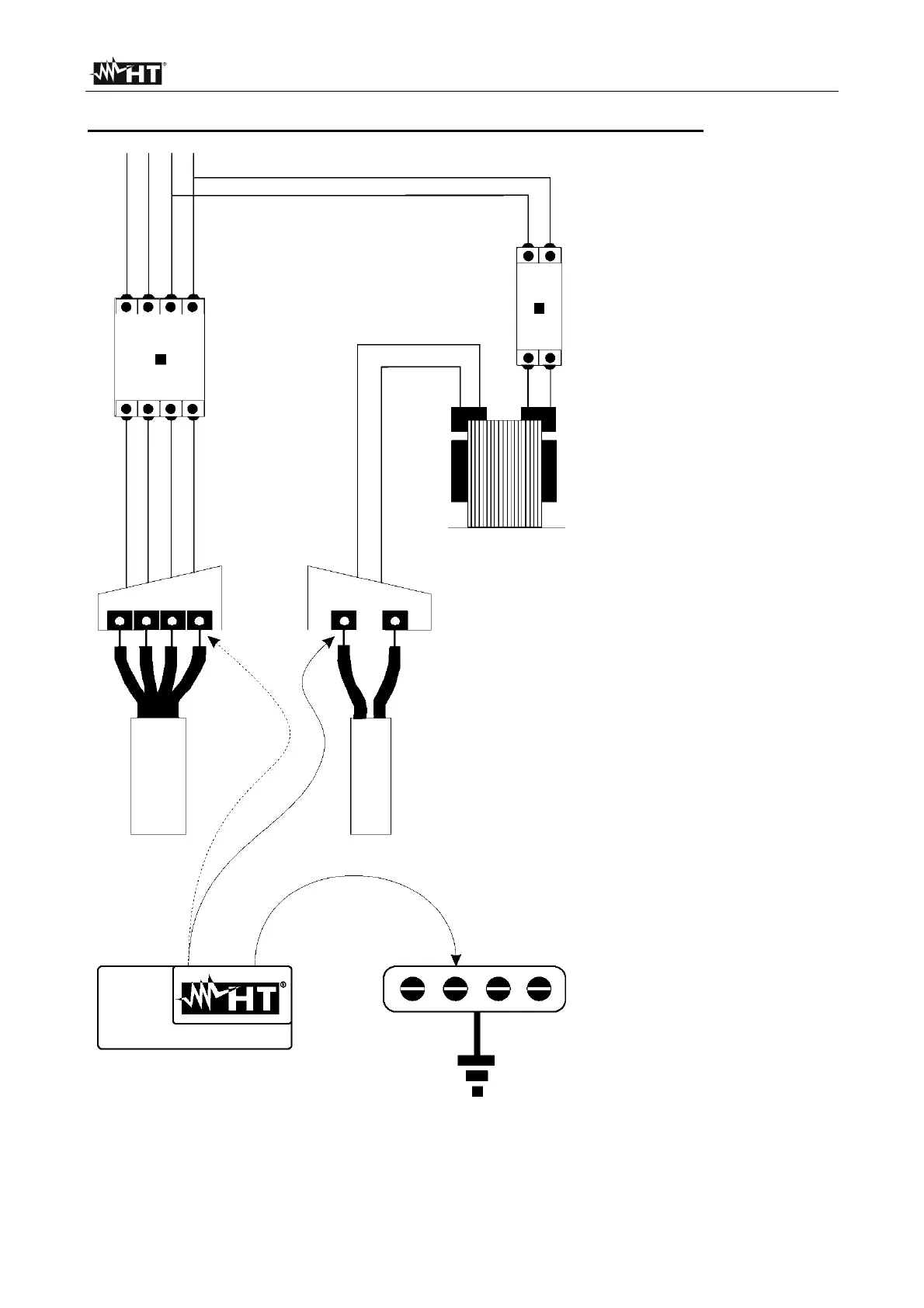

Fig. 36: Separation measurements between the circuits of a system
