HT EASYTEST COMBI519 - Page 52

EASYTEST-COMBI519
EN - 52

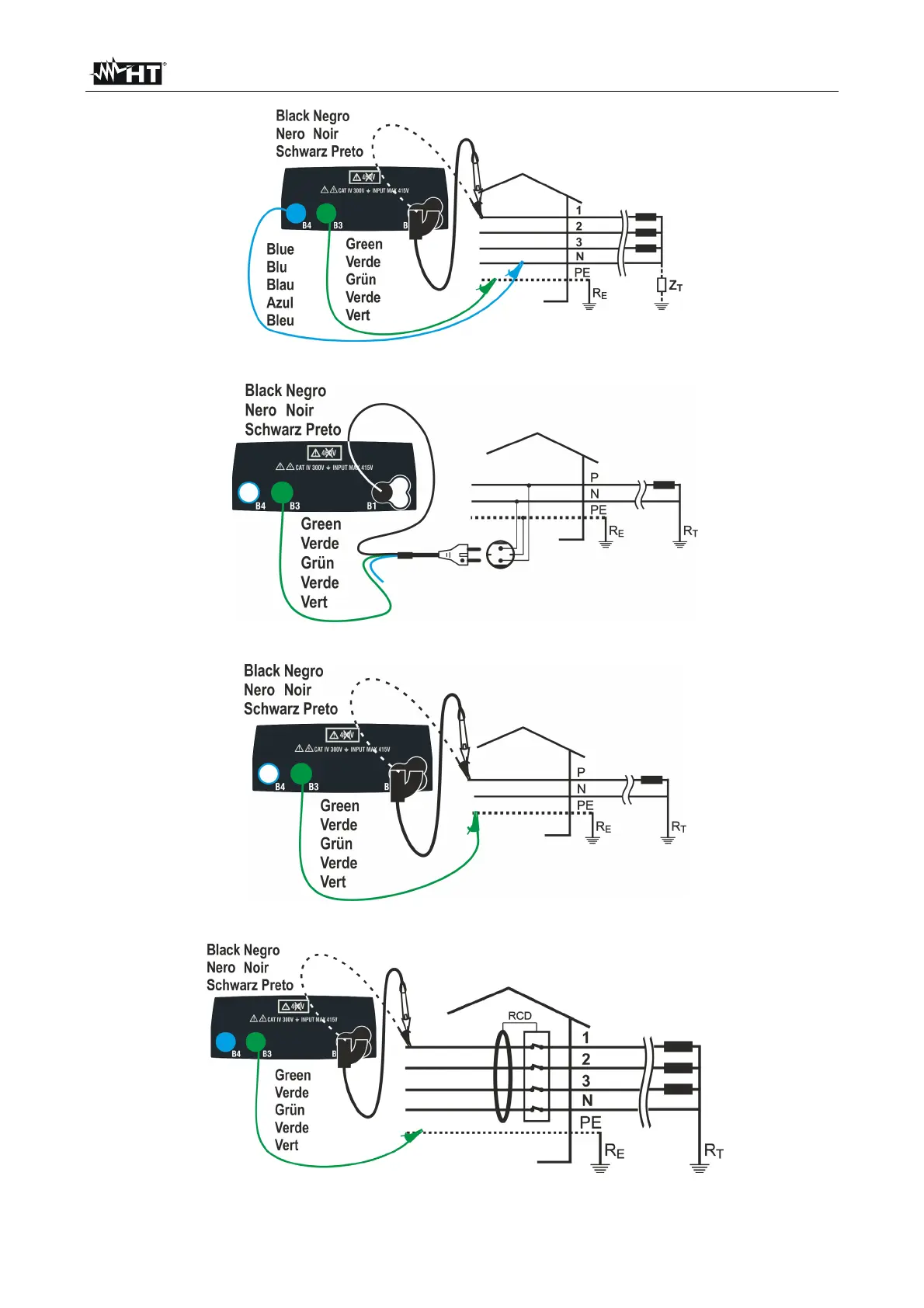

Fig. 27: P-PE measurement for IT systems by means of single cables and remote probe
Fig. 28: P-PE 2-wire test for single-phase/two-phase 230V systems with mains plug
Fig. 29: P-PE 2-wire test for single-phase/two-phase systems with cables and remote probe
Fig. 30: P-PE 2-wire test for three-phase with single cables and remote probe
