LP-542 REV. 7.16.15

E. VENT TERMINATION

1. Two Pipe Roof and Sidewall Vent Terminations

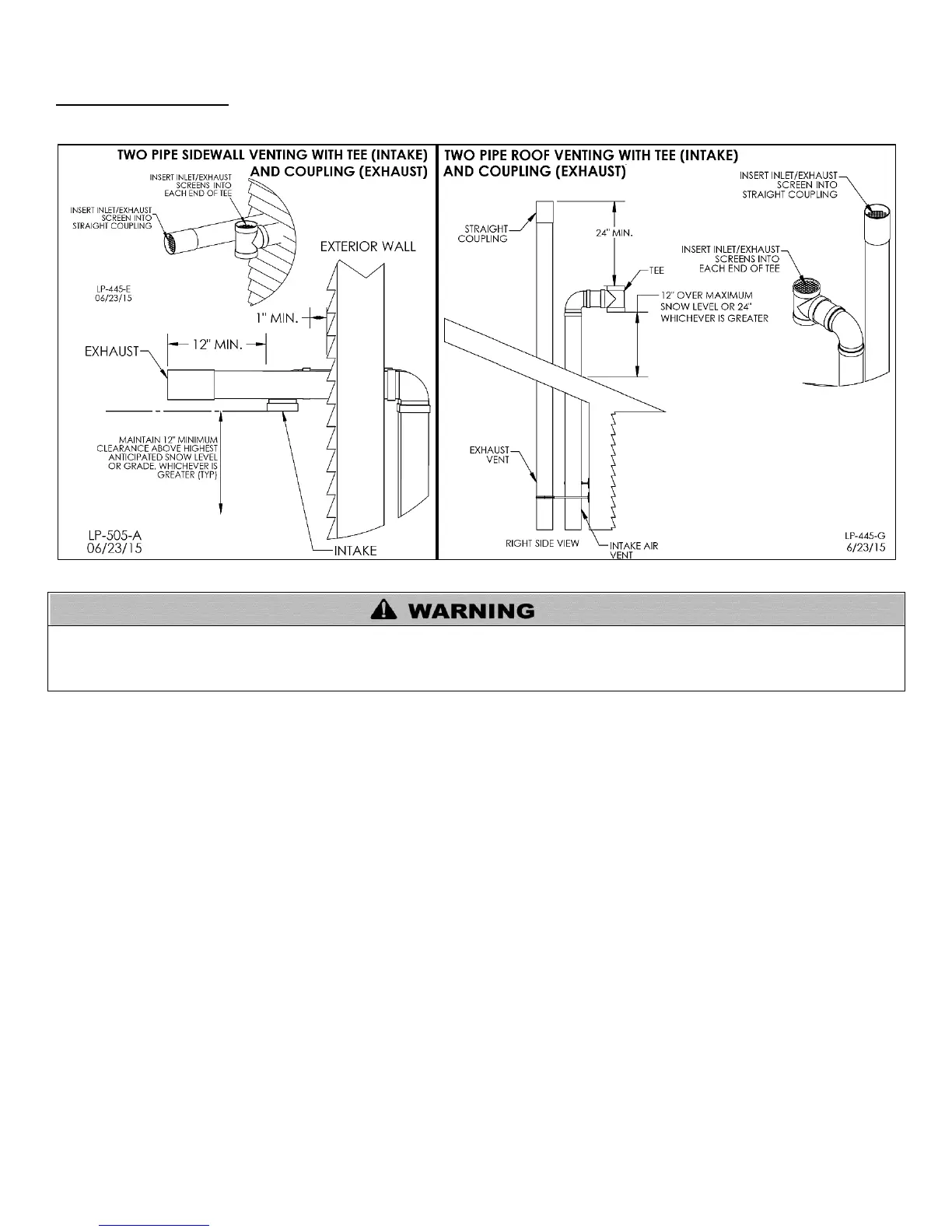

Figure 9 – Direct Vent, Roof and Sidewall Vent Terminations

All vent pipes must be glued, properly supported, and the exhaust must be pitched a minimum of ¼” per foot back to the boiler to allow

drainage of condensate. When placing support brackets on vent piping, the first bracket must be within 1 foot of the boiler and the

balance at 4 foot intervals on the vent pipe. Boiler venting must be readily accessible for visual inspection for the first three feet from the

boiler.
