44
LP-542 REV. 7.16.15
PART 10 – OPERATING SYSTEM INSTRUCTIONS
A. CONTROL PANEL

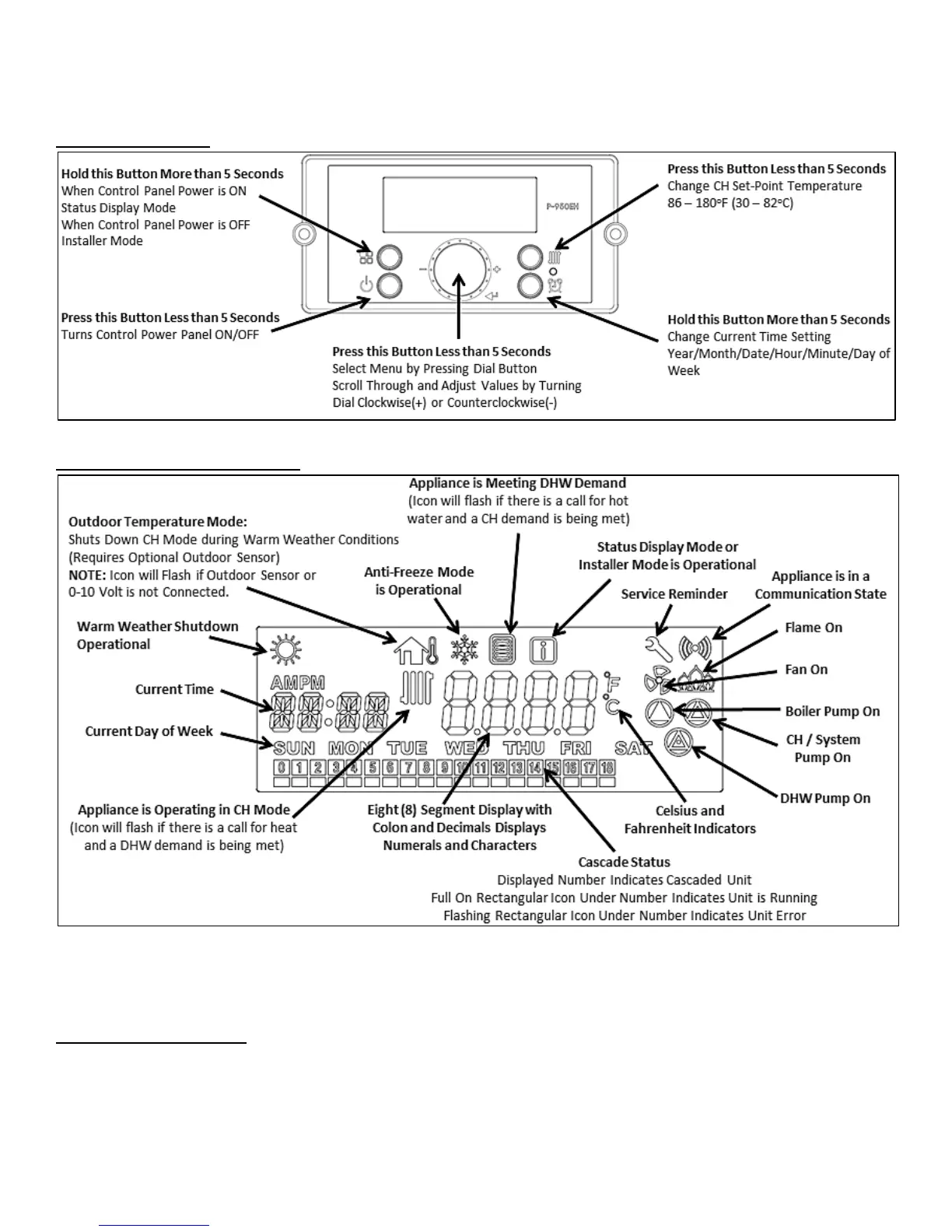

Figure 35 – Boiler Control Panel Detail
B. LCD DISPLAY DESCRIPTIONS
Figure 36 – LCD Display Detail
LCD also features a backlit lamp that will illuminate:
When a user action is detected (a button is pressed)
The display has timed out for approximately 2 minutes
C. START-UP SEQUENCE
After the boiler is powered ON, the LCD display shows a sequence of information. The icons will flash, followed by various indicators
that describe the boiler controller and software versions. It will take the boiler roughly 15 seconds to cycle through the Start-Up
Sequence.
