HTP UFT-100W User Manual

67
LP-542 REV. 7.16.15

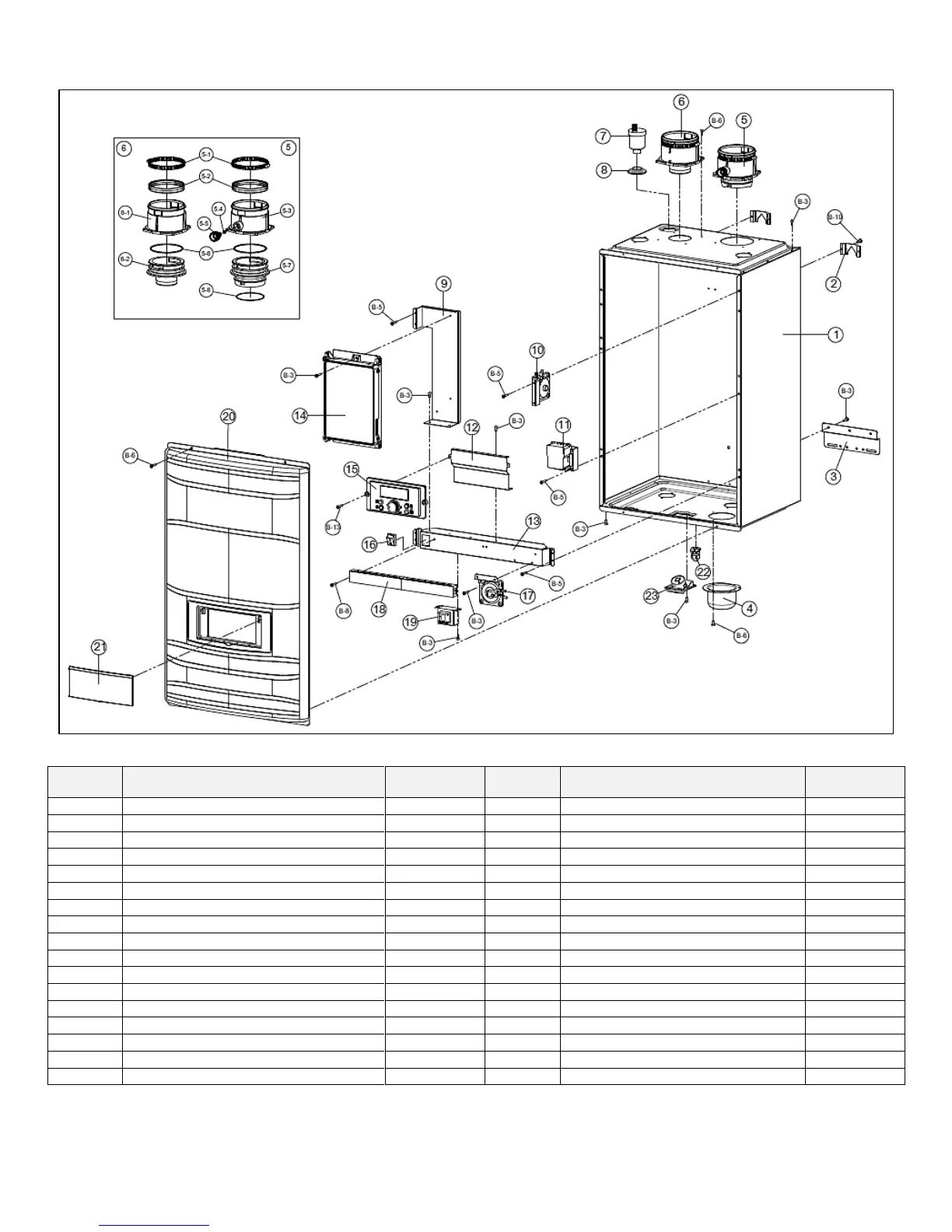

Figure 53 – Cabinet Replacement Parts
NUMBER
DESCRIPTION
PART
NUMBER
NUMBER
DESCRIPTION
PART
NUMBER
1
Cabinet Assembly
7855P-330
8
Air Vent Grommet
7855P-339
2
Top Wall Mount Bracket
7850P-068
9
Control Board Bracket
7855P-340
3
Bottom Wall Mount Bracket
7850P-092
10
Air Pressure Switch
7855P-262
4
Condensate Trap Cup
7855P-331
11
Ignition Transformer
7855P-007
5
Exhaust Duct (Assembly)
7855P-002
12
Display Panel Bracket
7855P-341
5-1
Exhaust / Intake Duct Clamps
7855P-332
13
Terminal Blocks Bracket
7855P-342
5-2
Exhaust / Intake Gaskets
7850P-210
14
Control Board
7855P-343
5-3
Exhaust Duct
7855P-333
15
Display Panel
7855P-344
5-4
Combustion Analyzer Port Plug O-Ring
7855P-334
16
Manual Power Switch
7855P-014
5-5
Combustion Analyzer Port Plug
7855P-335
17
Condensate Block APS
7855P-017
5-6
Intake and Exhaust Adapter O-Ring
7855P-256
18
Terminal Block
7855P-345
5-7
Exhaust Duct Inner Adapter
7855P-004
19
Transformer
7855P-346
5-8
Exhaust Adapter O-Ring
7855P-254
20
Cabinet Front Cover
7855P-347
6
Air Intake Assembly
7855P-003
21
Display Panel Cover
7850P-023
6-1
Air Intake Cap
7855P-337
22
Wire Gland
7855P-348
6-2
Air Intake Inner Adapter
7855P-338
23
CH Pressure Gauge
7855P-222
7
Air Vent
7855P-063
Table 34 – Cabinet Replacement Parts
