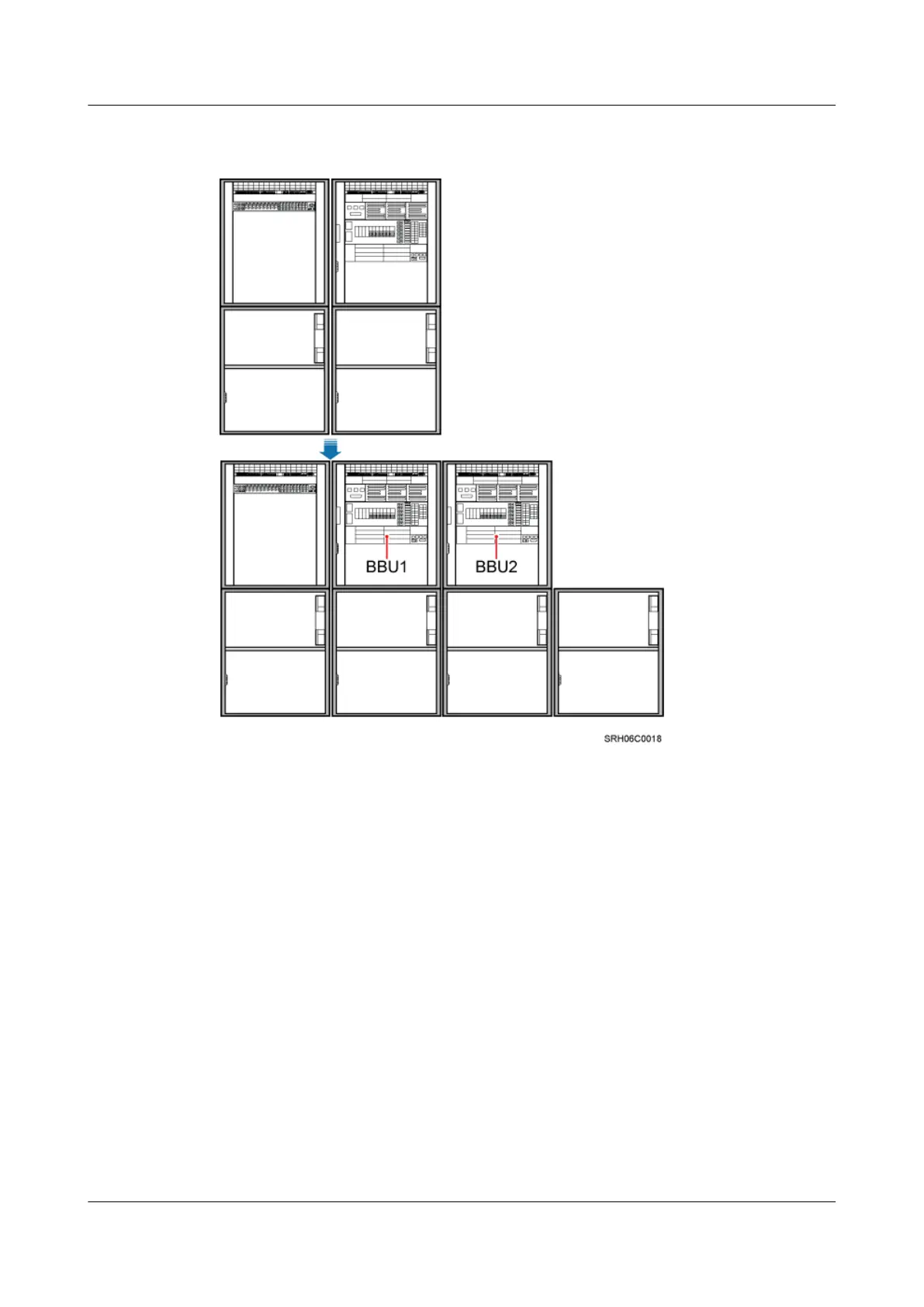

Figure 6-122 Expanding the configuration from one APM30H+two IBBS200Ds/IBBS200Ts
+one TMC to two APM30Hs+four IBBS200Ds/IBBS200Ts+one TMC
Procedure
Step 1 Install a monitoring signal cable between the CMUA and the BBU in an APM30H, as shown in
Figure 6-123.
1. Connect one end of the monitoring signal cable between the CMUA and the BBU to the
COM_IN port on the CMUA in the APM30H.
2. Connect the other end to the MON1 port on the UPEU in the BBU.
