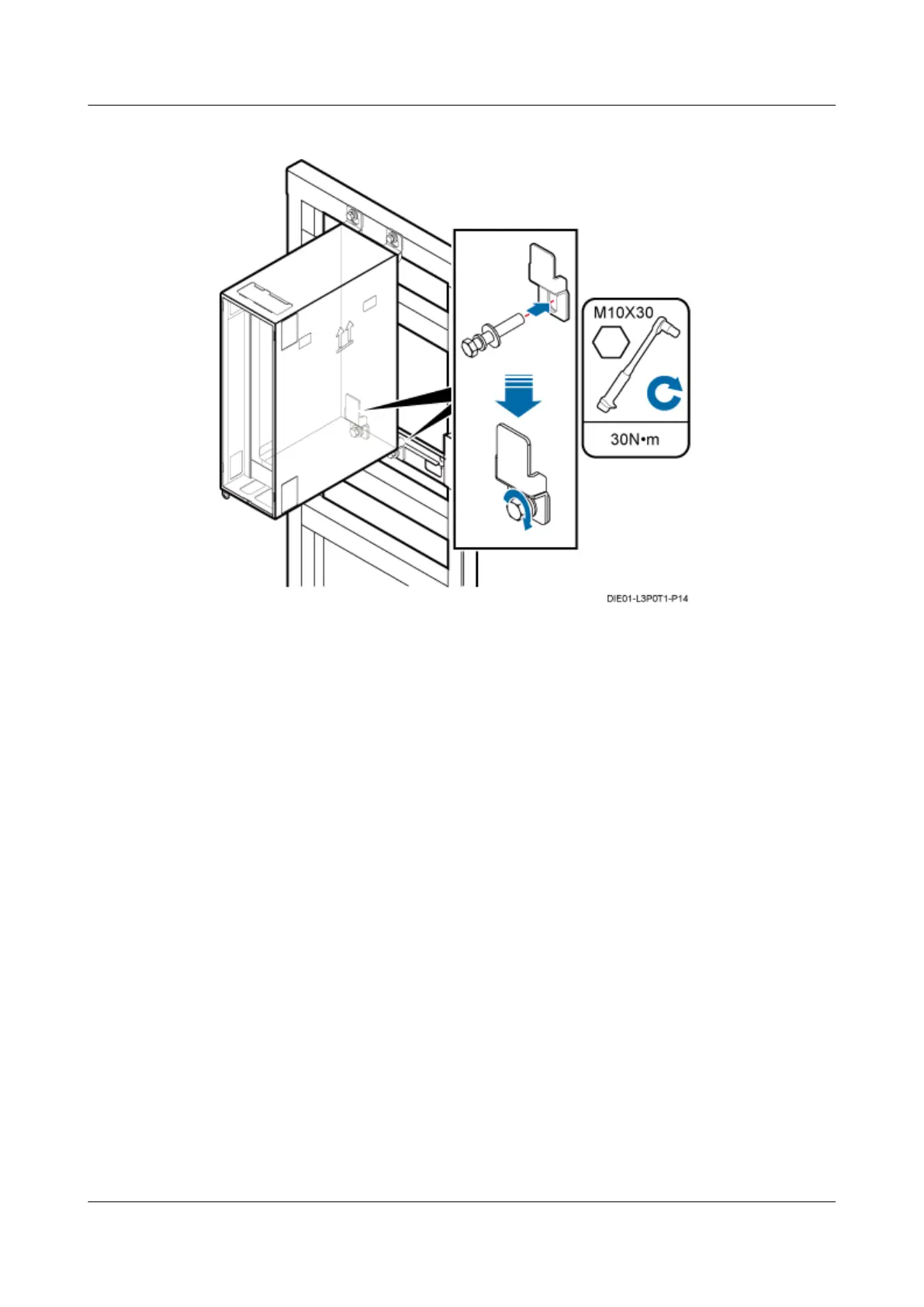

Figure 13-36 Tightening the bolts at the lower part of the IMB03
----End
13.4 Installing Devices in the IMB03
This section describes the procedures for installing the BBU and power device in the IMB03.
The power device can be the DCDU or AC/DC power device.
Context
The slot assignment label for the BBU and power device is attached to the side of the IMB03,
as shown in Figure 13-37. The slot assignment label helps onsite installation engineers to
determine the installation positions for the BBU and power device.
