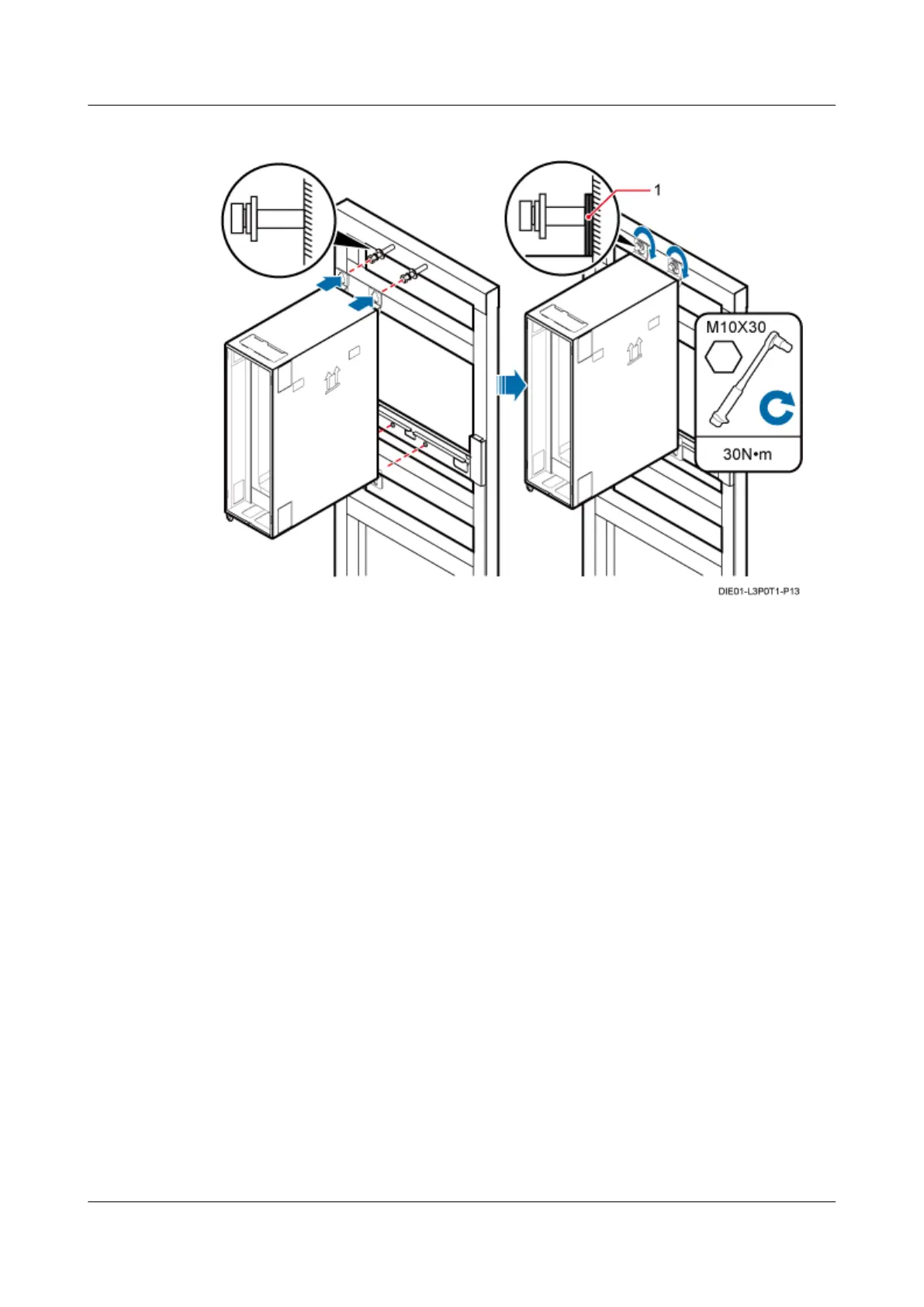

Figure 13-35
Pre-tightening the bolts at the upper anchor points
(1) Mounting ears on the IMB03
Step 7
Align the mounting ears at the lower part of the IMB03 with the anchor holes, and then use a
torque wrench to tighten the bolts, as shown in
Figure 13-36
.
DBS3900 (Ver.B)
Installation Guide
13 Indoor Scenario (BBU Installed in an IMB03)
Issue 06 (2011-09-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
460
472
474
Table of Contents
Default Chapter
8
Table of Contents
8
About this Document
14
1 Changes in the DBS3900 (Ver.b) Installation Guide
14
2 Installation Preparations
18
Document Preparation
19
Tools and Instruments
19
Skills and Requirements for Onsite Personnel
20
3 Installation Scenarios
21
4 Unpacking the Equipment
35
5 Obtaining the ESN
37
6 Outdoor Scenario with AC Power Supply (BBU Installed in an APM30H)
39
Installation Process
41
Installing a Cabinet
43
Installing a Cabinet on a Concrete Floor
43
Installing a Cabinet on a Metal Pole
55
Installing a Cabinet on a Wall
58
Installing a PGND Cable and Equi-Potential Cable
63
Installing Components
64
Installing a BBU
65
Installing an SLPU
66
Installing an SLPU
67
Optional) Installing an SOU
71
Optional) Installing an AC Heater
73
Optional) Installing an EMUA
74
Installing the GPS Surge Protector
76
Installing Cables
81
Cabling Requirements
81
Installing a Cable Outlet Module in a Cabinet
83
Installing Power Cables
85
Installing Transmission Cables
104
Installing Monitoring Signal Cables
112
Installing a CPRI Optical Cable
144
Installing the Batteries and Related Cables
146
Installation Checklist
149
Power-On Check
153
Subsequent Operations
155
Sealing the Cable Holes on the Base
155
Applying Touch-Up Paint
156
Applying Grease
157
7 Outdoor Scenario with DC Power Supply (BBU Installed in a TMC11H)
160
Installation Process
162
Installing a Cabinet
164
Installing a Cabinet on a Concrete Floor
164
Installing a Cabinet on a Metal Pole
176
Installing a Cabinet on a Wall
179
Installing a PGND Cable and Equi-Potential Cable
184
Installing Components
185
Installing a BBU
185
Installing an SLPU
186
Installing an SLPU
188
Optional) Installing a AC Heater
192
Optional) Installing an EMUA
194
Installing the GPS Surge Protector
196
Installing Cables
201
Cabling Requirements
201
Installing a Cable Outlet Module in a Cabinet
203
Installing Power Cables
205
Installing Transmission Cables
211
Installing Monitoring Signal Cables
218
Installing a CPRI Optical Cable
220
Installation Checklist
222
Power-On Check
226
Subsequent Operations
228
Sealing the Cable Holes on the Base
228
Applying Touch-Up Paint
229
Applying Grease
230
8 Outdoor Scenario with DC Power Supply (BBU Installed in a +24 V DC APM30H)
232
Installation Process
234
Installing a Cabinet
236
Installing a Cabinet on a Concrete Floor
236
Installing a Cabinet on a Metal Pole
248
Installing a Cabinet on a Wall
251
Installing a PGND Cable and Equipotential Cable
256
Installing Components
257
Installing a BBU
257
Installing an SLPU
258
Installing an SLPU
260
Optional) Installing an EMUA
264
Installing the GPS Surge Protector
266
Installing Cables
270
Cabling Requirements
270
Installing a Cable Outlet Module in a Cabinet
272
Installing Power Cables
274
Installing Transmission Cables
280
Installing Monitoring Signal Cables
287
Installing a CPRI Optical Cable
288
Installation Checklist
290
Power-On Check
294
Subsequent Operations
296
Sealing the Cable Holes on the Base
296
Applying Touch-Up Paint
297
Applying Grease
298
9 Outdoor Scenario with DC Power Supply (BBU Installed in an OMB)
301
Installation Process
302
Installing an OMB
304
Installing an OMB on a Metal Pole
304
Installing an OMB on a Wall
306
Installing a BBU
309
Installing Cables
311
Cabling Requirements
312
Installing a Cable Outlet Module in an OMB
313
Installing a PGND Cable
316
Installing Power Cables
317
Installing Transmission Cables
323
Installing a Monitoring Signal Cable between the HEUA and the BBU
328
Installing a CPRI Optical Cable
329
Installing a GPS Clock Signal Cable
331
Installation Checklist
334
Power-On Check
338
Applying Touch-Up Paint
339
10 Outdoor Scenario with AC Power Supply (BBU Installed in an OMB)
341
Installation Process
342
Installing an OMB
344
Installing an OMB on a Metal Pole
344
Installing an OMB on a Wall
346
Installing a BBU
349
Installing Cables
351
Cabling Requirements
352
Installing a Cable Outlet Module in an OMB
353
Installing a PGND Cable
356
Installing Power Cables
357
Installing Transmission Cables
363
Installing a Monitoring Signal Cable between the HEUA and the BBU
368
Installing a CPRI Optical Cable
369
Installing a GPS Clock Signal Cable
371
Installation Checklist
374
Power-On Check
378
Applying Touch-Up Paint
380
11 Indoor Scenario with DC Power Supply (BBU Installed on a Wall)
382
Installation Clearance Requirements
383
Installation Process
384
Installing Components on a Wall
386
Installing a BBU
386
Installing a DCDU-03B
389
Installing Cables
392
Cabling Requirements
392
Installing PGND Cables
393
Installing Power Cables
396
Installing Transmission Cables
401
Optional) Installing a Monitoring Signal Cable for the EMUA
404
Installing a BBU Alarm Cable
405
Installing a CPRI Optical Cable
406
Installing a GPS Clock Signal Cable
408
Installation Checklist
410
Power-On Check
414
12 Indoor Scenario with DC Power Supply (BBU Installed in a 19-Inch Rack)
416
Installation Clearance Requirements for a BBU
417
Installation Process
417
Installing Components in a 19-Inch Rack
419
Installing a BBU
419
Installing a DCDU-03B
420
Optional) Installing a WGRU
420
Installing Cables
425
Cabling Requirements
425
Installing a DCDU-03B PGND Cable
426
Installing Power Cables
427
Installing Transmission Cables
432
Optional) Installing a Monitoring Signal Cable for the EMUA
436
Installing a BBU Alarm Cable
437
Installing a CPRI Optical Cable
438
Installation Checklist
440
Power-On Check
444
13 Indoor Scenario (BBU Installed in an IMB03)
446
Dimensions and Installation Clearance Requirements
447
Installation Clearance Requirements for the IMB03 Mounted on the Wall
447
Installation Clearance Requirements for the IMB03 Mounted on the IFS06
450
Installation Process
452
Installing the IMB03
453
Installing the IMB03 on the Wall
454
Installing the IMB03 on the IFS06
464
Installing Devices in the IMB03
474
Installing the BBU
475
Installing the Power Device
476
Installing IMB03 Cables
478
Cabling Requirements
478
Cable Installation Process
480
Cable Connections for the IMB03 in the GSM+UMTS Scenario
481
Cable Connections for the IMB03 in the GSM+LTE Scenario
486
Cable Connections for the IMB03 in the UMTS+LTE Scenario
491
Cable Connections for the IMB03 in the LTE Only Scenario
496
Cable Connections for the IMB03 in the GSM Only Scenario
499
Cable Connections for the IMB03 in the UMTS Only Scenario
504
IMB03 Hardware Installation Checklist
508
Power-On Check
509
Installing the Cover Plate for the IMB03
511
14 Indoor Scenario with DC Power Supply (BBU Installed Indoors and RRU Powered Outdoors)
513
Installation Process
515
Installing a Cabinet
516
Installing a Cabinet on a Concrete Floor
516
Installing a Cabinet on a Metal Pole
525
Installing a Cabinet on a Wall
529
Installing PGND Cables
534
Installing Components
535
Installing a USLP2
535
Installing an SLPU
536
Installing Cables
539
Cabling Requirements
539
Installing an Input Power Cable for the APM30H
541
Installing an RRU Power Cable
544
Installing a Monitoring Signal Cable for the RRU
546
Installing a Surge Protection Transfer Cable between the CMUA and the SLPU
547
Installation Checklist
548
Power-On Check
551
Subsequent Operations
553
Sealing the Cable Holes on the Base
553
Applying Touch-Up Paint
554
Applying Grease
555
