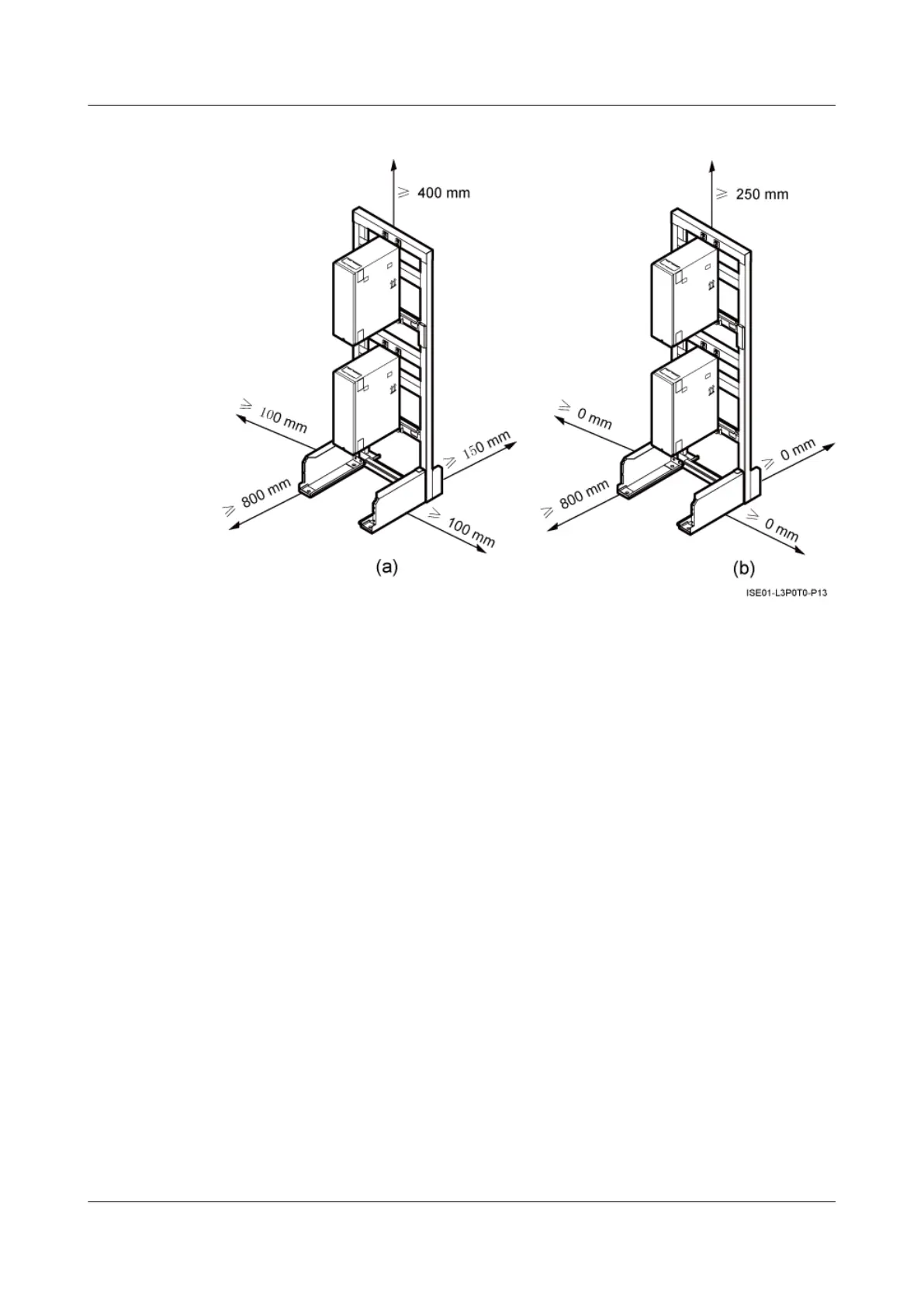

Figure 13-7 Installation clearance requirements for the IMB03 back-mounted on the IFS06
(a) Recommended installation clearance (b) Minimum installation clearance
13.2 Installation Process
This section describes the process of installing the IMB03.
Figure 13-8 shows the installation process.
