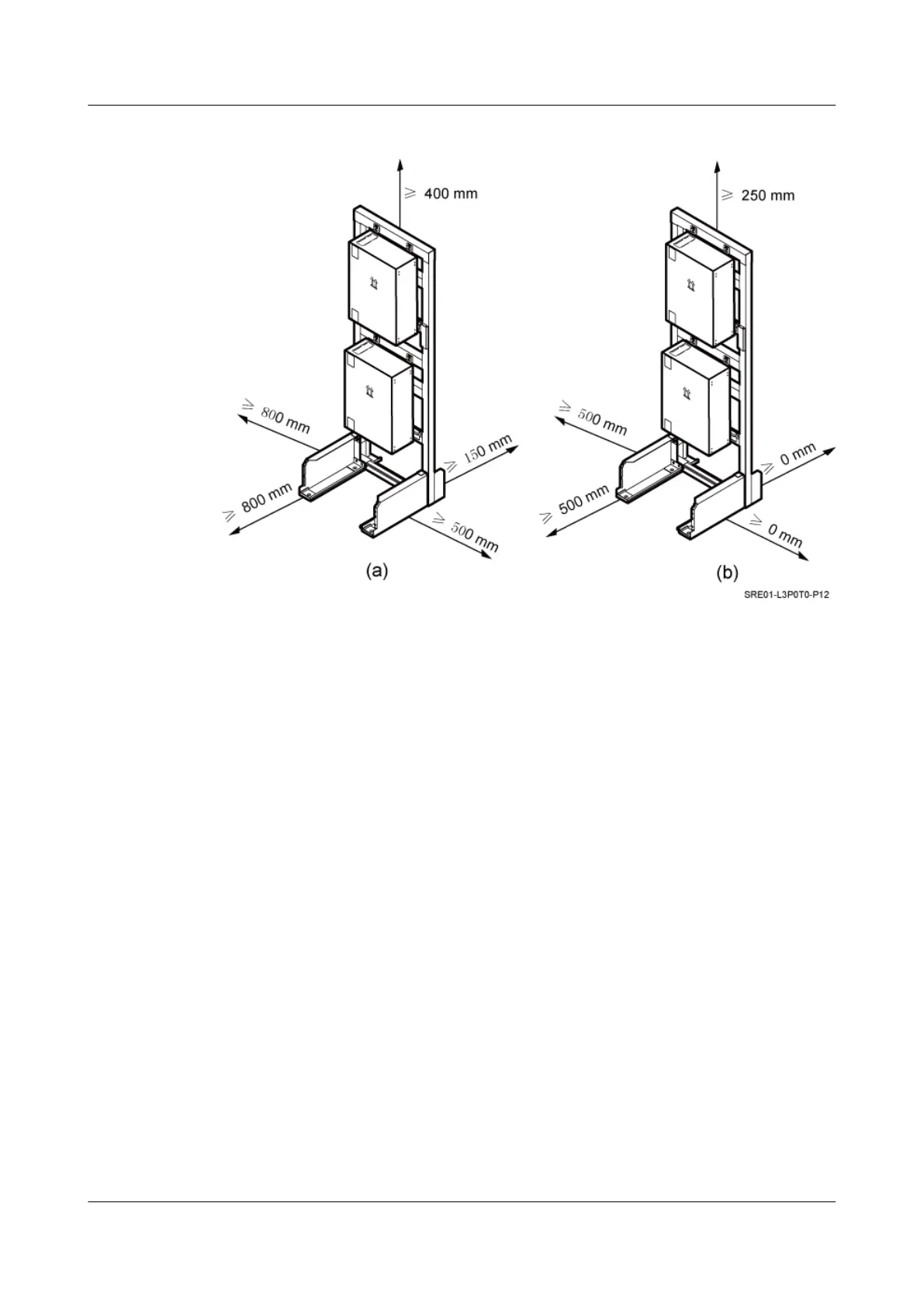

Figure 13-6 Installation clearance requirements for the IMB03 left-side-mounted on the IFS06
(a) Recommended installation clearance (b) Minimum installation clearance
Installation Clearance Requirements for the IMB03 Back-Mounted on the IFS06
Figure 13-7 shows the installation clearance requirements for the IMB03 back-mounted on the
IFS06.
DBS3900 (Ver.B)
Installation Guide 13 Indoor Scenario (BBU Installed in an IMB03)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
438
