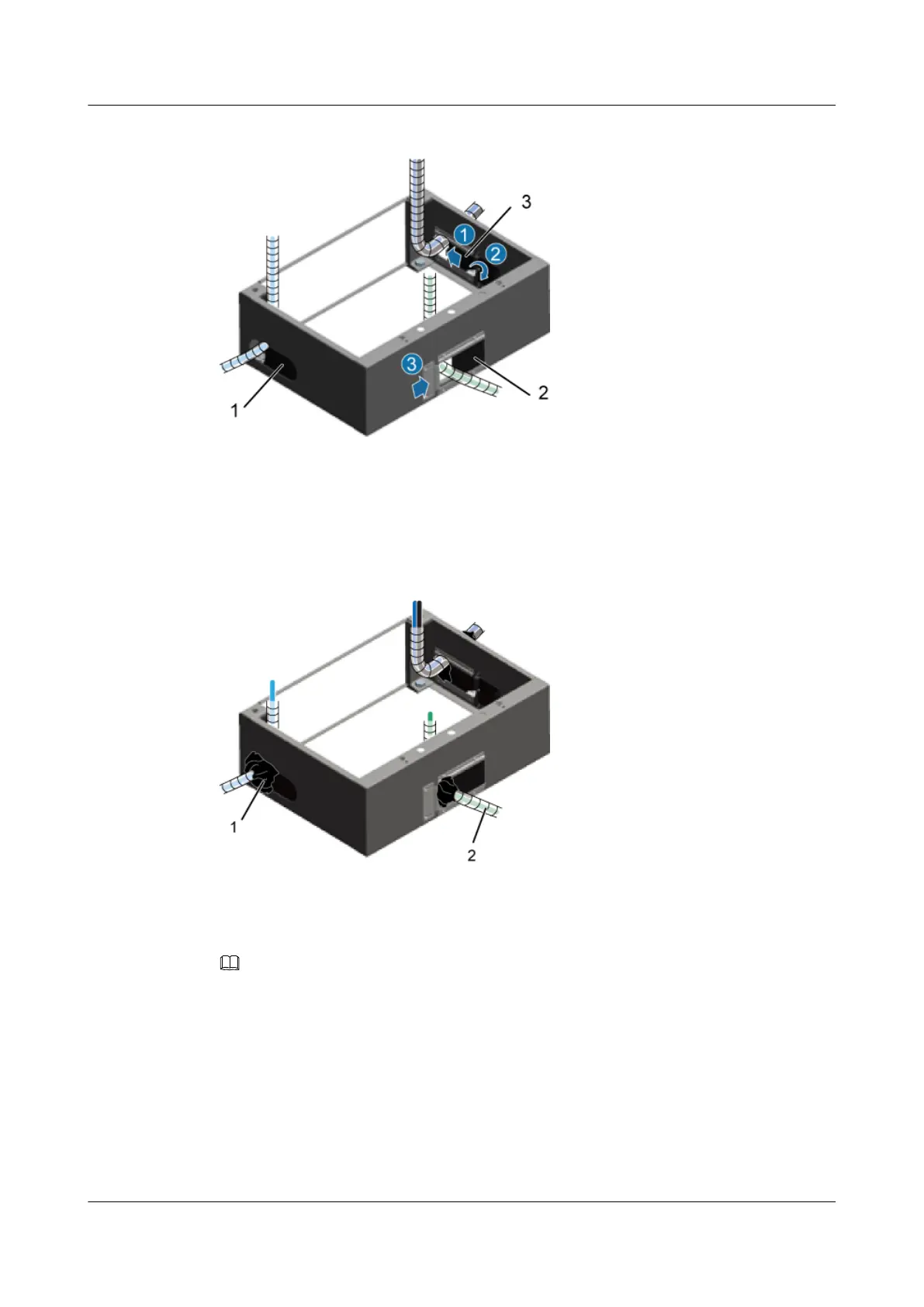

Figure 6-137 Sealing the cable holes of the base by using the baffle plates
(1) Baffle plate on the right (2) Baffle plate at the rear (3) Baffle plate on the left
Step 2 Use fireproof clay to seal the cable holes of the base, as shown in Figure 6-138.
Figure 6-138 Sealing the cable holes of the base by using the fireproof clay
(1) Fireproof clay
(2) PVC corrugated pipe
NOTE
Fireproof clay can be used only for sealing the cable outlet hole in the base. It cannot be used for sealing
the cable outlet hole of the cabinet.
Step 3 Tighten the screws on the front baffle plate of the base.
----End
6.9.2 Applying Touch-Up Paint
The paint on the surface is intact. If any paint is damaged, you must apply touch-up paint to
avoid erosion.
