Huawei DBS3900 - Installing the GPS Surge Protector

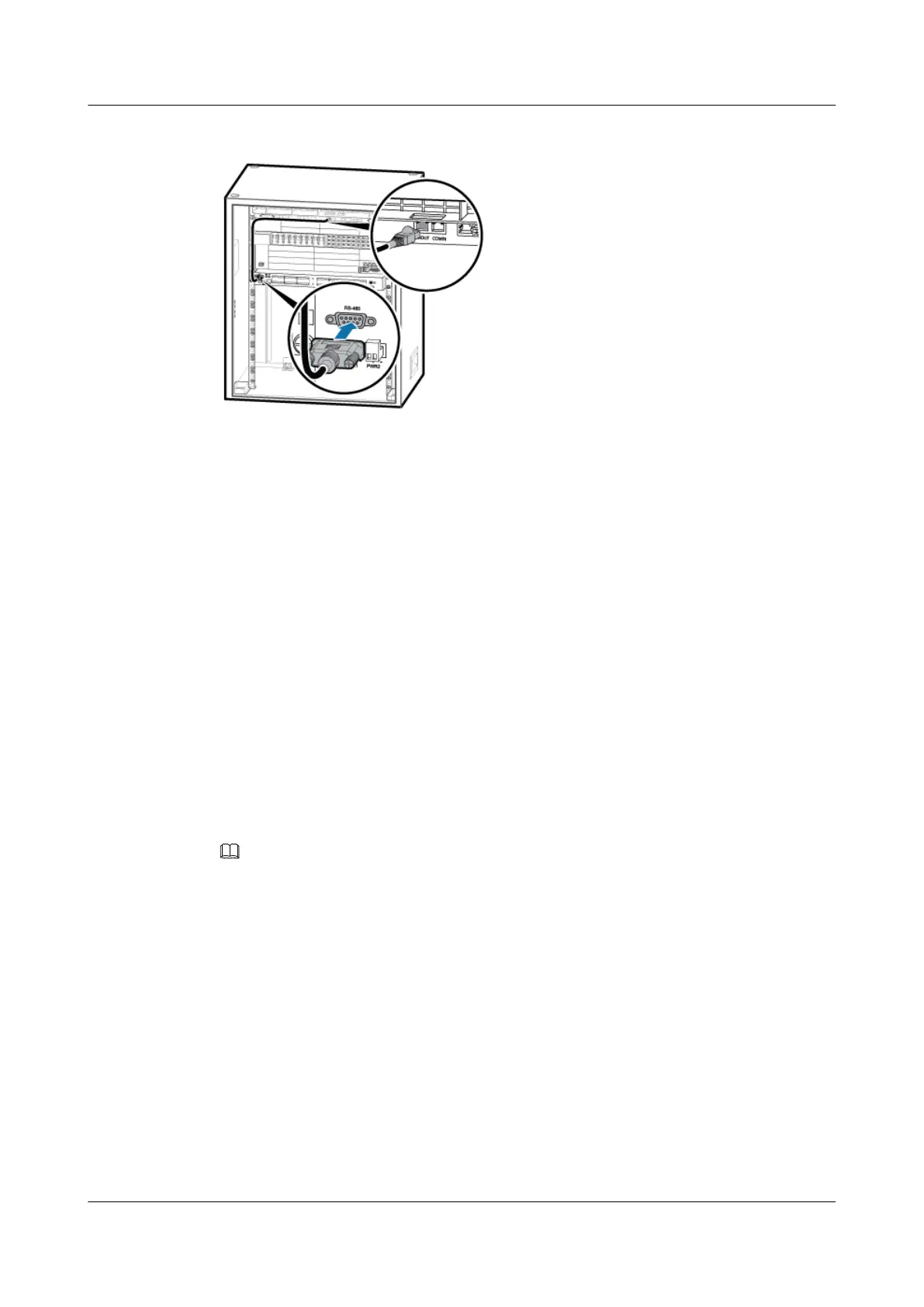

Figure 7-55 Installing the EMUA monitoring signal cable
1. Connect the DB9 male connector at one end of the signal cable to the wiring terminal labeled
RS-485 in left of the EMUA panel.
2. Connect the RJ-45 connector at the other end of the signal cable to COM OUT of the
CMUA in the cabinet.
Step 4 Route the cables by referring to 7.5.1 Cabling Requirements and use cable ties to bind the
cables.
Step 5 Attach labels to the installed power cable and monitoring signal cable. For details, see Attaching
a Sign Plate Label and Attaching an L-Shaped Label.
----End
7.4.6 Installing the GPS Surge Protector
This section describes the procedure and precautions for installing the GPS surge protector and
related cables.
Context
NOTE
Only a dual-satellite receiver needs to be installed onsite.
Procedure
Step 1 Remove the two M3 screws on the panel, and then pull out the USCU, as shown in Figure
7-56.
DBS3900 (Ver.B)
Installation Guide
7 Outdoor Scenario with DC Power Supply (BBU Installed
in a TMC11H)
