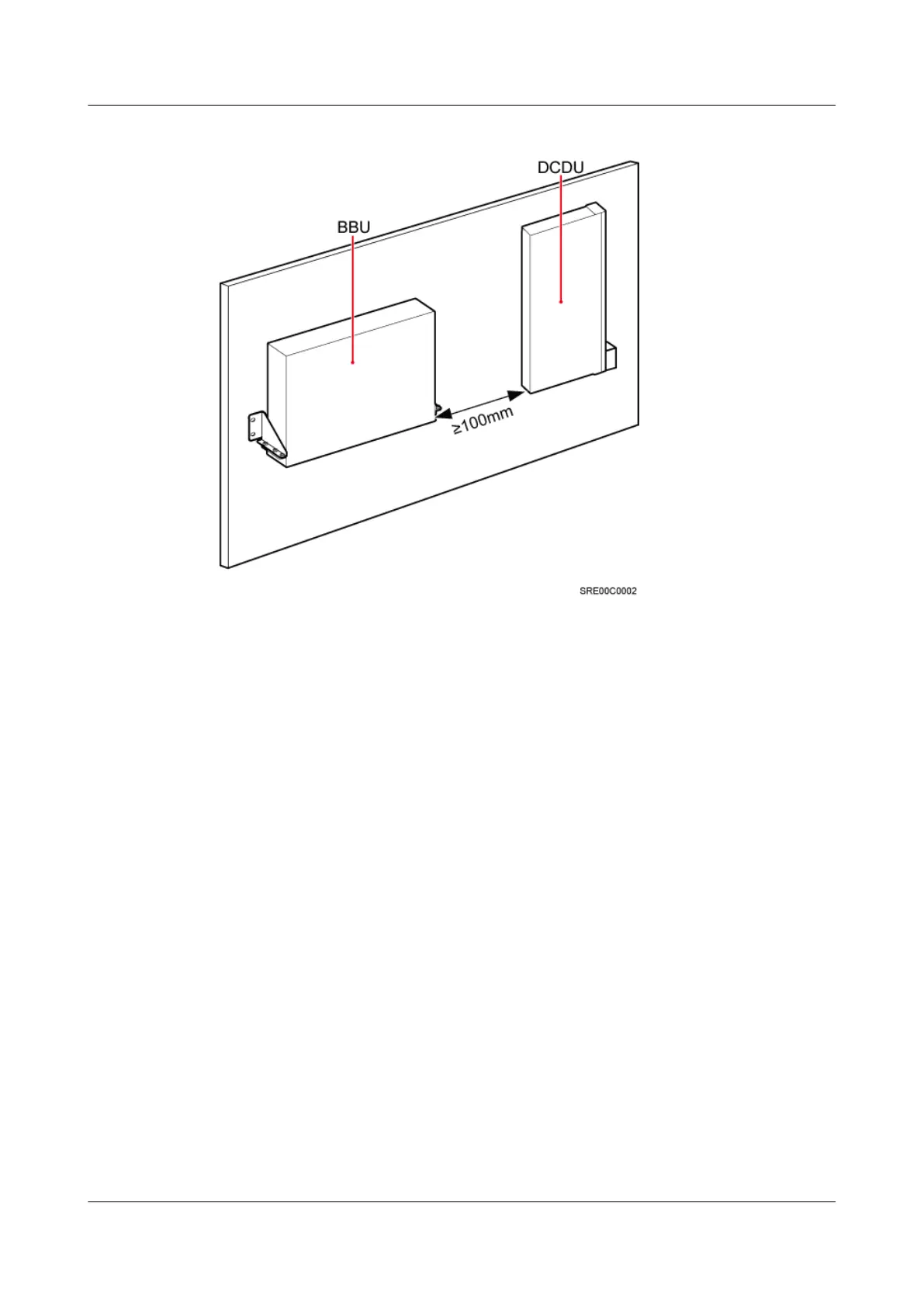

Figure 11-2 Installation clearance requirements for a wall-mounted BBU and DCDU-03B
11.2 Installation Process
In an indoor wall-mounted scenario, you must install components and related cables on a wall.
Figure 11-3 shows the installation process.
