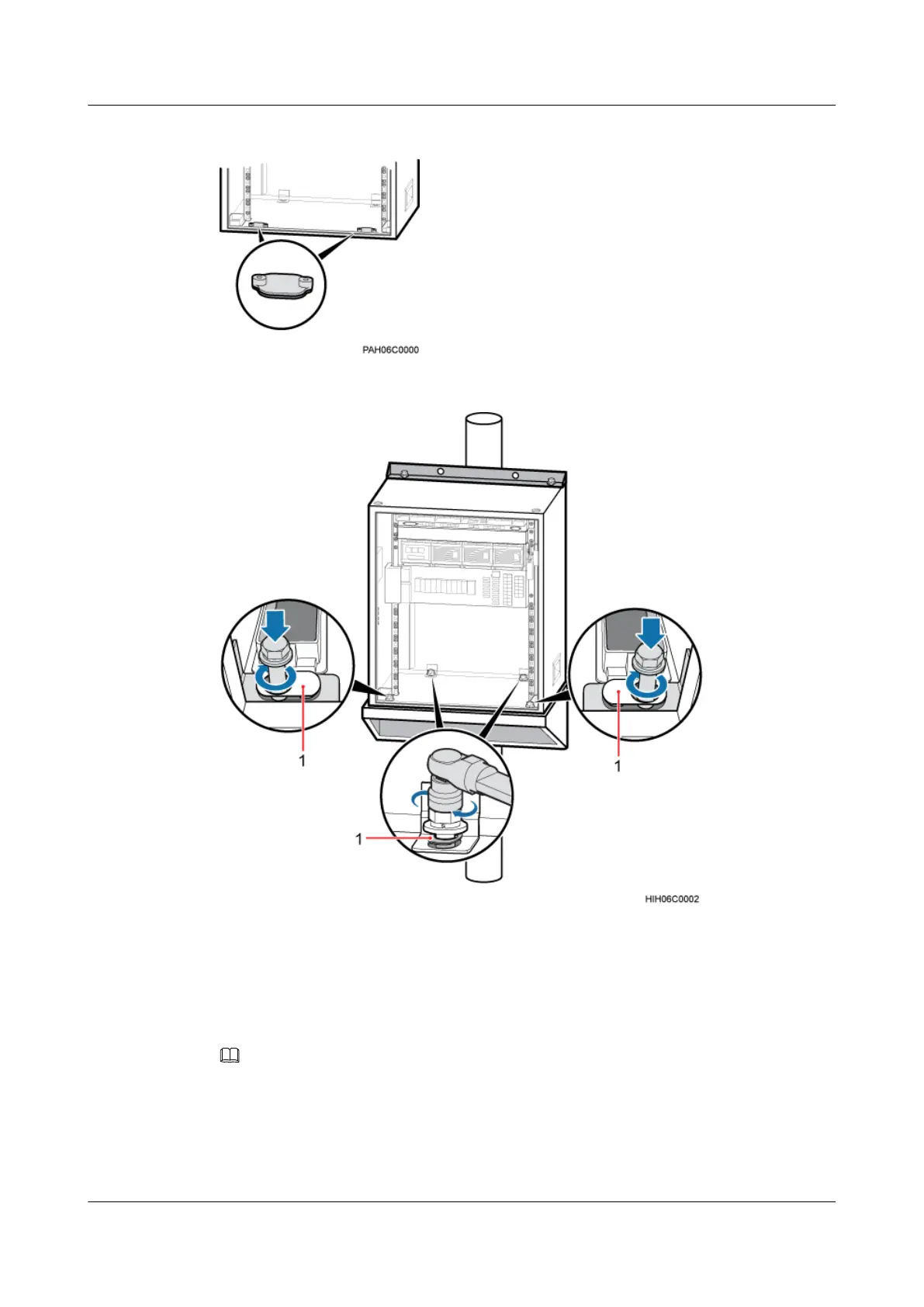

Figure 7-24 Positions of the cover plates for the round cable holes
Figure 7-25 Installing a cabinet
(1) Gasket with an oblong hole
Step 5 Lead the U-shaped piece through the holes on the fastening bar installed on the top of the cabinet,
as shown in Figure 7-26.
NOTE
When a cabinet is installed on a metal pole, grease must be applied. For details, see 7.8.3 Applying
Grease.
DBS3900 (Ver.B)
Installation Guide
7 Outdoor Scenario with DC Power Supply (BBU Installed
in a TMC11H)
