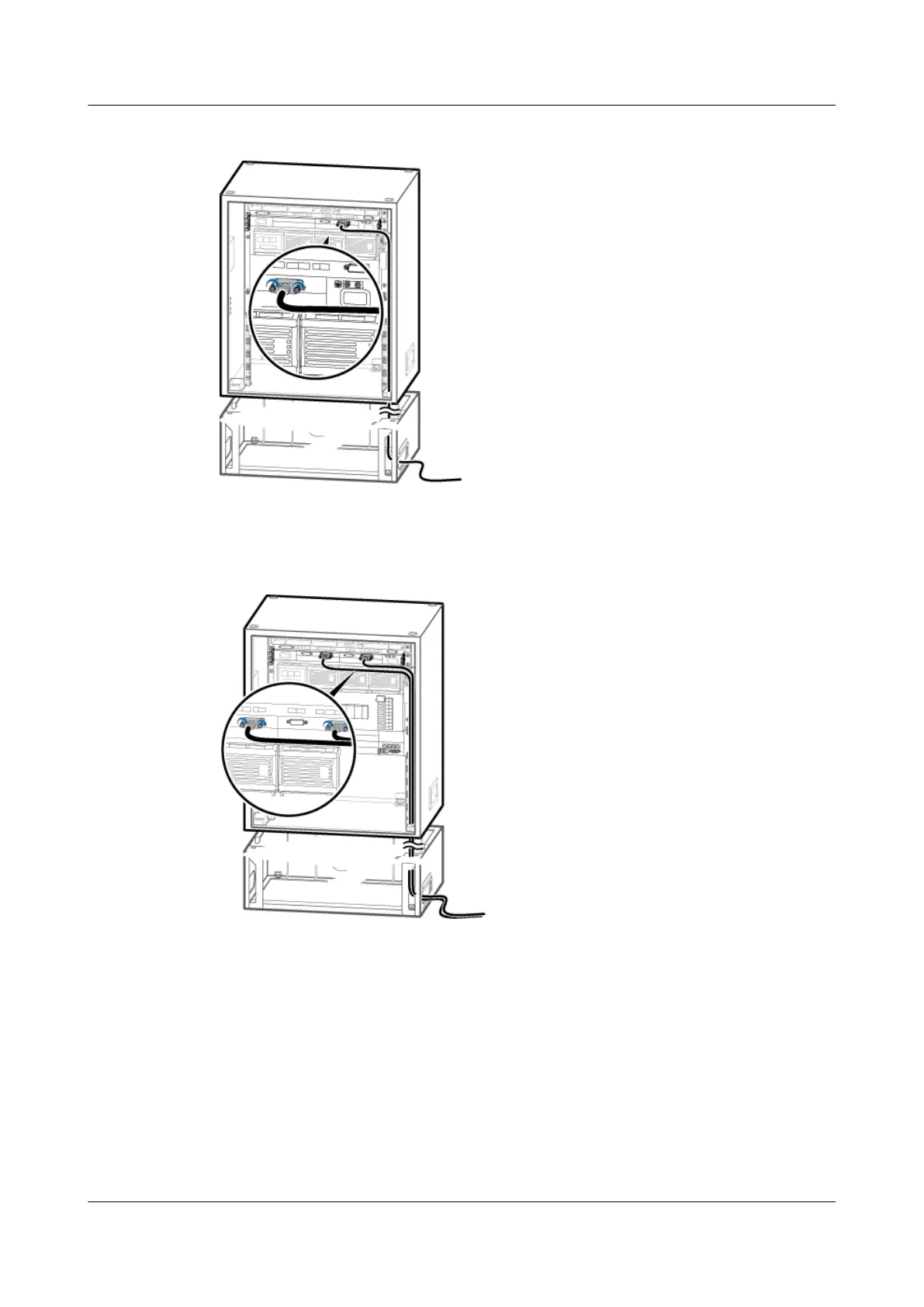

Figure 7-71 Installing the E1/T1 cable (1)
Figure 7-72 Installing the E1/T1 cable (2)
Step 2 Lead the other end of the E1/T1 cable out of the cabinet through the cable hole at the bottom
along the right of the cabinet.
Step 3 Route the cable along the right of the cabinet by referring to 7.5.1 Cabling Requirements, and
then use cable ties to bind the cable.
Step 4 Label the installed cables by referring to Attaching an L-Shaped Label.
----End
DBS3900 (Ver.B)
Installation Guide
7 Outdoor Scenario with DC Power Supply (BBU Installed
in a TMC11H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
200
