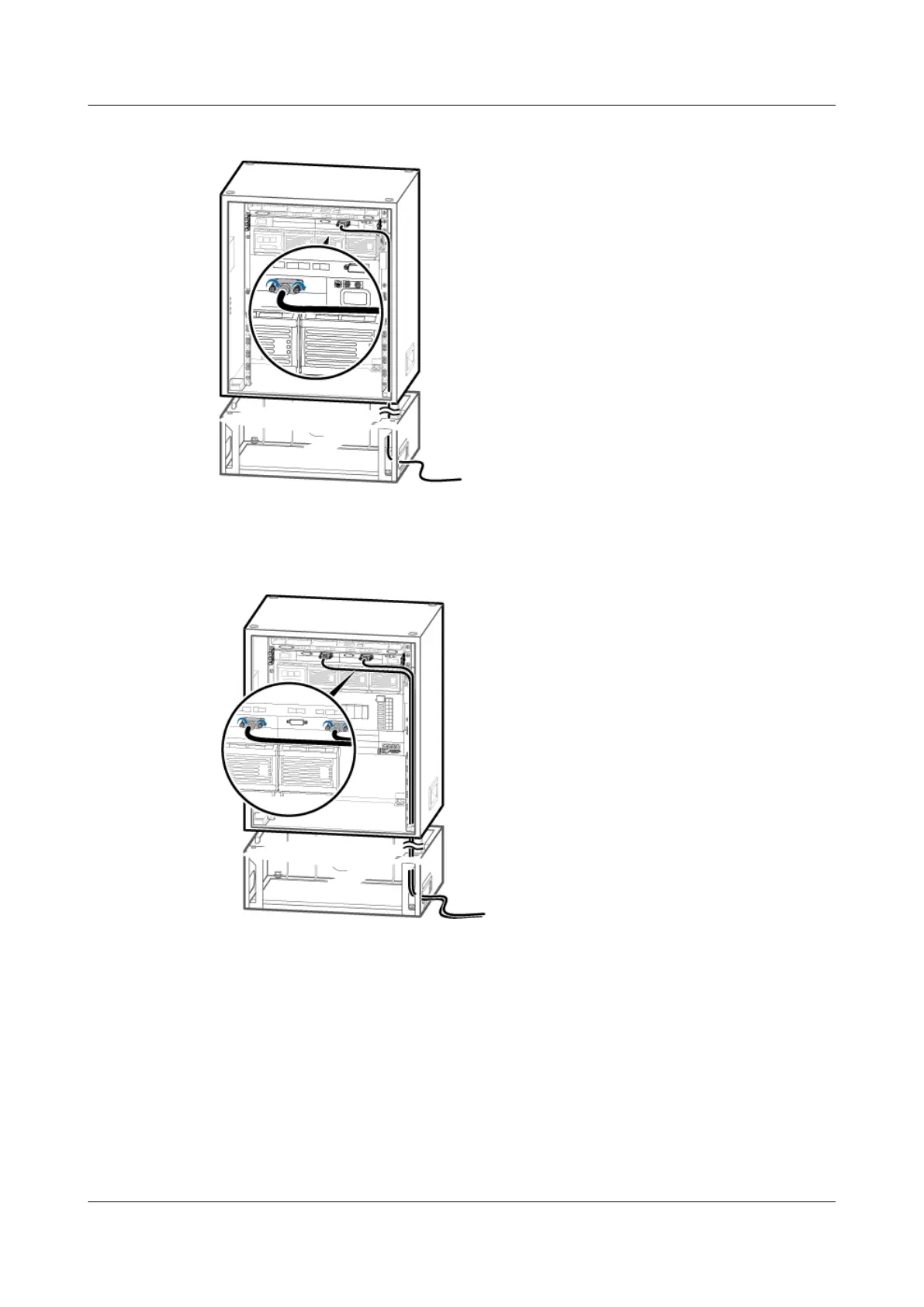

Figure 8-66 Installing the E1/T1 cable (1)
Figure 8-67 Installing the E1/T1 cable (2)
Step 2 Lead the other end of the E1/T1 cable out of the cabinet through the cable hole at the bottom
along the right of the cabinet.
Step 3 Route the cable along the right of the cabinet by referring to 8.5.1 Cabling Requirements, and
then use cable ties to bind the cable.
Step 4 Label the installed cables by referring to Attaching an L-Shaped Label.
----End
