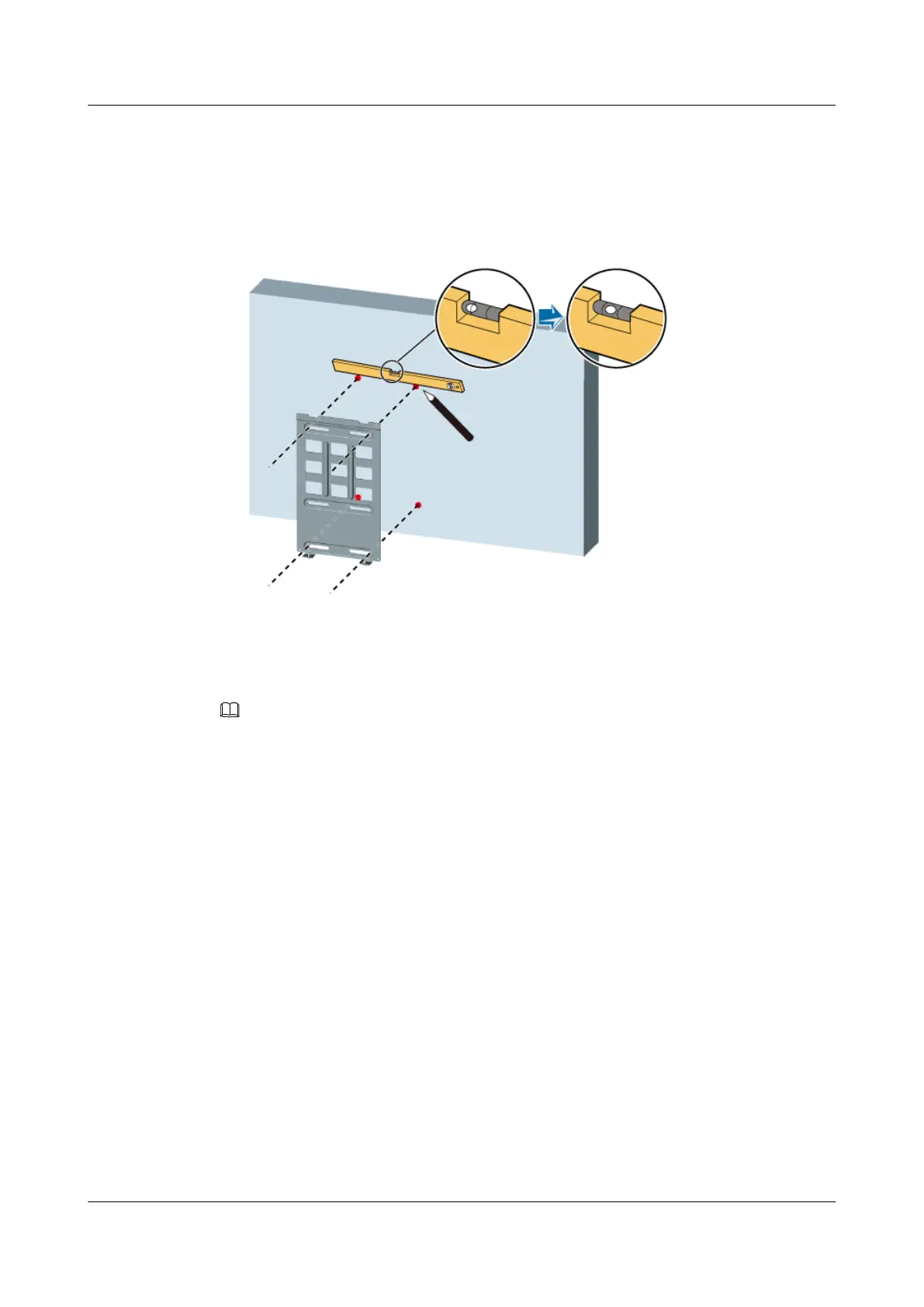

Figure 9-6 Marking anchor points
Step 2 Use the hammer drill with a Φ14 bit to drill a hole at each marked anchor points, and then install
an expansion bolt assembly, as shown in Figure 9-7.
NOTE
After the expansion bolt assembly is removed from the wall, the plastic tube must be discarded.
