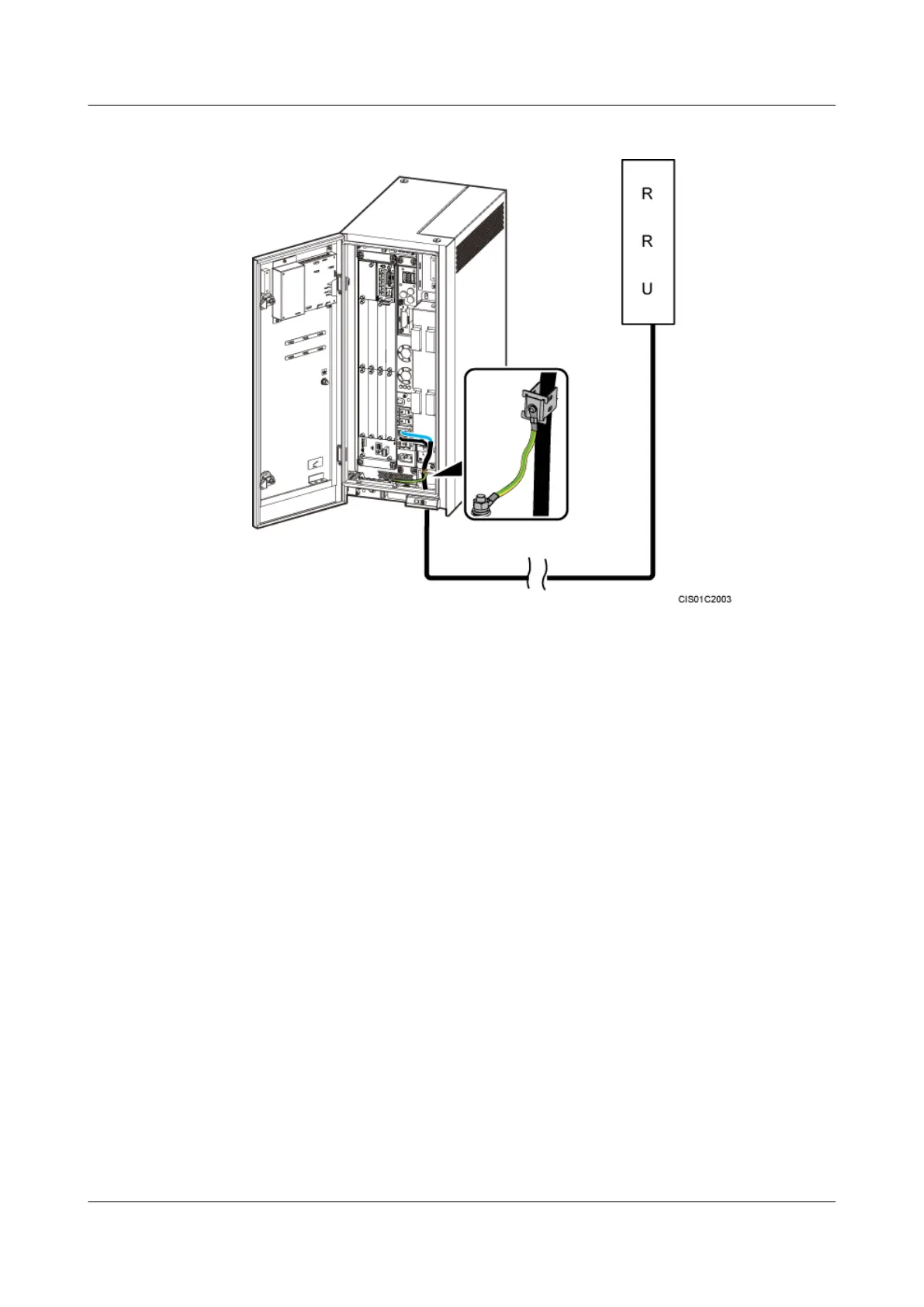

Figure 10-22 Installing an RRU power cable
Step 3 In a position 20 cm away from the cable outlet module, strip the jacket for about 25 mm off the
RRU power cable to expose the shield layer. Thread the cable through the ground clip to ensure
full contact between the shield layer and the ground clip, and then tighten the M4 screws on the
clip until the tightening torque reaches 1.2 N·m, as shown in Figure 10-23.
