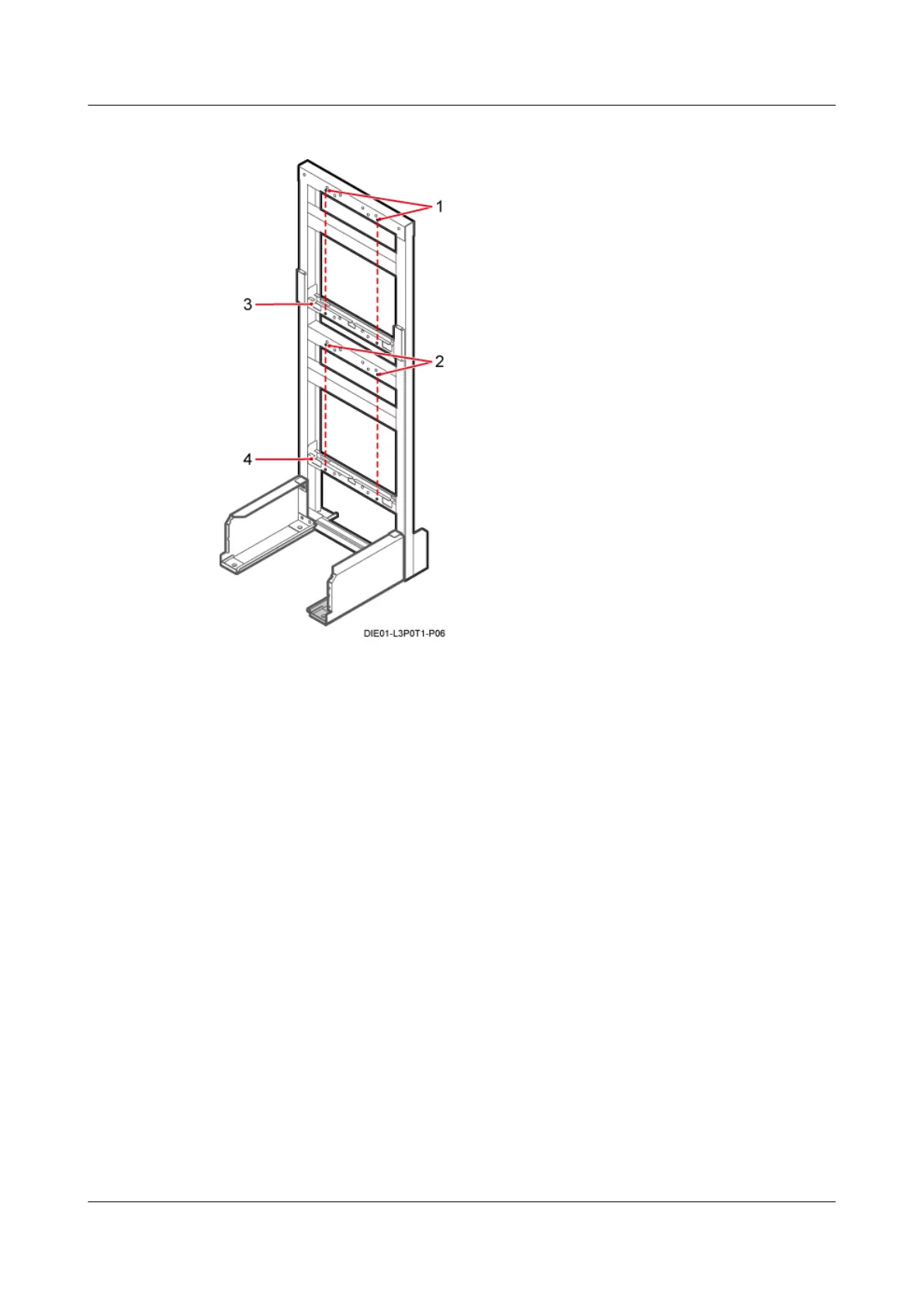

Figure 13-25 Installing the IMB03 on the IFS06 (side-mounted)
(1) Anchor holes for the
upper IMB03
(2) Anchor holes for the
lower IMB03
(3) Upper adjusting beam (4) Lower adjusting beam
Procedure
Step 1 Remove the protection plate from the bottom of the IMB03, as shown in Installing the IMB03
on the Wall (Side-Mounted).
Step 2 Install the GPS surge protector, as shown in Installing the IMB03 on the Wall (Side-
Mounted).
Step 3 Install the mounting ears on the IMB03, as shown in Figure 13-26.
DBS3900 (Ver.B)
Installation Guide 13 Indoor Scenario (BBU Installed in an IMB03)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
452
