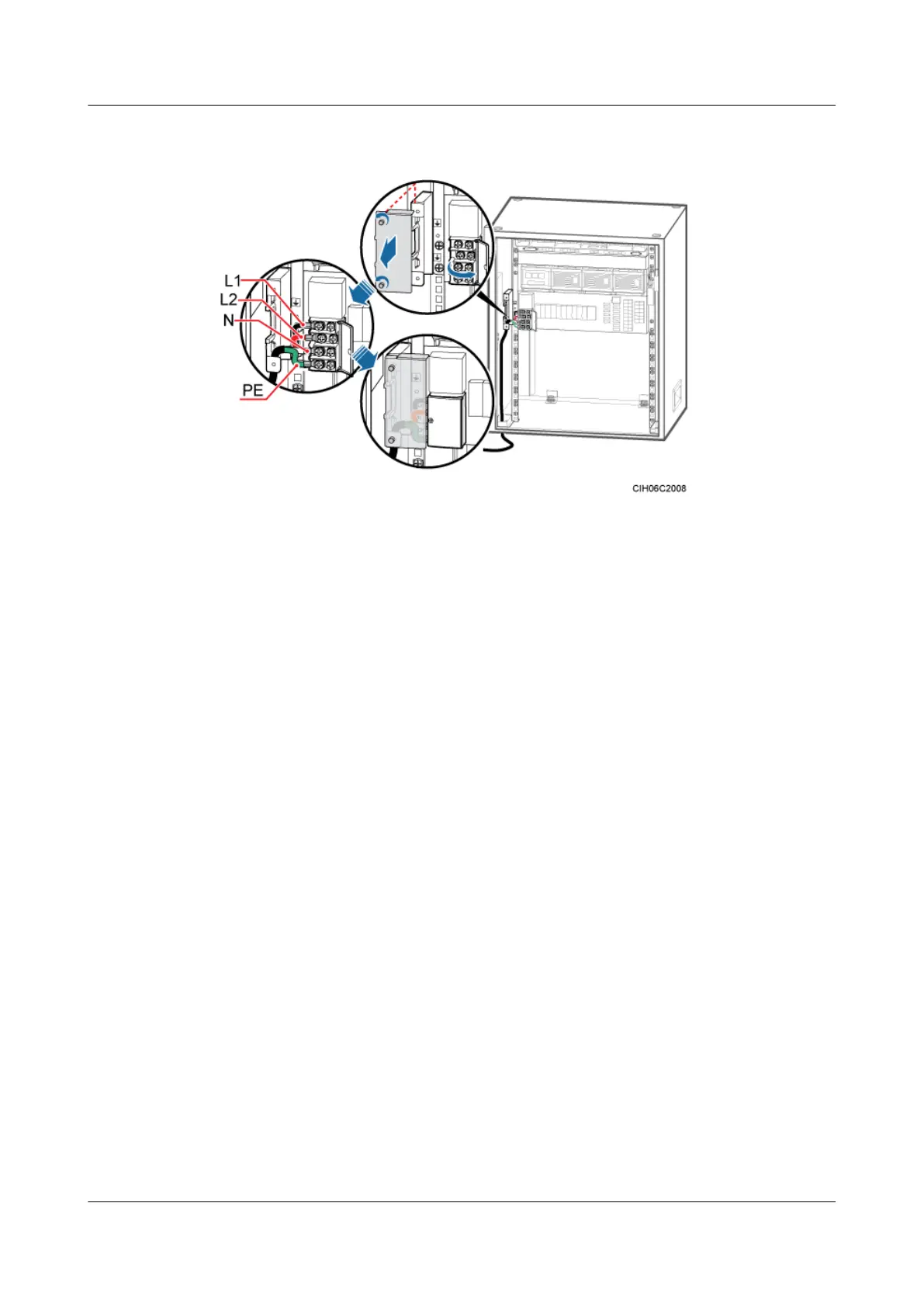

Figure 6-70 Installing a 110 V dual-live-wire input power cable for the APM30H on the EPS
subrack
Step 3 Route the cable by referring to 6.5.1 Cabling Requirements, and then use cable ties to bind the
cable.
Step 4 Label the installed cables by referring to Attaching a Sign Plate Label.
Step 5 Run each cable that leaves the cabinet in the PVC corrugated pipe, and then tie the pipe to the
cable hole in the cabinet.
Step 6 Waterproof the connector.
----End
Installing the Power Cable Between the APM30H and the TMC11H
The power cables between the APM30H and the TMC11H are the input power cable for the
TMC11H and power cable for the junction box in the TMC11H. The power cables are used to
feed power to the TMC11H and other equipment from the APM30H. The power cables between
the APM30H and the TMC11H are optional, which are delivered and used with the TMC11H.
Prerequisite
The tools, such as a Phillips screwdriver, a cable cutter, and a multi-purpose crimping tool, are
ready.
Context
Table 6-6 lists the power cables between the APM30H and the TMC11H.
DBS3900 (Ver.B)
Installation Guide
6 Outdoor Scenario with AC Power Supply (BBU Installed
in an APM30H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
75
