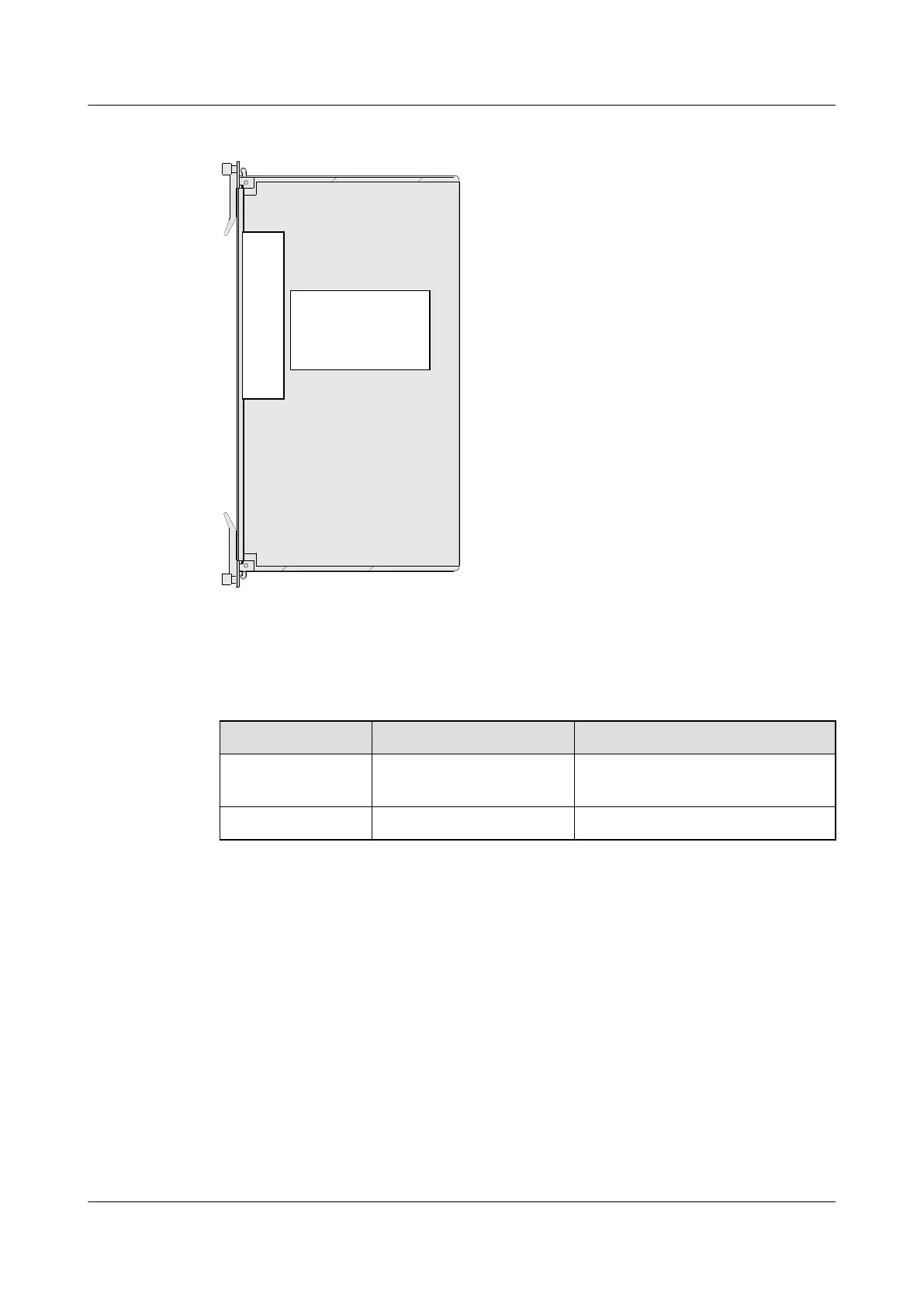

Figure 3-99 Position of the daughter board on the H802EDTB board
E
L
C
A
ETCB
Table 3-75 lists the daughter boards that are supported by the H802EDTB board.
Table 3-75 Daughter boards supported by the H802EDTB board
Daughter board
Port Function
H602ETCB HW port and MII port Processes the algorithm of VoIP
compression and decompression.
H802ELCA E1 port Supports the E1 port.
Pin Assignments
Table 3-76 describes the pin assignments of the E1 port on the front panel of the H802EDTB
board.
