Front Panel

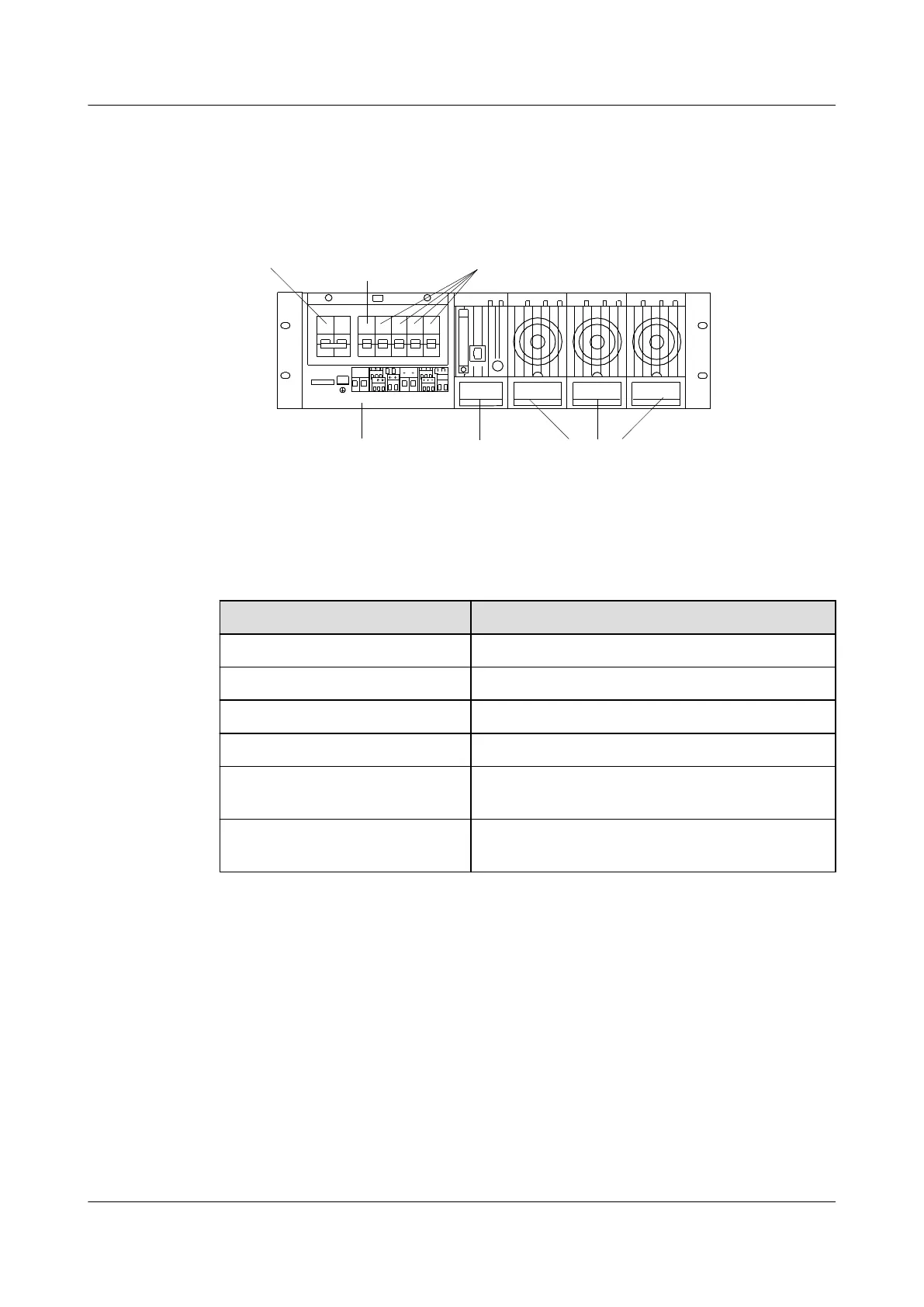

Figure 6-28 shows the front panel of the GEPS4845 power system.
Figure 6-28 Front panel of the GEPS4845 power system
AC INPUT
BATT
FAN-ALM RUNALM
RUNALM
COM
B
MS
PSM-B9
HRS1150-9000 HRS1150-9000HRS1150-9000
FAN-ALM RUNALM FAN-ALM RUNALM
LOAD2
LOAD3 LOAD4
LOAD1
AC-L AC-N
BATT.(-) LOAD(-) BATT.(+) LOAD(+)
B1 B2
+ +
Power supply unit Monitoring unit Rectifier unit
AC input switch
Battery
control switch
Output tributary switch
Table 6-30 describes the front panel of the GEPS4845 power system.
Table 6-30 Front panel of the GEPS4845 power system
Item
Description
Switch for AC input Used to control the AC input.
Switch for battery control Used to control the battery connection.
Output tributary switch Used to control the output loading.
Power supply unit Input and output terminal blocks.
Monitoring unit Used for environment monitoring. Only one unit can
be configured to the power system.
Rectifier unit Used to convert the AC to the DC. Up to three units
can be configured to the power system.
Input Terminal
Figure 6-29 shows the input terminals of the GEPS4845 power system.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
6 Electromechanical Device
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
943
