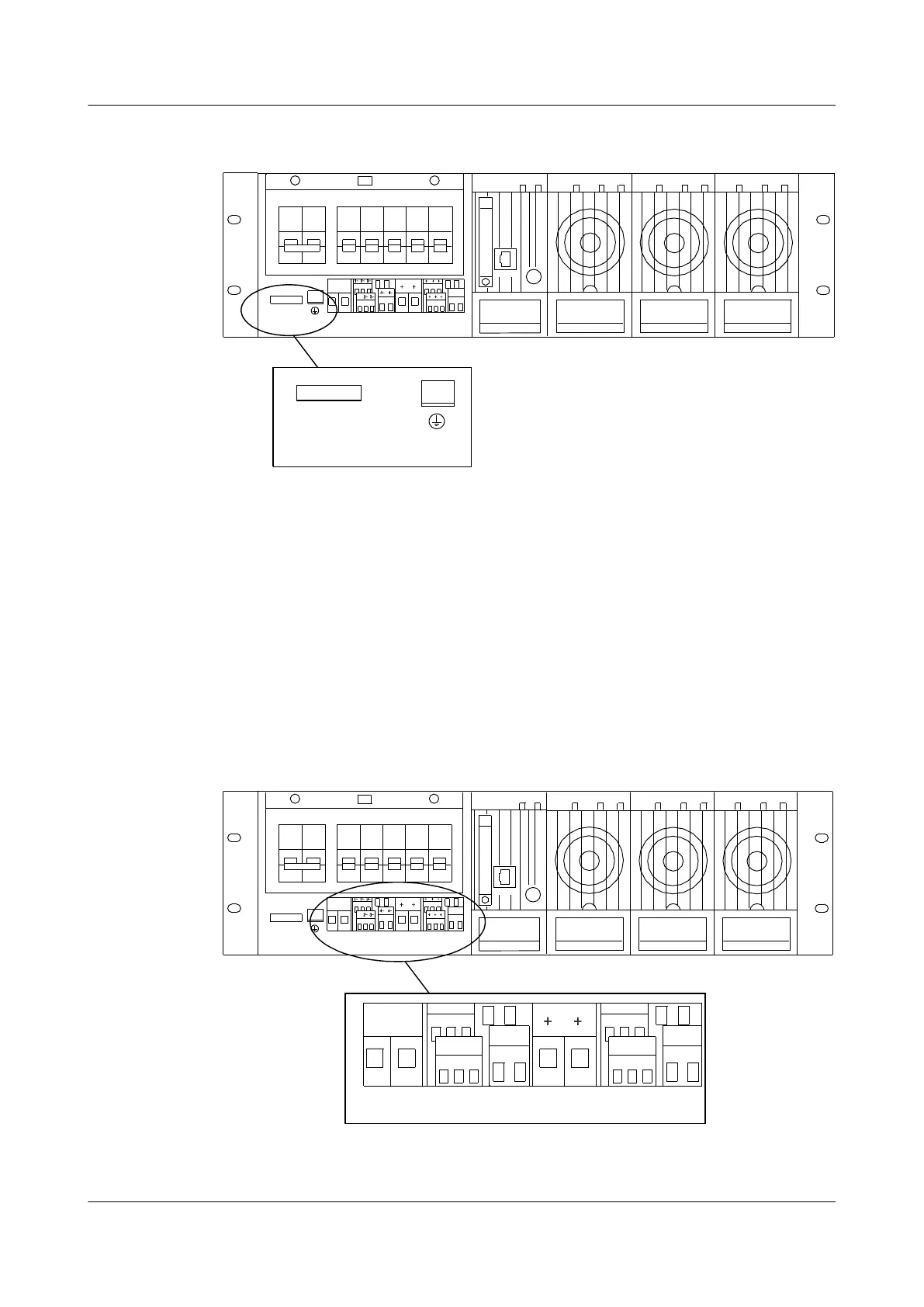

Figure 6-29 Input terminals of the GEPS4845 power system
AC INPUT
BA
TT
FAN-ALM RUNALM
RUNALM
COM
B
MS
PSM-B5
HRS850-9000C HRS850-9000CHRS850-9000C
FAN-ALM RUNALM FAN-ALM RUNALM
LOAD2
LOA
D3
LOAD
4
LOAD1
BATT.
(-)
LOAD
(-)
BATT.(
+)
LOAD(
+)
B
1
B
2
+ +
AC-L AC-N
AC-L AC-N
The GEPS4845 power system supports one 220/110 VAC input and the connection of the
power system is as follows:
l AC-L connects to line L of the AC power supply.
l AC-N connects to line N of the AC power supply.
l PGND connects to the ground cable.
Output Terminal
Figure 6-30 shows the output terminals of the GEPS4845 power system.
Figure 6-30 Output terminals of the GEPS4845 power system
AC INPUT
BA
TT
FAN-ALM RUNALM
RUNALM
COM
MS
PSM-B5
HRS850-9000C HRS850-9000CHRS850-9000C
FAN-ALM RUNALM FAN-ALM RUNALM
LOAD2
LOA
D3
LOAD
4
LOAD1
AC-L AC-N
B
BATT.
(-)
LOAD
(-)
BATT.(+
)
LOAD(+
)
B
1
B
2
+ +
+ + +
+ + +
+ +
4- 4-
2- 3-1-
B
2-
3-
BATT.(-) LOAD(-) BATT.(+) LOAD(+)
B1 B2
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
6 Electromechanical Device
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
944
