Huawei SUN2000-M3 User Manual

CA UTION
● Move the SUN2000 with care to prevent device damage and personal injury.
● Do not use the wiring terminals and ports at the bottom to support any weight
of the SUN2000.
● Place a foam pad or cardboard under the SUN2000 to protect the SUN2000
enclosure from damage.

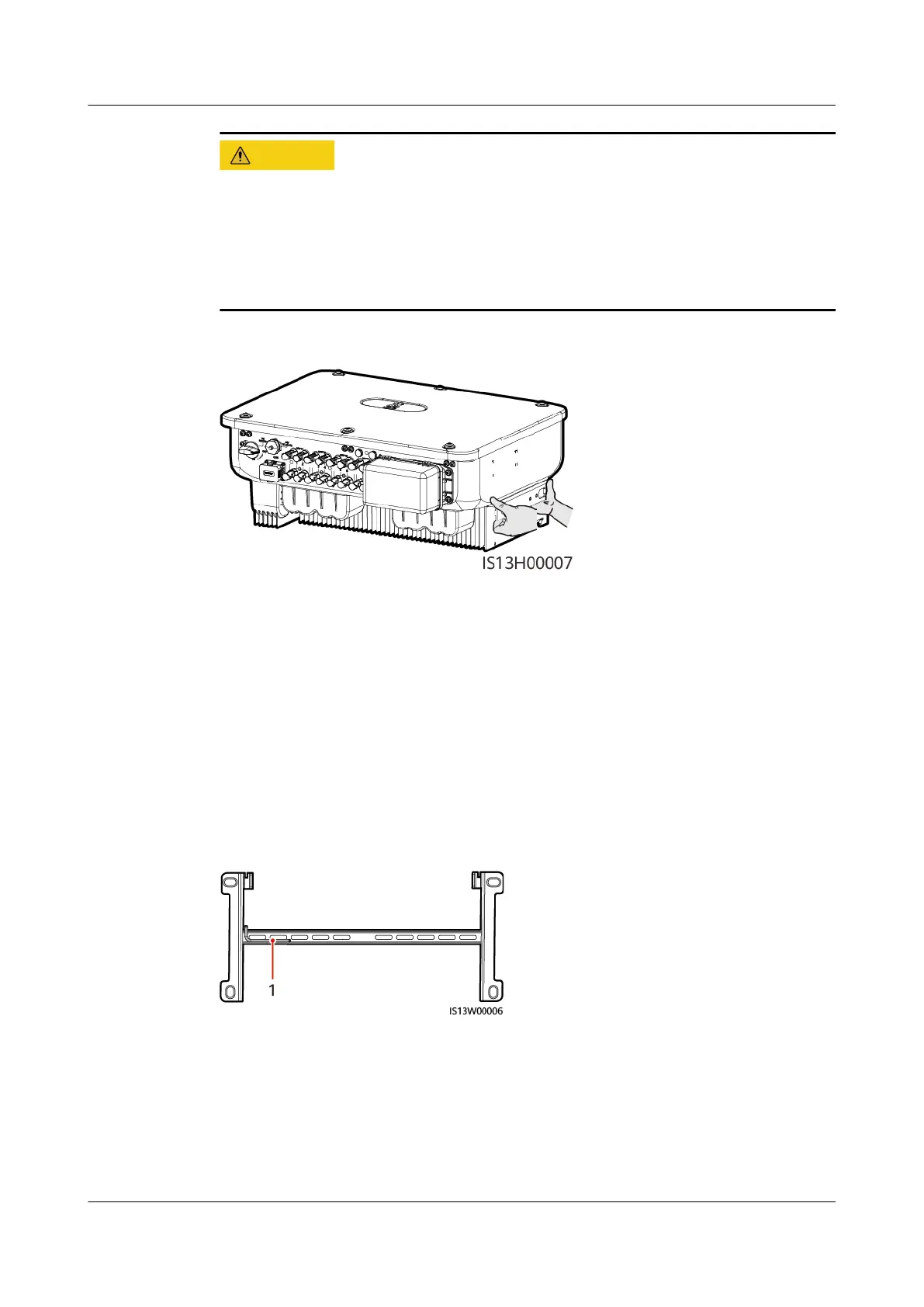

Figure 4-8 Moving the SUN2000
----End
4.5 Installing the Mounting Bracket
Installation Precautions
Before installing the mounting bracket, remove the security Torx wrench and set it
aside.
Figure 4-9 Position for binding the security Torx wrench
(1) Security Torx wrench
Figure 4-10 shows the dimensions of the mounting holes for the SUN2000.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 4 Installation
Issue 11 (2023-01-10) Copyright © Huawei Technologies Co., Ltd. 28

Huawei SUN2000-M3 Specifications

General

Type	String Inverter
Rated AC Grid Frequency	50 Hz / 60 Hz
DC Connection Type	MC4
Protection Degree	IP65
Cooling Method	Natural convection
Category	Inverter
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	≤ 3 %
Operating Temperature Range	-25°C to 60°C
Communication	RS485
Efficiency	98%
Protection Level	DC reverse polarity protection, AC overcurrent protection, AC short-circuit protection, Overvoltage protection, Insulation monitoring, Residual current monitoring unit, Arc fault detection
