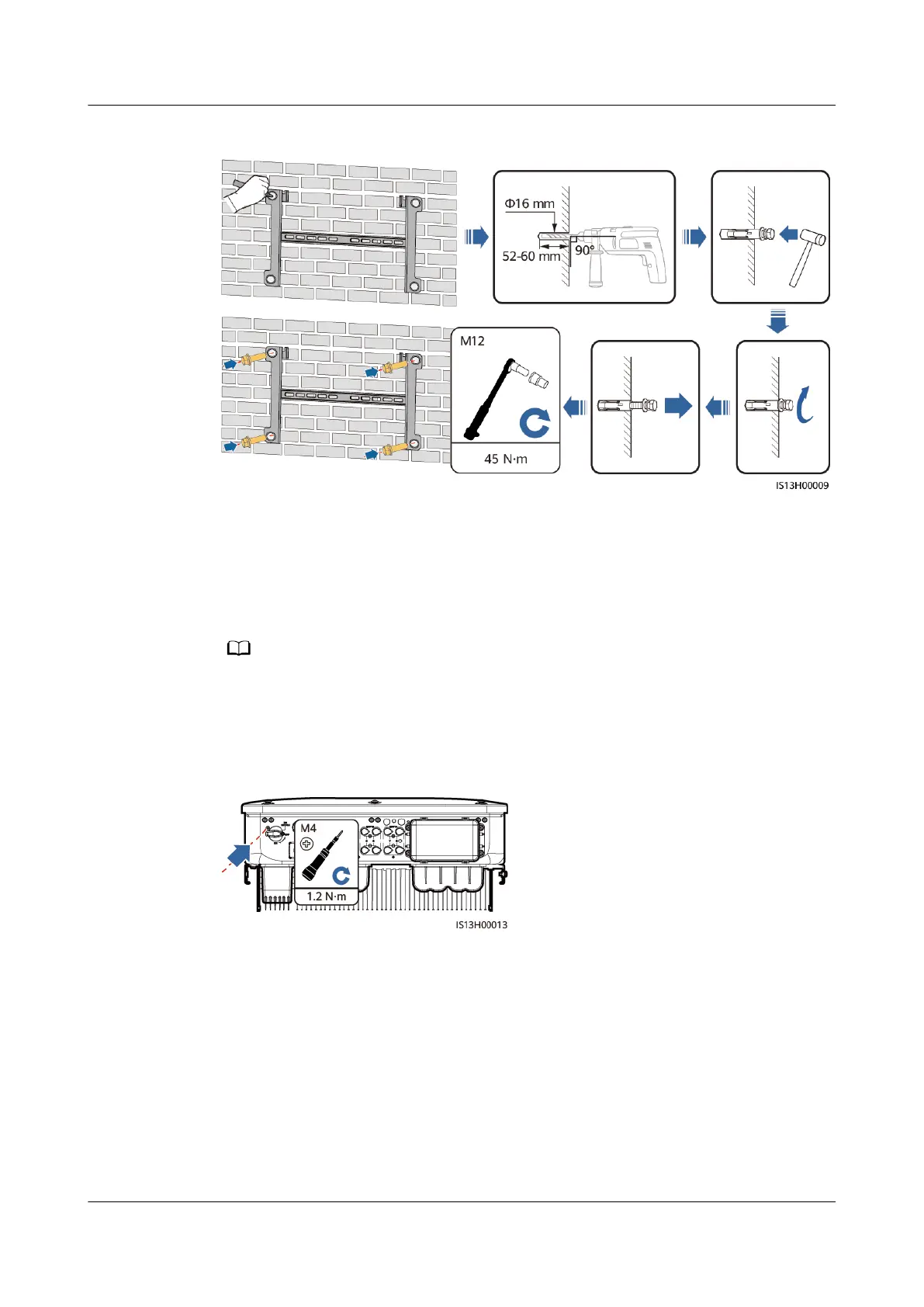

Figure 4-13 Installing expansion bolts
----End
4.6 Installing a SUN2000
Step 1 (Optional) Install the locking screw for the DC switch.
● The DC switch locking screw is used to lock the DC switch to prevent the switch from
rotating.
● For models used in Australia, install the DC switch locking screw according to local
standards. The DC switch locking screw is delivered with the SUN2000.
Figure 4-14 Installing the locking screw for the DC switch
Step 2 Install the SUN2000 onto the mounting bracket.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
