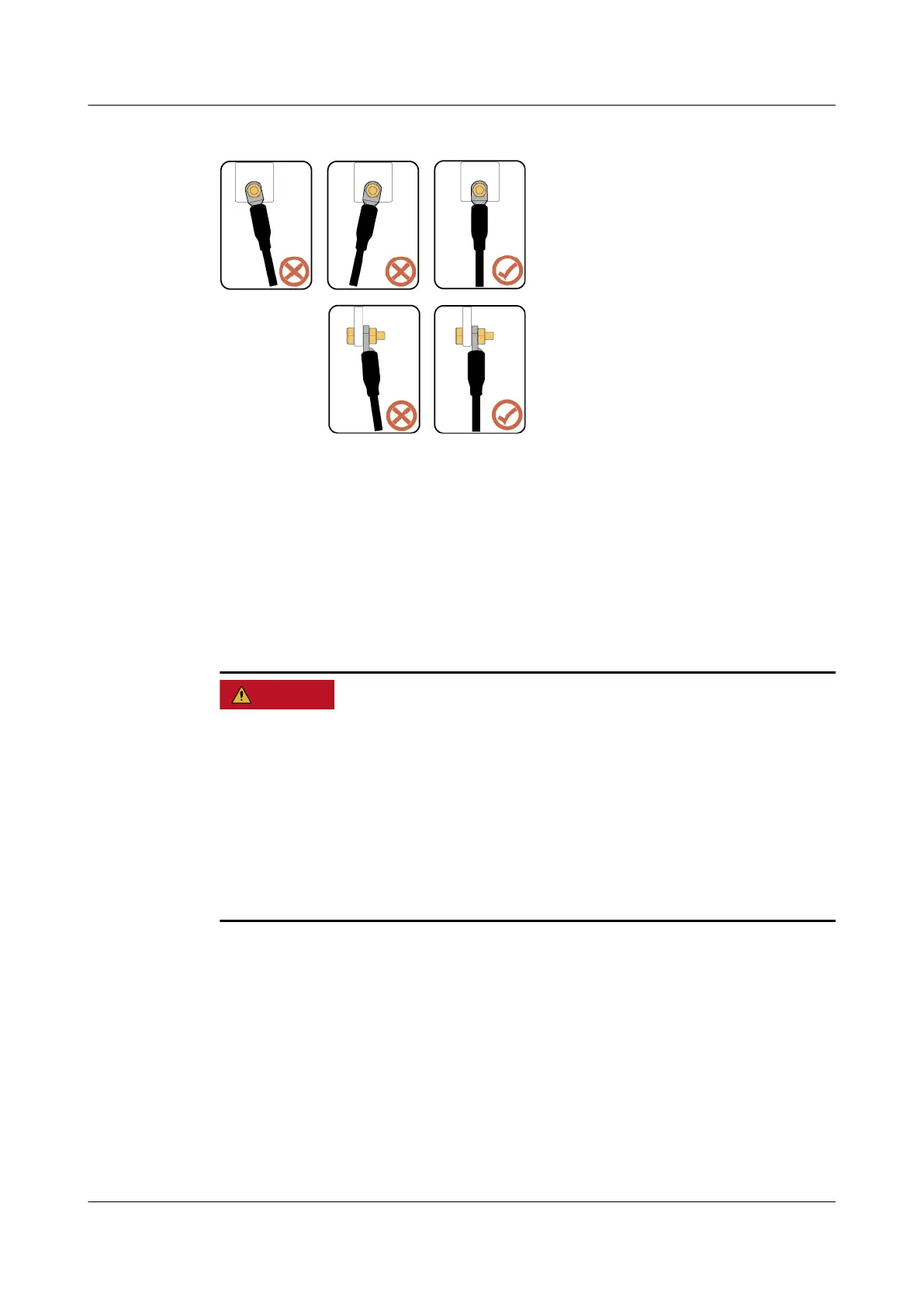

Figure 5-11 Wiring requirements
----End
5.5 Installing the DC Input Power Cable
5.5.1 Cable Connection Description
Precautions
D ANGER
Before connecting the DC input power cables, ensure that the DC voltage is
within the safe range (lower than 60 V DC) and that the DC switch on the
SUN2000 is OFF. Failing to do so may result in electric shocks.
When the SUN2000 is running, it is not allowed to work on the DC input power
cables, such as connecting or disconnecting a PV string or a PV module in a PV
string. Failing to do so may cause electric shocks.
If no PV string connects to a DC input terminal of the SUN2000, do not remove
the watertight cap from the DC input terminals. Otherwise, the IP rating of the
SUN2000 will be
aected.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 5 Electrical Connections
Issue 11 (2023-01-10) Copyright © Huawei Technologies Co., Ltd. 44
