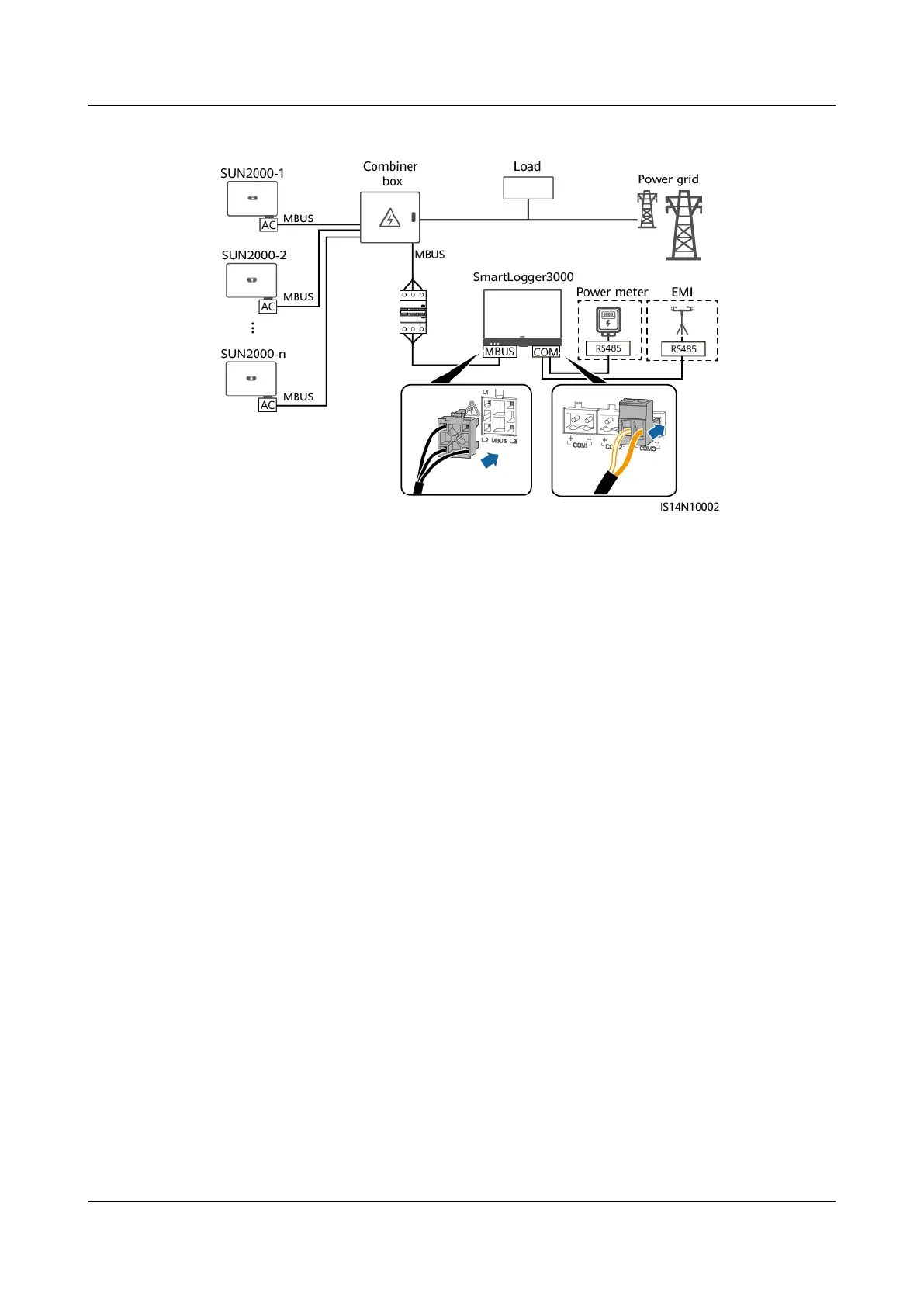

Figure 5-23 MBUS communication (commercial and industrial scenarios in China)
5.7.2 (Optional) Connecting the RS485 Communications Cable
to the SUN2000
Procedure
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 5 Electrical Connections
Issue 11 (2023-01-10) Copyright © Huawei Technologies Co., Ltd. 55
