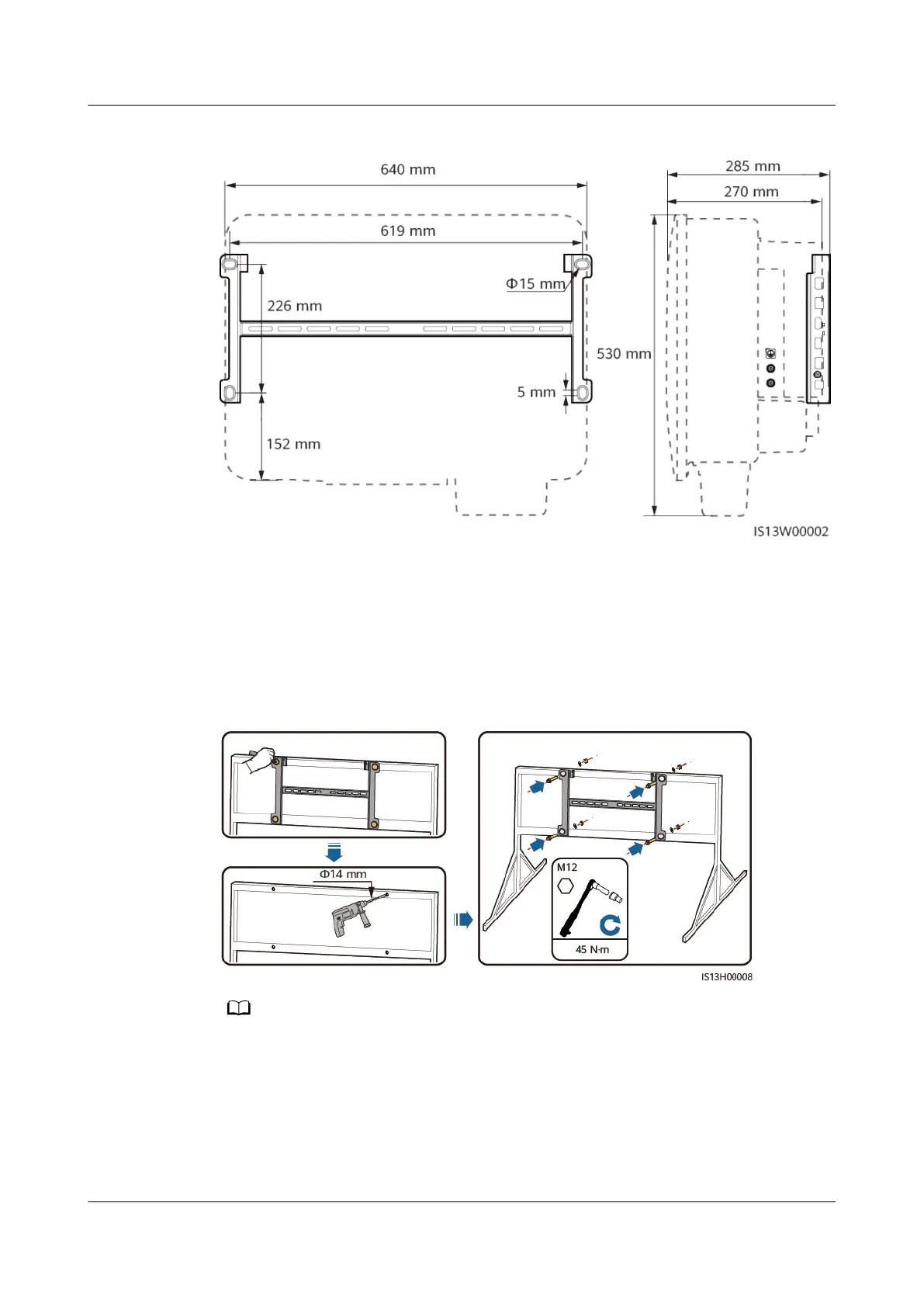

Figure 4-10 Mounting bracket dimensions
4.5.1 Support-mounted Installation
Procedure
Step 1 Secure the mounting bracket.
Figure 4-11 Securing the mounting bracket
NO TE
You are advised to apply anti-rust paint on the hole positions for protection.
----End
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 4 Installation
Issue 11 (2023-01-10) Copyright © Huawei Technologies Co., Ltd. 29
