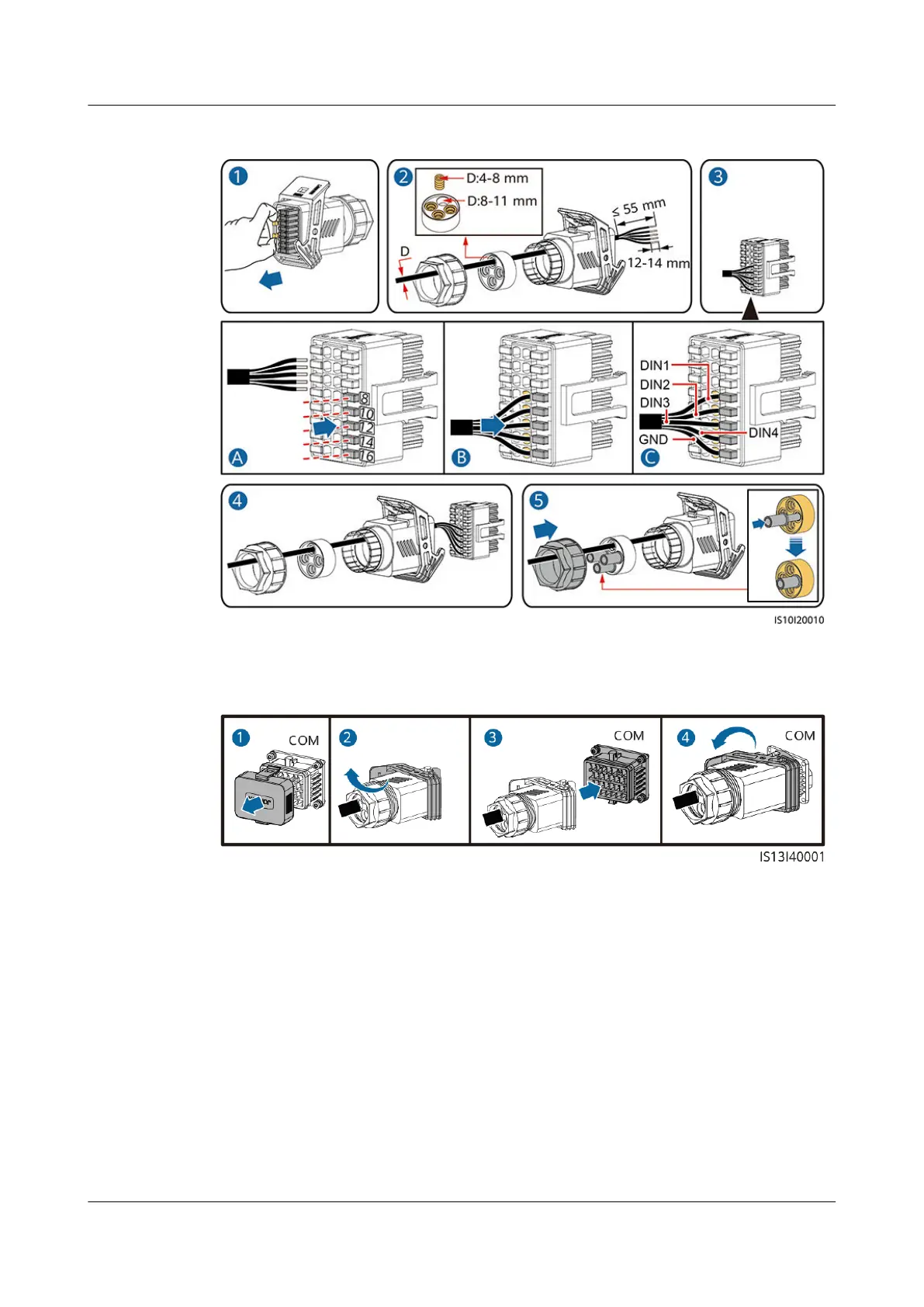

Figure 5-28 Connecting the cable
Step 2 Connect the signal cable connector to the COM port.
Figure 5-29 Securing the signal cable connector
----End
5.7.5 (Optional) Connecting the Rapid Shutdown Signal Cable
Procedure
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 5 Electrical Connections
Issue 11 (2023-01-10) Copyright © Huawei Technologies Co., Ltd. 58
