SUN2000L-(4.125KTL, 4.95KTL)-JP
User Manual
5 Electrical Connections
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
44

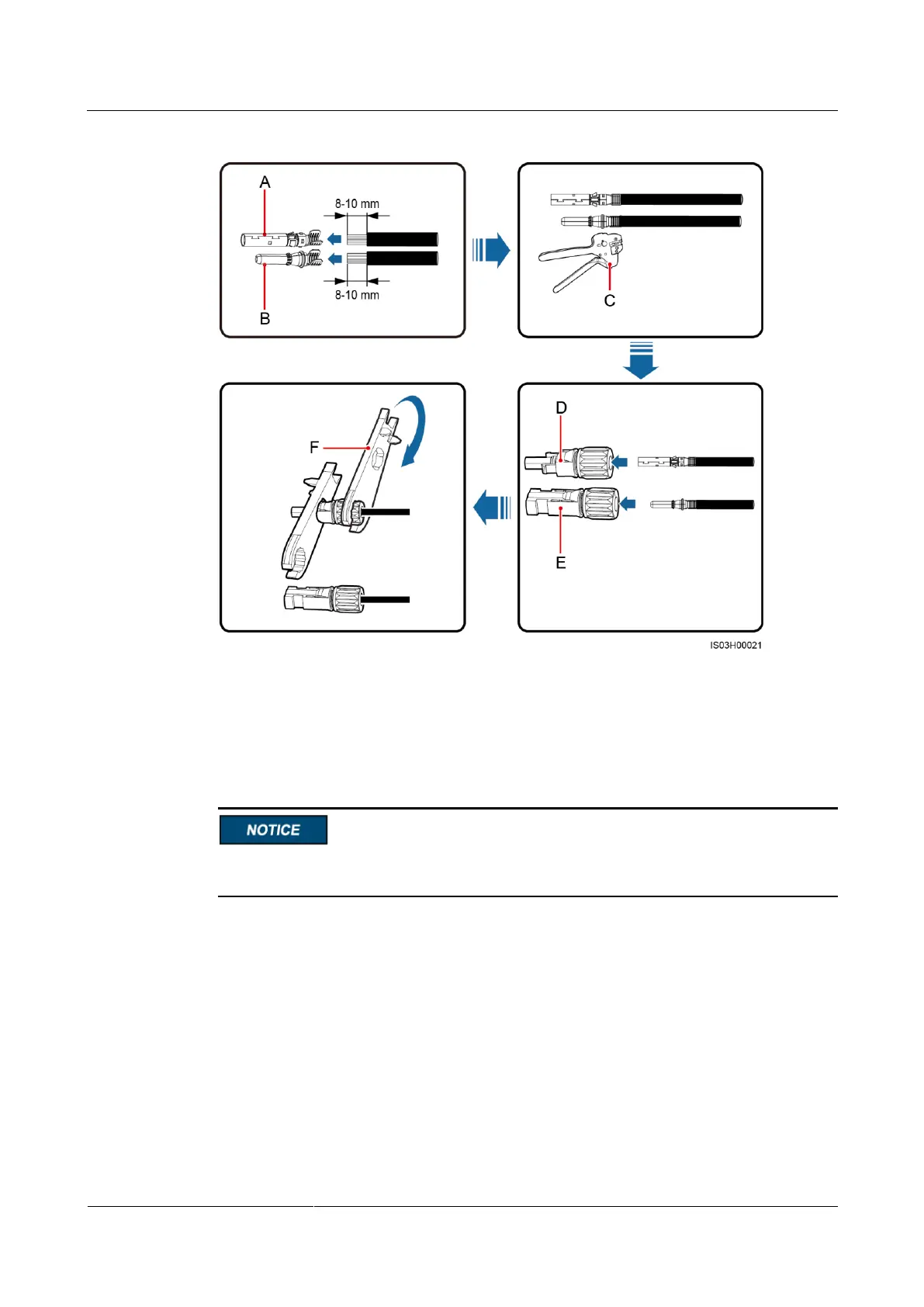

Figure 5-12 Assembling a DC connector (using metal stamping forming contacts)
(A) Positive metal terminal
(B) Negative metal terminal
(C) H4TC0002 crimping
tool
(D) Positive connector
(E) Negative connector
(F) H4TC0003 removal
wrench
Ensure that the core wires can be seen through the hole on the terminal both before and after
the positive and negative metal terminals are crimped.
