If any page is blank or a menu cannot be accessed after you log in to the WebUI, clear the
cache, refresh the page, or log in again.
Step 3 Log in as Advanced User. On the Settings tab page, choose Comm. Param. > Ethernet to
set Ethernet parameters.

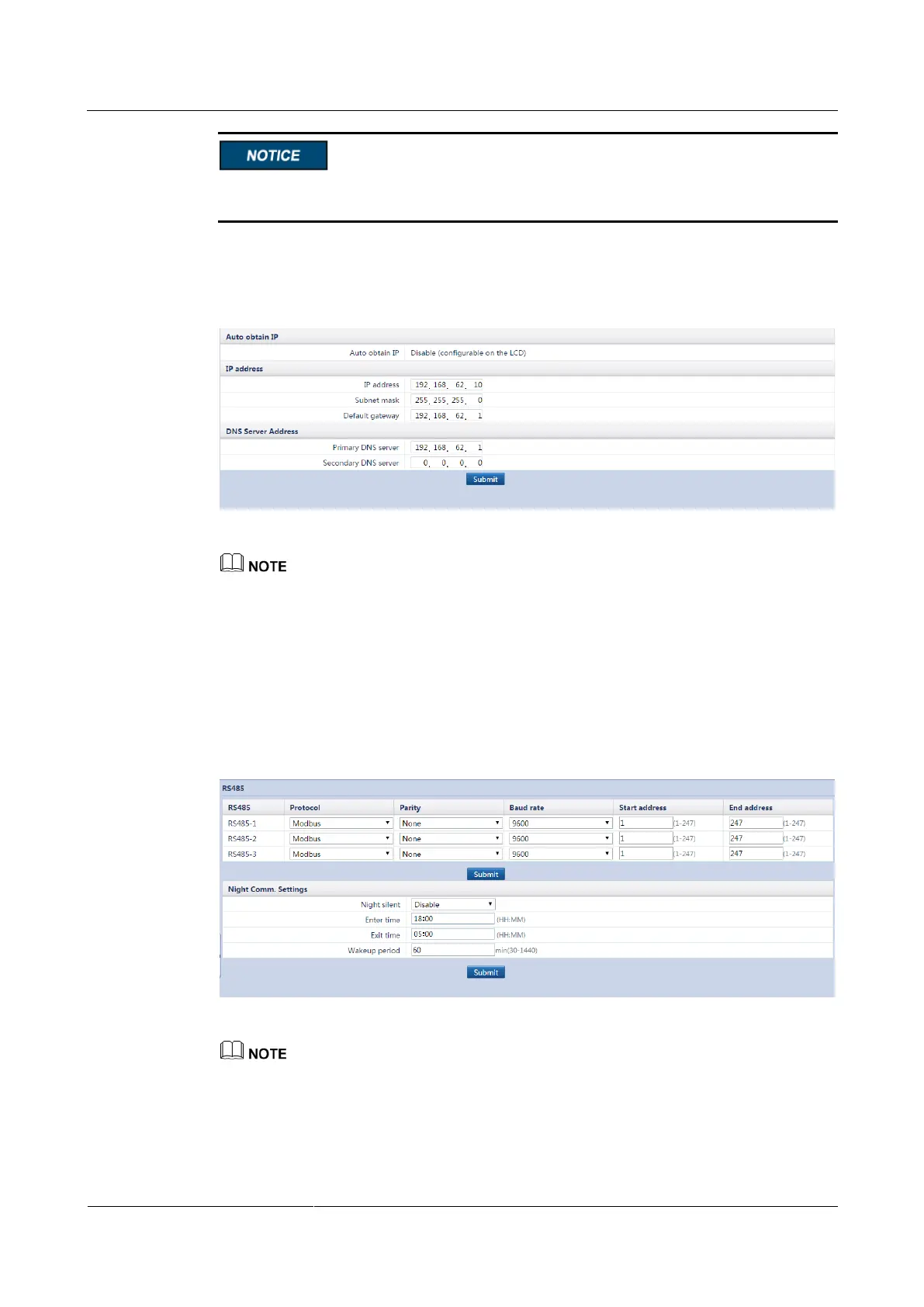

Figure 6-2 Setting Ethernet parameters

The SmartLogger1000 IP address must be in the same network segment as the router IP address.

Set Subnet mask to 255.255.255.0.

Set Default gateway to the router IP address.

Set DNS Server Address to the router IP address usually or to an address obtained from the network
carrier.
Step 4 Log in as Advanced User. On the Settings tab page, choose Comm. Param. > RS485 to set
RS485 parameters.
Figure 6-3 Setting RS485 parameters

RS485-1–RS485-3 respectively correspond to communications ports COM1–COM3 on the
SmartLogger1000.

The values of Protocol, Parity, and Baud rate for the devices connecting to the same
communications port must be consistent.
Step 5 Connect the SmartLogger1000 to the SUN2000L.

Huawei SUN2000L Series Specifications

General

Max. DC Voltage	600 V
Max. Efficiency	98.6%
Cooling	Natural Convection
Protection Degree	IP65
Power Output Range	2kW - 5kW
Max. AC Power	5, 500 VA
Rated AC Voltage	220 V / 230 V
European Efficiency	98.2%
Operating Temperature Range	-25°C to +60°C
Weight	10.6 kg
Communication	RS485
