Humminbird Network Setup

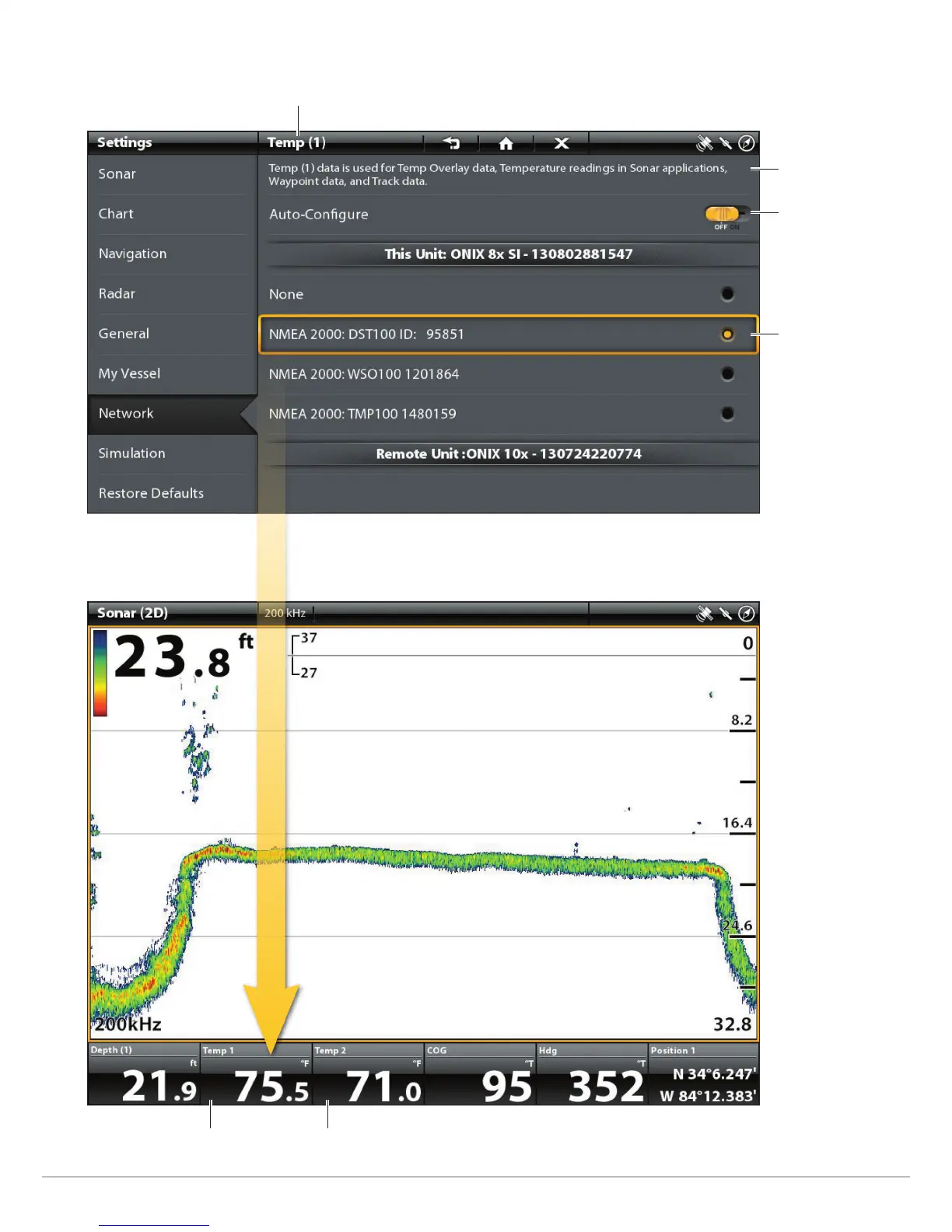

Manually Selecting a Source for Temp (1)
When Auto-Configure
is turned off, you can
manually select a source.
selected source
assigned to Temp (1)
Temp (1) is selected
information about
the selected source
The Temp 1 digital readout data is
provided by the Temp (1) source.
The Temp 2 digital readout data is
provided by the Temp (2) source.
The sources you select will provide the data for the related digital readouts
and more, depending on your selection. In the illustration above, see
Information about the Selected Source.

Humminbird ONIX Specifications

General

Networking	Ethernet
Waterproof Rating	IPX7
Waypoints	3000
Power Output	500W (RMS)
Frequency	50/83/200 kHz
GPS Receiver	Internal
